Главная
›
Mercedes
›
BUS
›
O 404
›
618.035
›
55 REFRIGERANT COMPRESSOR
›
001 COMPRESSOR IL.1
Mercedes A0239972448 - Уплотнит. кольцо
O 404 618.035

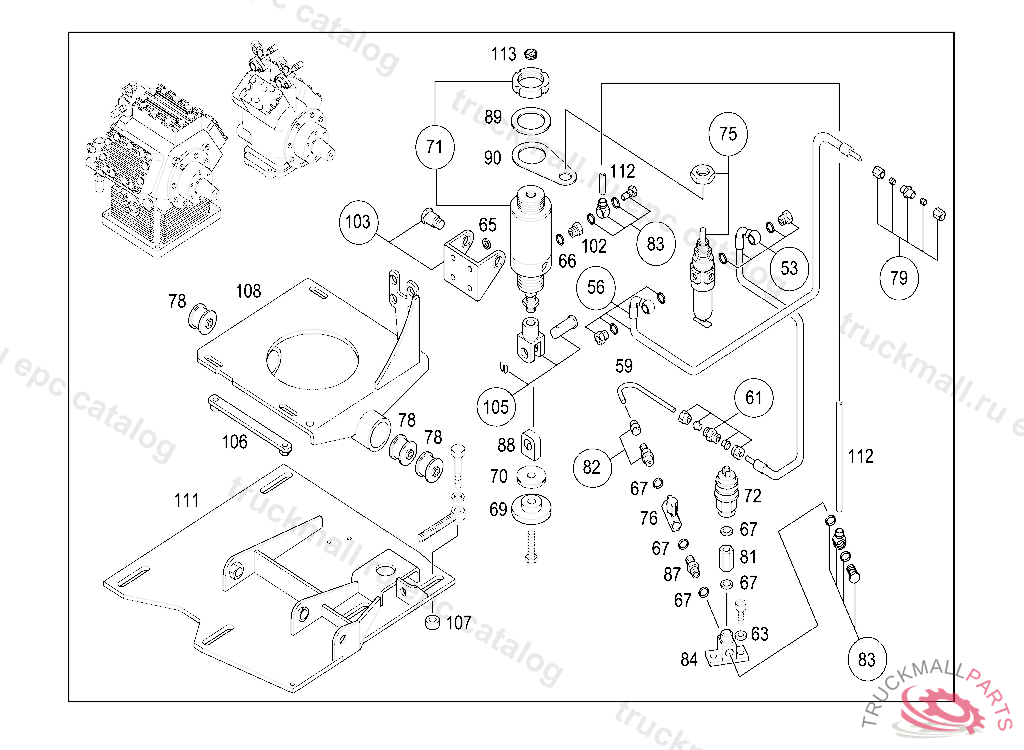

55 REFRIGERANT COMPRESSOR - 001 COMPRESSOR IL.1
Поз.
Артикул
Описание
53
A0039971552
HOSE400MM
56
A0039971652
HOSE580MM
59
A0001340005
PIPE
61
A0008320859
FITTING
63
A0009945210
LOCK
65
A0001310773
LOCKING DISK. LOCK
66
A0008321099
RING
67
A0008320999
RING
69
A0009871339
RUBBER BUFFER
70
A0005500286
RUBBER MOUNTING
71
A0001300007
VIBRATION ABSORBER
72
A0001315404
OIL-BREAK SWITCH PRESSURE VALVE
75
A0001300103
AIR CLEANER
76
A0049977536
SHUT-OFF COCK
78
A0005500386
RUBBER MOUNTING
79
A0008320759
FITTING
81
A0009970563
SLEEVE
82
A0008320659
FITTING
83
A0008320559
FITTING
84
A0008323458
T-FITTING
87
A0009976175
PIPE NIPPLE
88
A0008304914
BRACKET
89
A0019905982
THREADED UNION
90
A0008359414
BRACKET
102
A0009976875
THREADED UNION3/8"-1/4"
103
A0008113340
BEARING
103
A0008101112
BEARING
105
A0008304814
BRACKET
106
A0008330228
PART NAME MISSING
106
A0005520039
SUPPORTING PLATE
107
A0019905882
SPACER WASHER
108
A0008680270
ROCKER
108
A0008680370
ROCKER
111
A0008300388
CONSOLE
112
A0008313188
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
113
A0018356847
FILTER
999
A0009902264
NIPPLE
999
A0019906267
SEAL CONE
999
A0019908271
ELBOW FITTING
999
A0019955701
CLAMP VALVE TO BRACKET,075710
999
A0019955801
CLAMP VALVE TO BRACKET,075710
999
A0019976571
FITTING
999
A0239972048
SEAL RING
999
A0239972448
SEAL RING , Replaced By: A0239972048
