Mercedes A2109900020 - БОЛТ М8

300 CE USA 124.051 FROM 09/89

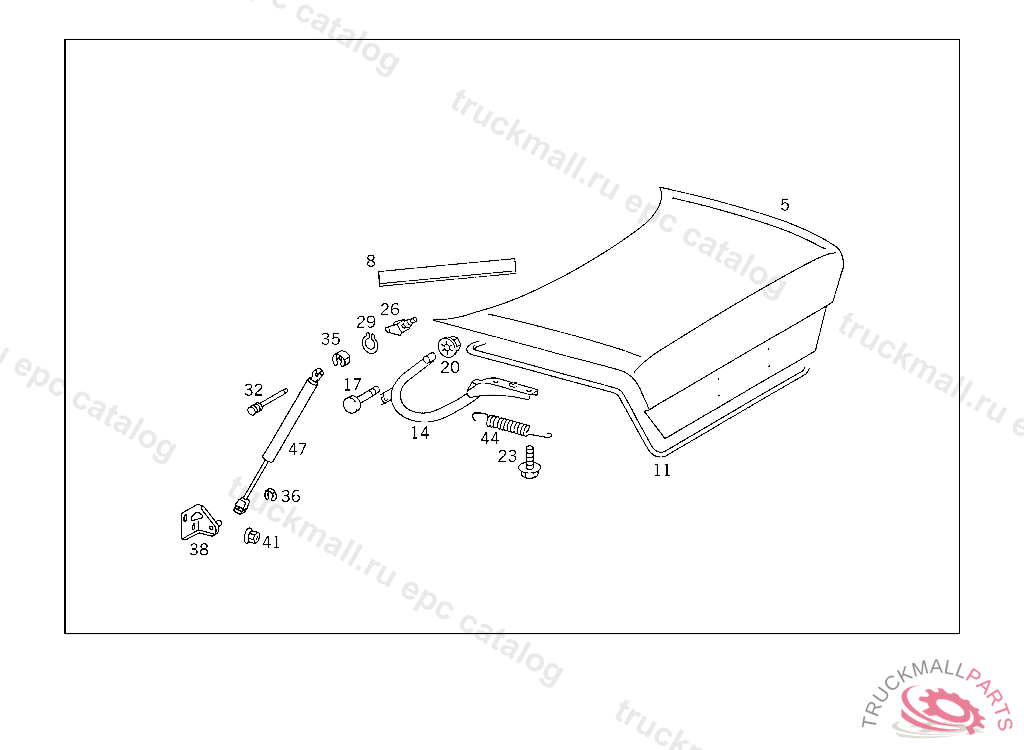

75 REAR LID - 015 REAR LID

Поз.
Артикул
Описание
5
A1247502375
REAR LID STEEL,LESS HOLES FOR TYPE DESIGNATION
8
A1407570097
PAD BETWEEN STIFFENING AND PANELLING 207 MM, TO BE ADAPTED DURING ASSEMBLY
11
A1247500298
SEAL REAR LID
14
A1247500928
HINGE LEVER REAR LID,LEFT
14
A1247501028
HINGE LEVER REAR LID,RIGHT
17
A2109900020
SCREW HINGE LEVER TO MOUNTING
17
A1249900220
SCREW , Replaced By: A2109900020
20
N913012008001
NUT HINGE LEVER TO MOUNTING
23
N914126006001
SCREW , Replaced By: N910105006002
23
N910105006002
HEXAGON HEAD BOLT
26
A2027500126
STOP HINGE LEVER BEARING
44
A1247570429
SPRING REAR LID
