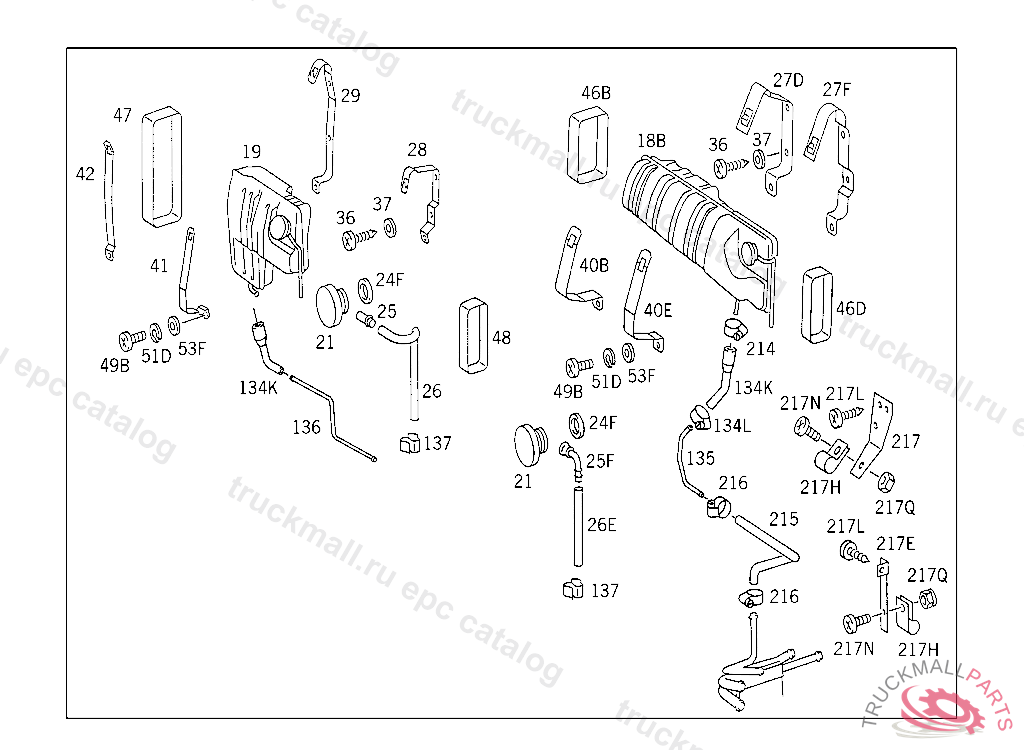

Поз.
Артикул
Описание
19
TANK ,5 129372, Replaced By: A6205000349, +001A6205012882, +001N916017020000
19
TANK CAB,FRONT,5 129373
21
RADIATOR CAP
25
DRAIN PIPE
26
HOSE OVERFLOW
26
HOSE OVERFLOW
28
BRACKET EXPANSION TANK,LEFT
29
BRACKET EXPANSION TANK,RIGHT
36
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
37
WASHER COMPRESSED AIR LINE TO BRACKET
37
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
41
STRAP EXPANSION TANK,LEFT
42
STRAP EXPANSION TANK,RIGHT
47
SHIM EXPANSION TANK,LEFT
48
SHIM EXPANSION TANK,RIGHT
136
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
137
CLIP CABLE HARNESS TO ROOF RAIL
214
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
216
CLAMP , Replaced By: N916017011001
216
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
999
DRAIN PIPE EXPANSION TANK
999
GASKET O.D., 52 MM
999
GASKET O.D., 37 MM
999
SCREW PLUG , Replaced By: N007604014101
999
HOSE , Replaced By: A0219977682
999
HOSE , Replaced By: A0149975782
999
HOSE , Replaced By: A0139978682
999
HOSE
999
CLAMP , Replaced By: N916016008200
999
CLAMP , Replaced By: A3604300143
999
CLAMP FEED LINE TO THERMOSTAT
999
BRACKET HEATING PIPE TO FAN SHROUD BRACKET
999
BRACKET OI DIPSTICK GUIDE TUBE
999
SCREW EXHAUST PIPE TO BRACKET
999
LINE FROM WATER PUMP TO EXPANSION TANK
999
LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6205001672
999
FLANGE DE-AERATION,5 301948
999
LINE (HEATING LINE),FROM ENGINE TO HEATER
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
999
CONNECTOR AT WATER PUMP
999
BRACKET DE-AERATION LINE TO CAB
999
HOSE , Replaced By: A6585010082
999
HOSE
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
999
RUBBER MOUNTING , Replaced By: A6205040112
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
999
BRACKET HEATING PIPE
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
999
HOSE FROM WATER PUMP TO EXPANSION TANK
999
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
999
SCREW CLAMP MOUNTING M 6X16
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW COVER PLATE TO BRACKET
999
SCREW COVER PLATE TO BRACKET
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW , Replaced By: A4609900601
999
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
999
SEAL RING FUEL LINE TO FEED PUMP
999
SCREW PLUG WATER DRAIN
999
SCREW , Replaced By: N000000001146
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
999
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
CLAMP ,K 147121, Replaced By: N000000000319
999
CLAMP , Replaced By: N000000000667
999
GASKET HEATING PIPE TO ENGINE
