Поз.
Артикул
Описание

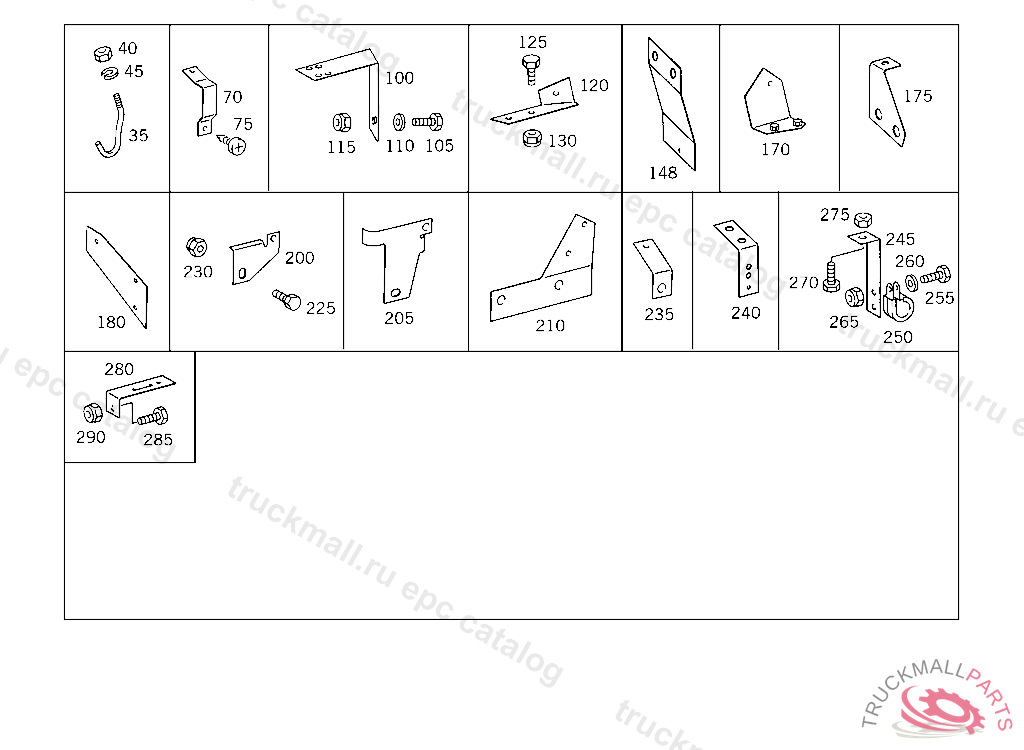

35
BRACKET ANGLE DRIVE
40
NUT BALL PIVOT TO LEVER
45
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
70
BRACKET FLEXIBLE SHAFT TO CAB FIRE WALL,4 8958655 011459
70
BRACKET FLEXIBLE SHAFT TO CAB FIRE WALL,4 8958655 011459
75
SHEET METAL SCREW BRACKET TO FLOOR PLATE
75
SHEET METAL SCREW BRACKET TO FLOOR PLATE
75
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
100
BRACKET FLEXIBLE SHAFT TO FRAME SIDE MEMBER
100
BRACKET FLEXIBLE SHAFT TO FRAME SIDE MEMBER
105
SCREW CONSOLE TO SIDE MEMBER
105
SCREW CONSOLE TO SIDE MEMBER
110
WASHER
115
NUT SUPPORT TO SIDE MEMBER
115
NUT SUPPORT TO SIDE MEMBER
120
BRACKET FLEXIBLE SHAFT TO BUMPER SUPPORT
125
SCREW , Replaced By: N304017008021
125
SCREW PIPE CLAMP
130
NUT , Replaced By: N913004008001
130
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
148
BRACKET FLEXIBLE SHAFT TO FRAME SIDE MEMBER
170
BRACKET FLEXIBLE SHAFT TO BUMPER SUPPORT
175
BRACKET FLEXIBLE SHAFT TO SUPPORT
180
BRACKET FLEXIBLE SHAFT TO FRAME
200
BRACKET FLEXIBLE SHAFT TO FRAME SIDE MEMBER,4 855703
205
BRACKET FLEXIBLE SHAFT TO FRAME SIDE MEMBER,4 855703
210
BRACKET FLEXIBLE SHAFT TO FRAME SIDE MEMBER,4 855703
225
SCREW END PIECE TO EXHAUST PIPE M 10X25
230
NUT , Replaced By: N910113010000
230
NUT STRAP TO BRACKET
235
BRACKET , Replaced By: A3095421340
235
BRACKET FLEXIBLE SHAFT TO ENGINE MOUNTING,4 855703
240
BRACKET FLEXIBLE SHAFT TO ENGINE MOUNTING,4 855703
245
BRACKET EXHAUST PIPE SUSPENSION
250
CLAMP BRAKE HOSE BRACKET
255
SCREW COVER PLATE TO BRACKET
260
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
260
WASHER COMPRESSED AIR LINE TO BRACKET
265
NUT , Replaced By: N913004006001
265
NUT PUMP TO BRACKET
270
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
275
NUT BRACKET TO SUPPORT AND TO END PIECE
280
BRACKET , Replaced By: A3184280240
280
BRACKET LINE MOUNTING
285
SCREW BRACKET TO CROSS CONNECTION STRUT
285
SCREW , Replaced By: N304017008034
290
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
290
NUT , Replaced By: N913004008001
999
CONNECTOR ANGLE DRIVE
999
COUPLER ANGLE DRIVE
999
FLEXIBLE SHAFT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 5 296454, Replaced By: A0055420307
999
FLEXIBLE SHAFT , Replaced By: A0055425007
999
FLEXIBLE SHAFT4250 MM
999
FLEXIBLE SHAFT4030 MM
999
FLEXIBLE SHAFT3700 MM
999
FLEXIBLE SHAFT3770 MM
999
FLEXIBLE SHAFT4570 MM
999
FLEXIBLE SHAFT4630 MM
999
FLEXIBLE SHAFT , Replaced By: A0045424307
999
ADAPTER SPEEDOMETER,4 895865
999
ELECTRIC CABLE FROM TACHOGRAPH TO PULSE TRANSMITTER
999
BRACKET WIRE CABLE TO RADIATOR MOUNTING CONSOLE
999
COVER CABLE TO BRACKET
999
CLAMPING PIECE CABLE TO BRACKET
