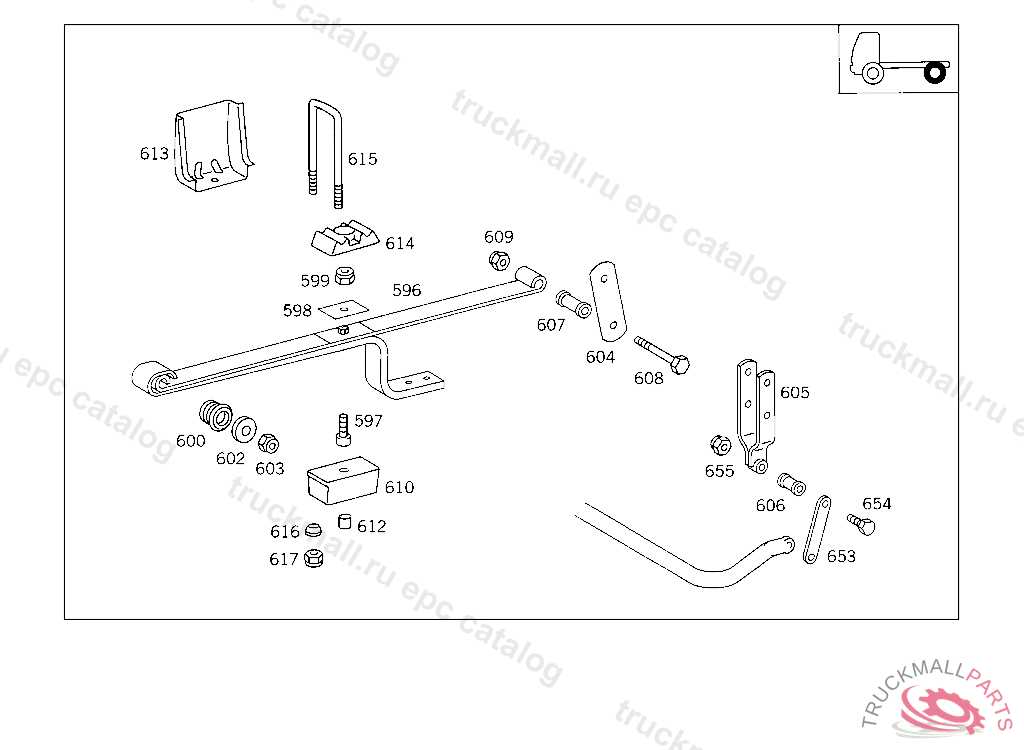

Поз.
Артикул
Описание
596
PARABOLIC CONTROL ARM , PLAESE REFER TO NOTE IN FDOK ONLY REPLACEABLE BY PAIRS, Replaced By: A6743500706
596
PARABOLIC CONTROL ARM
596
PARABOLIC CONTROL ARM , PLAESE REFER TO NOTE IN FDOK ONLY REPLACEABLE BY PAIRS, Replaced By: A6753500706
596
PARABOLIC CONTROL ARM ,5 407667
597
SPRING BOLT
597
SPRING BOLT
597
SPRING BOLT
598
SHIM , Replaced By: A9703210184
598
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
598
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
598
SHIM , Replaced By: A9703210184
598
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
599
NUT , Replaced By: N910113012005
599
HEXAGON NUT. NUT SPRING BOLT
600
BUSHING SPRING EYE,FRONT
600
BUSHING SPRING EYE,FRONT AND REAR
602
THRUST WASHER REAR SPRING TO REAR SPRING FRONT BRACKET
603
NUT , Replaced By: N910113018004
603
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
604
SHACKLE SPRING SHACKLE TO SPRING REAR BRACKET
605
SHACKLE , Replaced By: A6743200063, +001A3183200073
605
SHACKLE CONTROL ARM TO REAR SPRING REAR BRACKET,5 304390
605
SHACKLE (SPRING SHACKLE)
606
BEARING SHACKLE TO FRAME
607
BUSHING REAR SPRING TO REAR SPRING REAR BRACKET
608
SCREW CONTROL ARM TO REAR SPRING REAR BRACKET
609
NUT , Replaced By: N910113018004
609
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
610
SHIM CONTROL ARM TO REAR AXLE
610
SHIM REAR SPRING
612
DOWEL PIN (CENTERING CONE),5 361886
612
DOWEL PIN , Replaced By: A6749910060
613
BRACKET CONTROL ARM TO REAR AXLE, DISCONTINUED,PART IS NO LONGER REQUIRED
614
PLATE REAR SPRING TO REAR AXLE
615
U-BOLT REAR SPRING TO REAR AXLE 340 MM
615
U-BOLT FRONT SPRINGS TO FRONT AXLE 280 MM
615
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT 300MM
616
SPHERICAL WASHER FRONT SPRINGS TO FRONT AXLE,5 468450
617
NUT COMBINATION CYLINDER TO BEARING BRACKET
617
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
653
SHACKLE TORSION BAR MOUNTING
653
SHACKLE TORSION BAR MOUNTING
653
SHACKLE , Replaced By: A6743200363
654
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
654
SCREW , Replaced By: N000960016206
655
NUT COMBINATION CYLINDER TO BEARING BRACKET
655
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
999
SPACER RINGTO 673 323 00 00, 32X18X5 MM
999
SPACER TUBE TOP TO 005 326 55 00,5 711072
999
BOOT
999
VALVE (CHANGE-OVER VALVE) AUTOMATIC LOAD-DEPENDING BRAKE, 415 5 014668 416 5 000515 417 4 972023
999
REPAIR KIT 3/2-WAY SOLENOID VALVE
999
REPAIR KIT 3/2-WAY VALVE WABCO
999
RUBBER BUFFER AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE, 415 5 014668 416 5 000515 417 4 972023
999
BRACKET AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE,4 602075
999
BRACKET AIR SPRING VALVE
999
BRACKET AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE, 415 5 014668 416 5 000515 417 4 972023
999
GUIDE SIGN TRAILING AXLE LIFT
999
LOCK PLATE VALVE TO BRACKET
999
SCREW , Replaced By: N304017008027
999
SEAL RING LINE CONNECTION
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
SCREW PLUGROCKINGER,TYP 59 U150
999
NUT , Replaced By: N080705026003
999
NUT 3/2-WAY VALVE TO CAB,4 685151
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
PULL ROD REAR AXLE SELF-LEVELLING DEVICE
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
