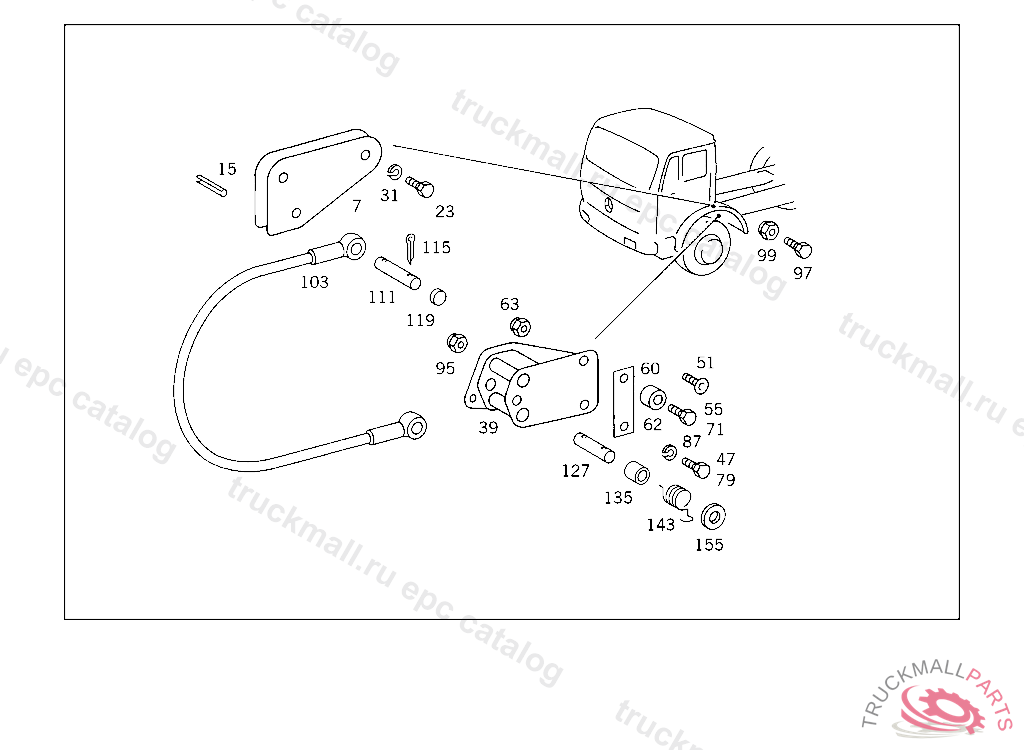

Поз.
Артикул
Описание
7
MOUNTING RETAINING ROPE
15
CLAMPING SLEEVE MOUNTING
23
SCREW BRACKET TO SIDE MEMBER
31
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
39
MOUNTING RETAINING ROPE
39
MOUNTING RETAINING ROPE
39
MOUNTING RETAINING ROPE
39
MOUNTING RETAINING ROPE
47
SCREW BEARING BRACKET TO FRAME M 14X125
47
SCREW BEARING BRACKET TO FRAME M 14X125
47
SCREW REAR CROSS MEMBER TO FRAME M 14X40
47
SCREW REAR CROSS MEMBER TO FRAME M 14X40
47
SCREW COVER PLATE TO FRAME
47
SCREW , Replaced By: N308676014013
47
SCREW ROD TO TRANSFER CASE M 14X65
51
SCREW BEARING BRACKET TO FRAME M 14X50,5 136790
55
SCREW , Replaced By: N308676014012
55
SCREW SUPPORT TO SIDE MEMBER M 14X45
55
SCREW SUPPORT TO SIDE MEMBER M 14X45
55
SCREW SUPPORT TO SIDE MEMBER M 14X45
60
BASE BEARING BRACKET TO FRAME
62
SPACER TUBE SHOCK ABSORBER TO BRACKET
63
NUT , Replaced By: N910113014000
63
NUT STEERING SUPPORT TO FRAME
63
NUT , Replaced By: N910113012003
63
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
71
SCREW BRACKET TO CAB CONSOLE,K 035197
71
SCREW STEERING SUPPORT TO FRAME M 14X50
71
SCREW REAR CROSS MEMBER TO FRAME M 14X40
71
SCREW SUPPORT TO SIDE MEMBER M 14X120, TO BE ADAPTED DURING ASSEMBLY
71
SCREW SUPPORT TO SIDE MEMBER M 14X120, TO BE ADAPTED DURING ASSEMBLY
71
SCREW SUPPORT TO SIDE MEMBER M 14X45
71
SCREW , Replaced By: N308676014012
79
SCREW CAB TO FRONT CONSOLE,5 412153
79
SCREW SUPPORT TO SIDE MEMBER M 14X120, TO BE ADAPTED DURING ASSEMBLY
79
SCREW SUPPORT TO SIDE MEMBER M 14X120, TO BE ADAPTED DURING ASSEMBLY
87
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
95
NUT STEERING SUPPORT TO FRAME
95
NUT , Replaced By: N910113014000
97
SCREW SUPPORT TO SIDE MEMBER M 14X120, TO BE ADAPTED DURING ASSEMBLY
97
SCREW SUPPORT TO SIDE MEMBER M 14X45
97
SCREW , Replaced By: N308676014012
99
NUT STEERING SUPPORT TO FRAME
99
NUT , Replaced By: N910113014000
103
WIRE CABLE CAB SUSPENSION,FRONT
103
WIRE CABLE CAB SUSPENSION,FRONT
111
PIN RETAINING ROPE TO BEARING BRACKET,TOP
115
COTTER PIN HYDRAULIC CYLINDER TO SWIVEL ARM
119
SPACER RING RETAINING ROPE TO BEARING BRACKET,TOP
127
PIN RETAINING ROPE TO BEARING BRACKET, BOTTOM
135
SPACER TUBE RETAINING ROPE TO BEARING BRACKET, BOTTOM
143
SPRING RETAINING ROPE TO BEARING BRACKET, BOTTOM
143
SPRING RETAINING ROPE TO BEARING BRACKET, BOTTOM
155
WASHER RETAINING ROPE TO BEARING BRACKET, BOTTOM
999
TREENAIL
