Поз.
Артикул
Описание

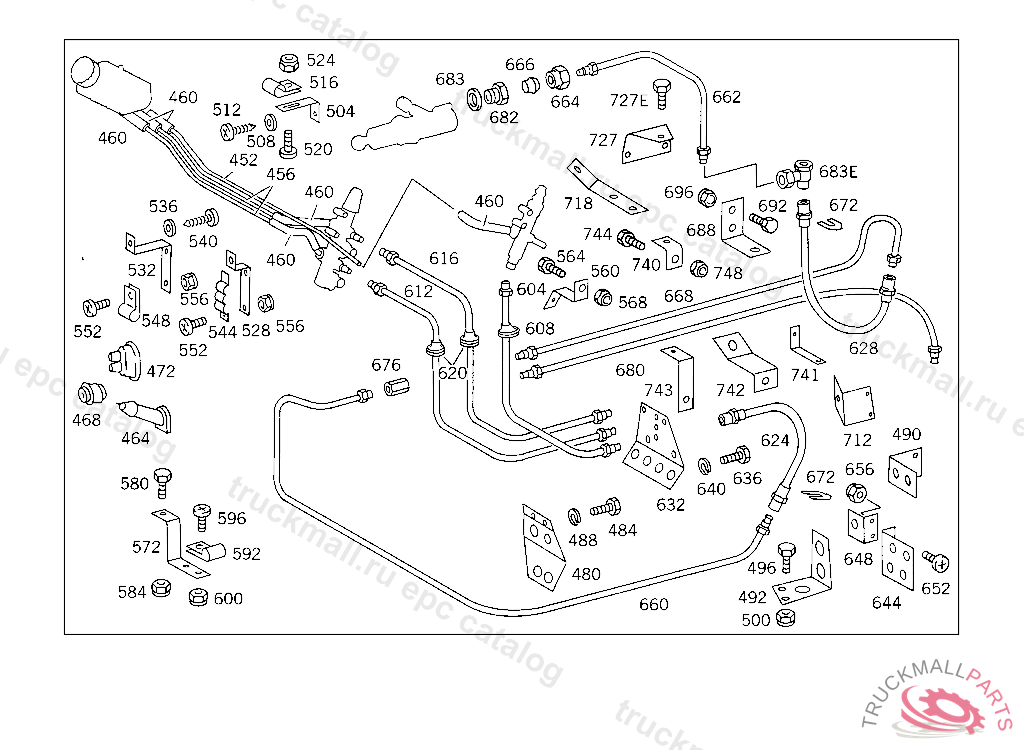

452
PIPE WITH BEAD, MASTER CYLINDER COUPLING TO EXPANSION RESERVOIR 10X700 MM
452
PIPE WITH BEAD, MASTER CYLINDER COUPLING TO EXPANSION RESERVOIR, 415 5 014668 416 5 000515 417 4 972023
456
PIPE FROM BRAKE MASTER CYLINDER TO RESERVOIR 550 MM, 415 5 014668 416 5 000515 417 4 972023
456
PIPE FROM BRAKE MASTER CYLINDER TO RESERVOIR 550 MM, 415 5 014668 416 5 000515 417 4 972023
460
HOSE , Replaced By: A0009978952
460
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
464
GROMMET CLUTCH LINE THRU CAB WINDOW SILL
464
GROMMET CLUTCH LINE THRU CAB WINDOW SILL,4 797364
468
GROMMET CLUTCH LINE THRU CAB WINDOW SILL,4 797365
472
GROMMET , Replaced By: A3819970581
472
GROMMET BRAKE LINE THRU CAB WINDOW SILL, 415 5 014668 416 5 000515 417 4 972023
480
BRACKET HYDRAULIC LINE TO CAB FLOOR
484
SCREW , Replaced By: N304017006016
484
SCREW PUMP TO BRACKET
488
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
490
BRACKET OIL TANK
496
SCREW , Replaced By: N000000001146
496
SCREW CLAMP MOUNTING M 6X16
500
NUT , Replaced By: N913004006001
500
NUT PUMP TO BRACKET
504
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
504
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
508
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
508
WASHER COMPRESSED AIR LINE TO BRACKET
508
WASHER COMPRESSED AIR LINE TO BRACKET
512
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
512
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
516
CLAMP LINE MOUNTING
520
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
524
NUT , Replaced By: N913004006001
524
NUT PUMP TO BRACKET
528
BRACKET HYDRAULIC LINE TO CAB, 415 5 014668 416 5 000515 417 4 972023
532
BRACKET HYDRAULIC LINE TO CAB, 415 5 014668 416 5 000515 417 4 972023
536
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
536
WASHER COMPRESSED AIR LINE TO BRACKET
540
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
544
CLAMP HYDRAULIC LINE TO BRACKET
548
CLAMP LINE MOUNTING
552
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
556
NUT , Replaced By: N913004006001
556
NUT PUMP TO BRACKET
560
BRACKET BRAKE AND CLUTCH LINES, 415 5 014668 416 5 000515 417 4 972023
564
SCREW CONSOLE TO SIDE MEMBER
568
NUT SUPPORT TO SIDE MEMBER
572
BRACKET BRAKE AND CLUTCH LINES, 415 5 014668 416 5 000515 417 4 972023
580
SCREW , Replaced By: N304017008034
580
SCREW BRACKET TO CROSS CONNECTION STRUT
584
NUT , Replaced By: N913004008001
584
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
584
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
592
CLAMP , Replaced By: A3604300143
592
CLAMP , Replaced By: N916016008200
592
CLAMP ,K 147121, Replaced By: N000000000319
592
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
596
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
596
SCREW CLAMP TO BRACKET
600
NUT , Replaced By: N913004006001
600
NUT PUMP TO BRACKET
604
LINE , Replaced By: A3812901714
604
LINE , Replaced By: A3812901714
604
LINE , Replaced By: A3812903214
604
LINE FROM VALVE TO CONNECTION FITTING,K 172343
608
GROMMET , Replaced By: A3149970581
608
GROMMET BATTERY CASE
612
LINE , Replaced By: A3812901614
612
LINE FROM ENGINE-MOUNTING BRACKET TO CLUTCH BOOSTER 550 MM, TO BE ADAPTED DURING ASSEMBLY
616
LINE , Replaced By: A3812901914
616
LINE , Replaced By: A3812902014
616
LINE , Replaced By: A3812901914
616
LINE HYDRAULIC HOSE TOWARDS CLUTCH BOOSTER 800 MM,5 401291 TO BE ADAPTED DURING ASSEMBLY
616
LINE , Replaced By: A3812900913
616
LINE , Replaced By: A3812901814
616
LINE , Replaced By: A3812901814
616
LINE , Replaced By: A3812900913
616
LINE , Replaced By: A3812901814
616
LINE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE 700 MM
616
LINE FROM CLUTCH MASTER CYLINDER TO SHUTTLE VALVE 700 MM
620
GROMMET TEMPERATURE GAUGE SENDER UNIT
624
HOSE FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET 555 MM
624
HOSE FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET 555 MM
628
HOSE FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET 215 MM
628
HOSE FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET 350 MM
628
HOSE FROM REAR ENGINE-MOUNTING BRACKET TO TRANSMISSION BRACKET
632
BRACKET HYDRAULIC LINE, 415 5 014668 416 5 000515 417 4 972023
636
SCREW COVER PLATE TO BRACKET
640
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
644
BRACKET LINES TO BRACKET
648
BRACKET LINES TO BRACKET
652
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
656
NUT , Replaced By: N913004006001
656
NUT PUMP TO BRACKET
660
LINE , Replaced By: A3812902014
660
LINE , Replaced By: A3812902014
660
LINE , Replaced By: A3812902713
660
LINE , Replaced By: A3812902014
660
LINE FROM SHUTTLE VALVE TO CLUTCH REMOTE CONTROL MASTER CYLINDER 1100 MM, TO BE ADAPTED DURING ASSEMBLY
660
LINE FROM SHUTTLE VALVE TO CLUTCH REMOTE CONTROL MASTER CYLINDER 1100 MM, TO BE ADAPTED DURING ASSEMBLY
660
LINE FROM SHUTTLE VALVE TO CLUTCH REMOTE CONTROL MASTER CYLINDER 1100 MM, TO BE ADAPTED DURING ASSEMBLY
660
LINE FROM SHUTTLE VALVE TO CLUTCH REMOTE CONTROL MASTER CYLINDER 1100 MM, TO BE ADAPTED DURING ASSEMBLY
662
LINE FROM ENGINE-MOUNTING BRACKET TO CLUTCH BOOSTER 550 MM, TO BE ADAPTED DURING ASSEMBLY
668
LINE , Replaced By: A3812902314
668
LINE FROM FAN SHROUD BRACKET TO FITTING 2500 MM
668
LINE FROM FAN SHROUD BRACKET TO FITTING 2500 MM
668
LINE , Replaced By: A3812902513
668
LINE , Replaced By: A3812902513
668
LINE , Replaced By: A3812902214
668
LINE , Replaced By: A3812902214
668
LINE FROM HYDRAULIC LINE TO CONNECTION FITTING 2000 MM, NOT USED
668
LINE FROM HYDRAULIC LINE TO CONNECTION FITTING 2000 MM, NOT USED
668
LINE FROM HYDRAULIC LINE TO CONNECTION FITTING 2000 MM, NOT USED
672
BRACKET. LOCK , Replaced By: A6525040038
672
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
672
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
676
INTERMEDIATE PIECE CLUTCH HOSE,K 172342
680
LINE , Replaced By: A3812902614
680
LINE FROM CONNECTOR TO BRAKE SLAVE CYLINDER 4000 MM, 415 5 014668 416 5 000515 417 4 972023
680
LINE FROM FITTING TO CLUTCH BOOSTER 3000 MM
680
LINE , Replaced By: A3812902414
680
LINE , Replaced By: A3812902414
680
LINE , Replaced By: A3812902414
692
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
696
NUT STRAP TO BRACKET
696
NUT , Replaced By: N910113010000
712
BRACKET HYDRAULIC LINE TO TRANSMISSION
712
BRACKET , Replaced By: A6202954440
727
BRACKET AT ENGINE,RIGHT,5 341190
743
BRACKET BRACKET TO FAN SHROUD BRACKET
744
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
744
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
744
SCREW , Replaced By: N304017008027
748
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
748
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
748
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
748
NUT , Replaced By: N913004008001
999
STRAINER , Replaced By: A0004314334
999
BOOTTO 001 295 30 06
999
SEAL RING , Replaced By: A0009940747
999
LOCK RING LINE CONNECTION
999
LOCK , Replaced By: A0009945448
999
LOCK LINE CONNECTION
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
SCREW. UNION SCREW LINE CONNECTION
999
GASKET KIT 3/2-WAY VALVE
999
NEEDLE BEARING , Replaced By: A0119813410
999
BRACKET , Replaced By: A3604292940
999
PROTECTIVE CAP , Replaced By: A0004210887
999
BRACKET FROM HYDRAULIC LINES TO BRAKE BOOSTER, 415 5 014668 416 5 000515 417 4 972023
999
BRACKET , Replaced By: A3464296040
999
WASHER , Replaced By: N001440027000
999
ROD OVER-CENTER ACTING SPRING
999
ROD OVER-CENTER ACTING SPRING
999
PIN PUSH ROD TO PEDAL
999
BRACKET 3/2-WAY VALVE, UP TO IDENT NO.5 238024,FROM IDENT NO. SEE GROUP 29
999
BRACKET PEDAL BEARING BRACKET
999
BRACKET 3/2-WAY VALVE TO PEDAL BEARING BRACKET
999
BRACKET FUEL LINES TO TRANSMISSION
999
SCREW COVER PLATE TO BRACKET
999
SCREW BRACKET ON LOAD SENSOR
999
WASHER VALVE TO BRACKET
999
SCREWM 16X25
