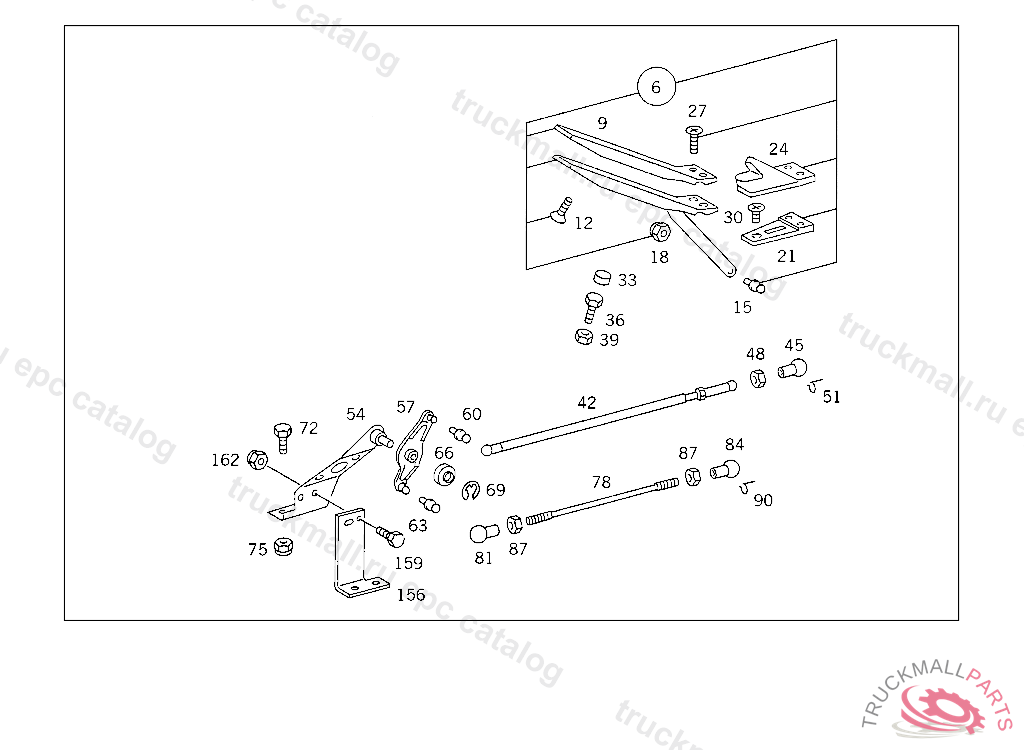

Поз.
Артикул
Описание
6
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
9
PAD ACCELERATOR PEDAL
12
SCREW ACCELERATOR PEDAL
15
BALL PIVOT LOAD SENSOR
18
NUT , Replaced By: N913004006001
18
NUT PUMP TO BRACKET
21
SHIM ACCELERATOR PEDAL
24
BOOT ACCELERATOR PEDAL
27
SCREW ACCELERATOR PEDAL TO CAB M 6X20
27
SCREW ACCELERATOR PEDAL TO CAB M 6X25
30
SCREW PEDAL TO CAB FLOOR
33
STOP ACCELERATOR PEDAL
36
SCREW VALVE TO BRACKET, Replaced By: N304014008002
36
SCREW VALVE TO BRACKET
39
NUT , Replaced By: N304032008006
39
NUT
42
ROD LOAD SENSOR CONTROL
45
BALL SOCKET PULL ROD TO LEVER
48
NUT BALL PIVOT TO LEVER
51
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
54
BEARING BRACKET INTERMEDIATE LEVER
54
BEARING BRACKET INTERMEDIATE BEARING
57
LEVER INTERMEDIATE BEARING
60
BALL STUD. BALL PIVOT TOP B10X4,5 MM
60
BALL PIVOT LEVER
60
BALL PIVOT , Replaced By: A3129910120
63
BALL PIVOT BOTTOM B13X5 MM
66
COVERING INTERMEDIATE BEARING
69
LOCK PLATE INTERMEDIATE BEARING
72
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
75
NUT STRAP TO BRACKET
75
NUT , Replaced By: N910113010000
78
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
81
BALL SOCKET ROD TO BALL PIVOT
84
BALL SOCKET ROD TO BALL PIVOT
87
NUT
87
NUT , Replaced By: N304032008006
90
SECURING CLIP. CIRCLIP
156
BRACKET BEARING BRACKET TO GUSSET PLATE
159
SCREW , Replaced By: N304017008021
159
SCREW PIPE CLAMP
162
NUT , Replaced By: N913004008001
162
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
