Поз.
Артикул
Описание

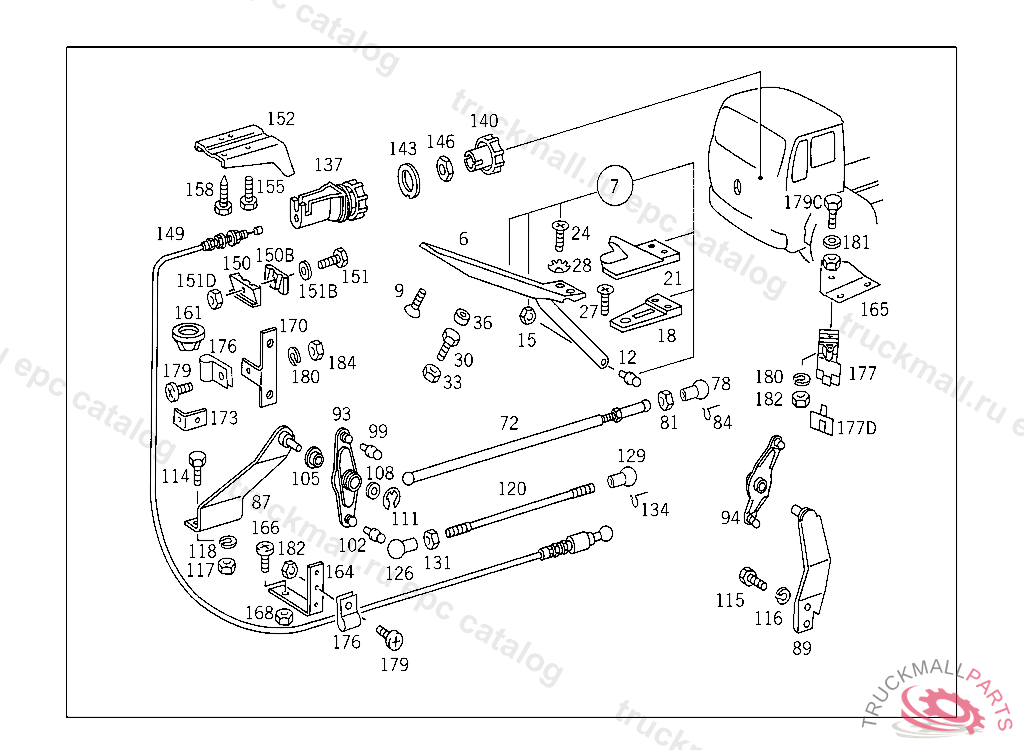

6
ACCELERATOR PEDAL , Replaced By: A6243000304
6
ACCELERATOR PEDAL , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6243000304
7
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
9
SCREW ACCELERATOR PEDAL
12
BALL PIVOT LOAD SENSOR
12
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
12
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
15
NUT PUMP TO BRACKET
15
NUT , Replaced By: N913004006001
18
SHIM ACCELERATOR PEDAL
18
SHIM , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 859957, Replaced By: A6153010084
21
BOOT ACCELERATOR PEDAL
21
BOOT ACCELERATOR PEDAL,4 859957
24
SCREW ACCELERATOR PEDAL TO CAB M 6X25
27
SCREW ACCELERATOR PEDAL TO CAB M 6X20
28
SERRATED WASHER ACCELERATOR PEDAL TO CAB, ELIMINATED,NO LONGER REQUIRED
30
SCREW VALVE TO BRACKET
30
SCREW VALVE TO BRACKET, Replaced By: N304014008002
33
NUT
36
STOP ACCELERATOR PEDAL
72
ROD LOAD SENSOR CONTROL
72
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER, 415 5 014668 416 5 000515 417 4 972023
72
ROD , Replaced By: A3604302992
78
BALL SOCKET PULL ROD TO LEVER
81
NUT BALL PIVOT TO LEVER
84
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
87
BEARING BRACKET INTERMEDIATE BEARING
87
BEARING BRACKET ,5 181099, Replaced By: A6203000536, +002A6153010088
87
BEARING BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 931321, Replaced By: A6203000336
93
LEVER INTERMEDIATE BEARING
93
LEVER , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 4 931322-5 068730, Replaced By: A6203000628
93
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 931321, Replaced By: A3813000928
99
BALL PIVOT LEVER
99
BALL PIVOT , Replaced By: A3129910120
102
BALL PIVOT BOTTOM B13X5 MM
105
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
105
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
108
COVERING , Replaced By: A6153010088
108
COVERING INTERMEDIATE BEARING
111
LOCK PLATE INTERMEDIATE BEARING
114
SCREW END PIECE TO EXHAUST PIPE M 10X25
114
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
117
NUT STRAP TO BRACKET
117
NUT , Replaced By: N910113010000
118
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
120
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
126
BALL SOCKET ROD TO BALL PIVOT
129
BALL SOCKET ROD TO BALL PIVOT
131
NUT
134
SECURING CLIP. CIRCLIP
137
MANUAL CONTROL IDLING ADJUSTMENT
140
KNOB MANUAL CONTROL
140
KNOB , Replaced By: A6153020001
143
FITTED WASHER MANUAL CONTROL
143
LOCK , Replaced By: N000988030003
146
NUT MANUAL CONTROL
149
WIRE CABLE IDLING ADJUSTMENT
149
WIRE CABLE IDLING ADJUSTMENT
149
WIRE CABLE , Replaced By: A6203000130
149
WIRE CABLE , Replaced By: A6203000130
149
WIRE CABLE IDLING ADJUSTMENT, 415 5 014668 416 5 000515 417 4 972023
150
CLAMPING PIECE FLEXIBLE SHAFT TO CAB FIRE WALL
150
CLAMPING PIECE WIRE CABLE TO FIRE WALL
155
SCREW COVER PLATE TO COVER PLATE M 6 X 12
155
SCREW , Replaced By: N304017006018
158
COMBINATION BOLT BRACKET TO WINDOW SILL GIRDER
158
SHEET METAL SCREW , Replaced By: N914031005208
161
GROMMET WIRE CABLE THRU WINDOW SILL
161
GROMMET
164
BRACKET WIRE CABLE TO FIRE WALL, 415 5 014668 416 5 000515 417 4 972023
165
BRACKET WIRE CABLE TO RADIATOR MOUNTING CONSOLE
166
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
168
NUT PUMP TO BRACKET
168
NUT , Replaced By: N913004006001
170
BRACKET WIRE CABLE TO FRAME SIDE MEMBER, 415 5 014668 416 5 000515 417 4 972023
173
BRACKET CABLE HARNESS MOUNTING
176
CLAMP DELIVERY AND SUCTION LINES TO STEERING
176
CLAMP , Replaced By: A6739950001
177
CLAMPING PIECE CABLE TO BRACKET
181
WASHER COMPRESSED AIR LINE TO BRACKET
181
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
182
NUT PUMP TO BRACKET
182
NUT , Replaced By: N913004006001
999
GUIDE MANUAL CONTROL
999
CLAMPING PIECE FLEXIBLE SHAFT TO FRAME SIDE MEMBER
999
PAD ACCELERATOR PEDAL
999
CLAMPING PIECE CABLE PULL TO FIRE WALL
999
COVER CABLE TO BRACKET
999
BRACKET WIRE CABLE TO FRAME SIDE MEMBER, 415 5 014669 416 5 000516 417 4 972024
999
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
SCREW CONNECTOR
999
SCREW COVER PLATE TO BRACKET
999
SCREW CAB FLOOR COVERING M 6X25
999
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
