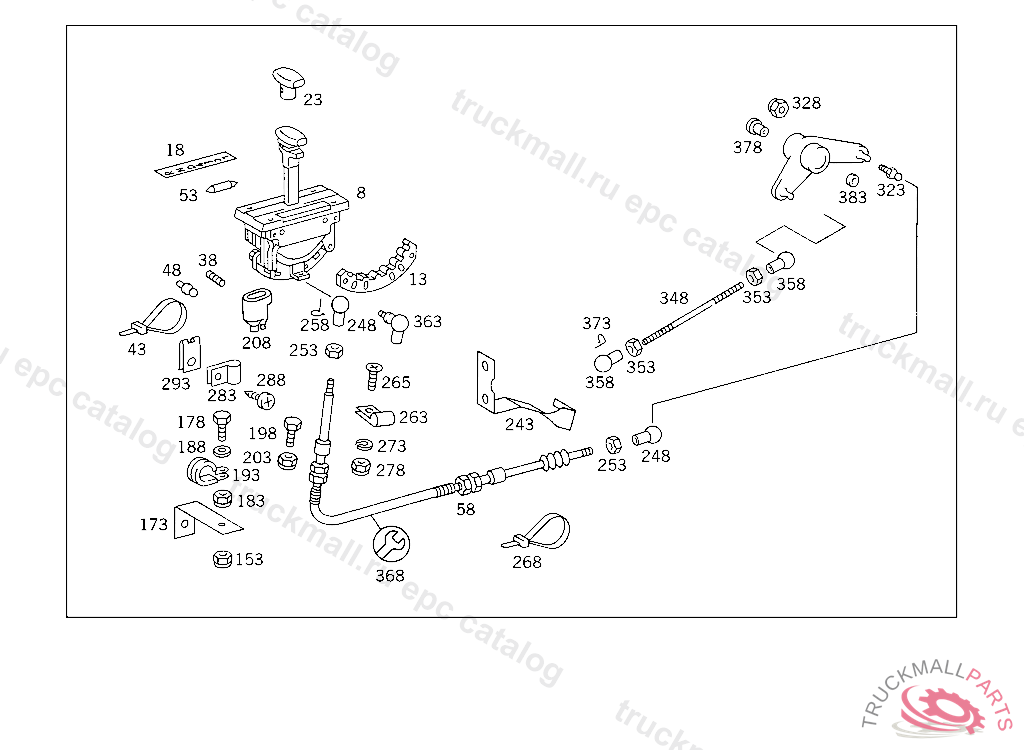

Поз.
Артикул
Описание
8
SHIFT CASE FOUR-SPEED TRANSMISSION
8
SHIFT CASE UPPER PART
8
SHIFT CASE UPPER PART
8
SHIFT CASE UPPER PART,5 331506
8
SHIFT CASE UPPER PART
8
SHIFT CASE , Replaced By: A0002602972
8
SHIFT CASE FOUR-SPEED TRANSMISSION
8
SHIFT CASE UPPER PART
13
SLOTTED GATE
13
SLOTTED GATE
18
GUMMED LABELTO 000 260 28 72
18
GUMMED LABEL
18
GUMMED LABELTO 000 260 29 72
23
KNOB
23
KNOB
23
KNOB
38
SPRING
43
LOOM TIE , Replaced By: A0019978390
43
LOOM TIE LINE MOUNTING 280 MM
48
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
48
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
53
BULB24V/5W
58
WIRE CABLE FROM ENGINE TO TRANSMISSION L3680 MM
58
WIRE CABLE SHIFT CASE
58
WIRE CABLE SHIFT CASE
58
WIRE CABLE FROM ENGINE TO TRANSMISSION L3870 MM
58
WIRE CABLE FROM ENGINE TO TRANSMISSION L4800 MM
58
WIRE CABLE FROM ENGINE TO TRANSMISSION L3530 MM
58
WIRE CABLE FROM ENGINE TO TRANSMISSION L3780 MM
58
WIRE CABLE FROM ENGINE TO TRANSMISSION L4700 MM
153
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
173
BRACKET , Replaced By: A3274925419
173
BRACKET COMPRESSED AIR LINES, Replaced By: A6205240340
173
BRACKET FUEL LINES TO TRANSMISSION
178
SCREW BRACKET TO FRAME M 12X35
183
NUT , Replaced By: N910113012003
183
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
188
WASHER
193
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
198
SCREW , Replaced By: A4609900601
198
SCREW EXHAUST PIPE TO BRACKET
203
NUT , Replaced By: N913004008001
203
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
208
GROMMET SHIFT CASE
243
BRACKET (FITTING MOLD),SHIFT CASE,5 331506
248
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
248
BALL SOCKET PULL ROD TO LEVER
253
NUT BALL PIVOT TO LEVER
258
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
263
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
265
SCREW ACCELERATOR PEDAL TO CAB M 6X20
265
SCREW ACCELERATOR PEDAL TO FLOOR PLATE M 6X20
265
SCREW , Replaced By: N304017006016
265
SCREW PUMP TO BRACKET
268
LOOM TIE LINE MOUNTING 280 MM
273
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
278
NUT , Replaced By: N913004006001
278
NUT PUMP TO BRACKET
283
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
288
SHEET METAL SCREW ELECTRIC CABLE THRU CAB FLOOR
293
LOCK ELECTRIC CABLE THRU CAB FLOOR
323
BALL PIVOT DOUBLE LEVER TO BRACKET 58 MM
328
NUT END PIECE TO EXHAUST PIPE
348
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
348
SHIFTING ROD WIRE CABLE
353
NUT BALL PIVOT TO LEVER
358
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
363
END PIECE WIRE CABLE
368
REPAIR KIT WIRE CABLE
373
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
378
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
383
COVERING INTERMEDIATE BEARING
999
STRAP
999
DIAL
999
SHIFT LEVER
999
SCREW BRACKET TO TRANSMISSION
999
BRACKET WIRE CABLE TO TRANSMISSION, NOT USED
999
BRACKET WIRE CABLE
999
BRACKET (HEAT SHIELD)
999
COVERING WIRE CABLE, NOT USED
999
BRACKET (HEAT SHIELD)
999
LEVER AT TRANSMISSION, NOT USED
999
WASHER , Replaced By: N000125017016
999
WASHER BRACKET TO FRAME
999
SCREW , Replaced By: N304017016004
999
SCREW SUPPORTING ARM TO HOUSING M 16X35
999
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
999
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
