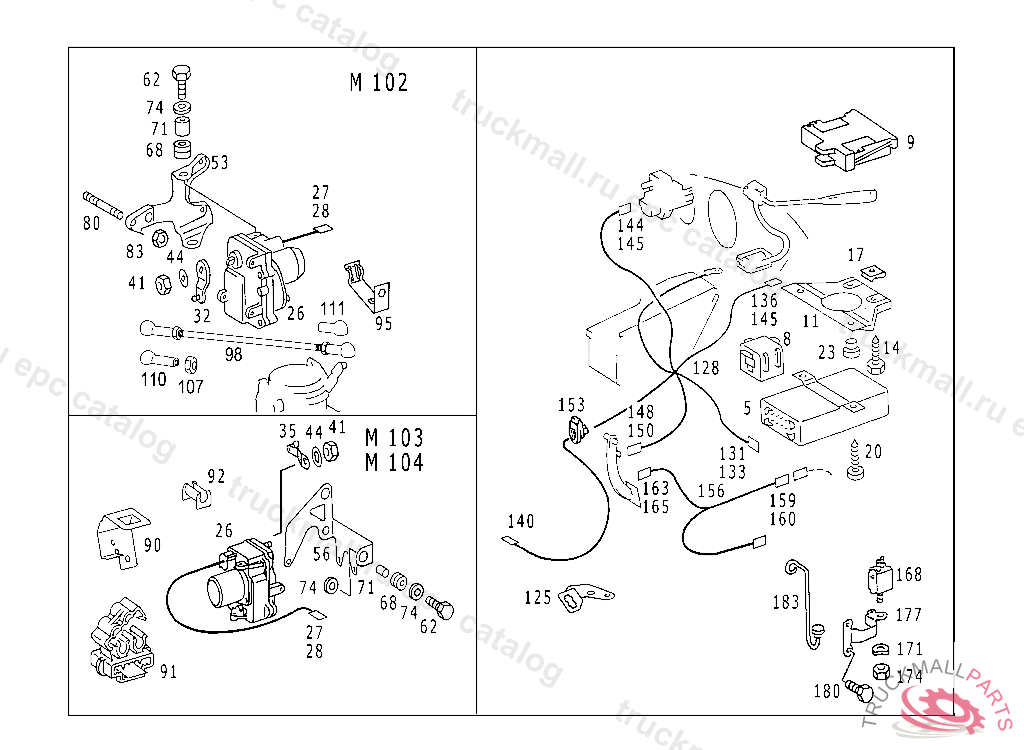

Поз.
Артикул
Описание
5
CONTROL UNIT TEMPOMAT (CRUISE CONTROL)
5
CONTROL UNITTEMPOMAT,126. A 310459
8
CODING PART TEMPOMAT (CRUISE CONTROL) CONTROL UNIT
8
CODING PART TEMPOMAT (CRUISE CONTROL) CONTROL UNIT
11
BRACKET CONTROL UNIT
11
BRACKET CONTROL UNIT
14
SHEET METAL SCREW BRACKET TO CAB FLOOR
17
LOCK PROTECTIVE GRILLE
17
LOCK CONDENSER TO INTERIOR PLATE,LEFT OUTSIDE
20
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
23
GROMMET CONTROL UNIT TO BRACKET
125
BRACKET FINAL CONTROL ELEMENT PLUG CONNECTION TO DIAGNOSIS BOX
128
CABLE HARNESS TEMPOMAT (CRUISE CONTROL),B 238486
128
CABLE HARNESS TEMPOMAT (CRUISE CONTROL)
131
COVERTO 019 545 29 28
131
PIN BUSHING HOUSING CONTROL UNIT, 14-POLE
133
ROUND PIN BUSHING2.5 MM2
136
PIN BUSHING HOUSING 4-POLE
136
COVER
140
PIN BUSHING HOUSING SEAT HEATER RELAY, 8-POLE
140
COVERTO 006 545 81 28
144
PIN BUSHING HOUSING UNIPOLAR, HEAT SENSOR CONNECTION
145
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
148
PLUG ADAPTER. PLUG HEATING WATER VALVE, 4-POLE
148
PLUG ADAPTERTO 014 545 04 28
150
PIN BUSHINGTO 000 821 19 26
153
GROMMET , ONLY WITH AIR CONDITIONING AUTOMATICS
156
CABLE HARNESS FROM CLUTCH SWITCH TO CABLE CONNECTOR,F 143764
156
CABLE HARNESS FROM STOP LIGHT SWITCH TO PLUG CONNECTION
159
PIN BUSHING HOUSING BIPOLAR
160
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
163
PLUG ADAPTER. PLUG HEATING WATER VALVE, 4-POLE
163
PLUG ADAPTERTO 014 545 04 28
165
PIN BUSHINGTO 000 821 19 26
168
SWITCH CLUTCH SWITCH,TEMPOMAT (CRUISE CONTROL)
171
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
171
SPRING WASHER , Replaced By: N000137008212
174
NUT PRIMARY PUMP TO CONVERTER HOUSING
177
BRACKET CLUTCH SWITCH,TEMPOMAT (CRUISE CONTROL)
180
SCREW
183
ROD CLUTCH SWITCH,TEMPOMAT (CRUISE CONTROL)
