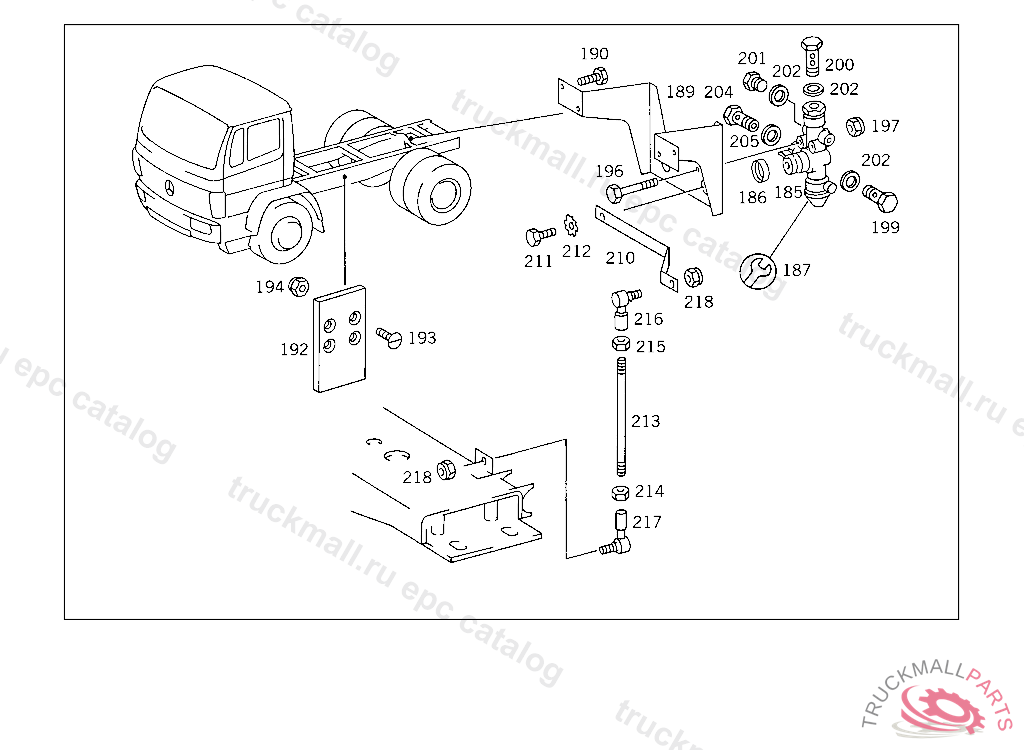

Поз.
Артикул
Описание
185
VALVE SELF-LEVELLING DEVICE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
185
VALVE
186
BOOT
187
REPAIR KIT AIR SPRING VALVE
187
REPAIR KIT , FIRST EXHAUST STOCK OF OLD PARTS ON KNORR VALVE SV 1280-I/69324, Replaced By: A0003201067
189
BRACKET AIR SPRING VALVE
190
SCREW END PIECE TO EXHAUST PIPE M 10X25
192
SHIM AT SIDE MEMBER
193
SCREW BRACKET TO APPARATUS SUPPORT
194
NUT STRAP TO BRACKET
194
NUT , Replaced By: N910113010000
196
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
196
SCREW , Replaced By: N304014008001
197
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
197
NUT , Replaced By: N913004008001
199
HOLLOW SCREW HEATING CONNECTION
200
HOLLOW SCREW LINE CONNECTION
201
SCREW PLUGROCKINGER,TYP 59 U150
201
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
201
SCREW PLUG 3/2-WAY VALVE,CONNECTION:,5 363121
202
SEAL RING LINE CONNECTION
204
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
205
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
210
LEVER AIR SPRING VALVE,K 186867
211
SCREW CABLE HARNESS MOUNTING
211
SCREW , Replaced By: N304017008023
212
TOOTHED WASHER LEVER TO AIR SPRING VALVE,K 186867
212
TOOTHED WASHER , Replaced By: N006797008120
213
PULL ROD PNEUMATIC SUSPENSION CONTROL
214
NUT
214
NUT , Replaced By: N304032008006
215
NUT INTERMEDIATE SPEED STOP
216
YOKE BOTTOM
217
YOKE L.H. THREAD, SELF-LEVELLING DEVICE
218
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
218
NUT , Replaced By: N913004008001
999
PIN TORSION BAR TO BEARING BRACKET
999
REPAIR KIT TORSION BAR TO REAR AXLE
999
SPACER WASHER AS REQUIRED 1.00 MM
999
SPACER WASHER AS REQUIRED 4.00 MM
