Поз.
Артикул
Описание

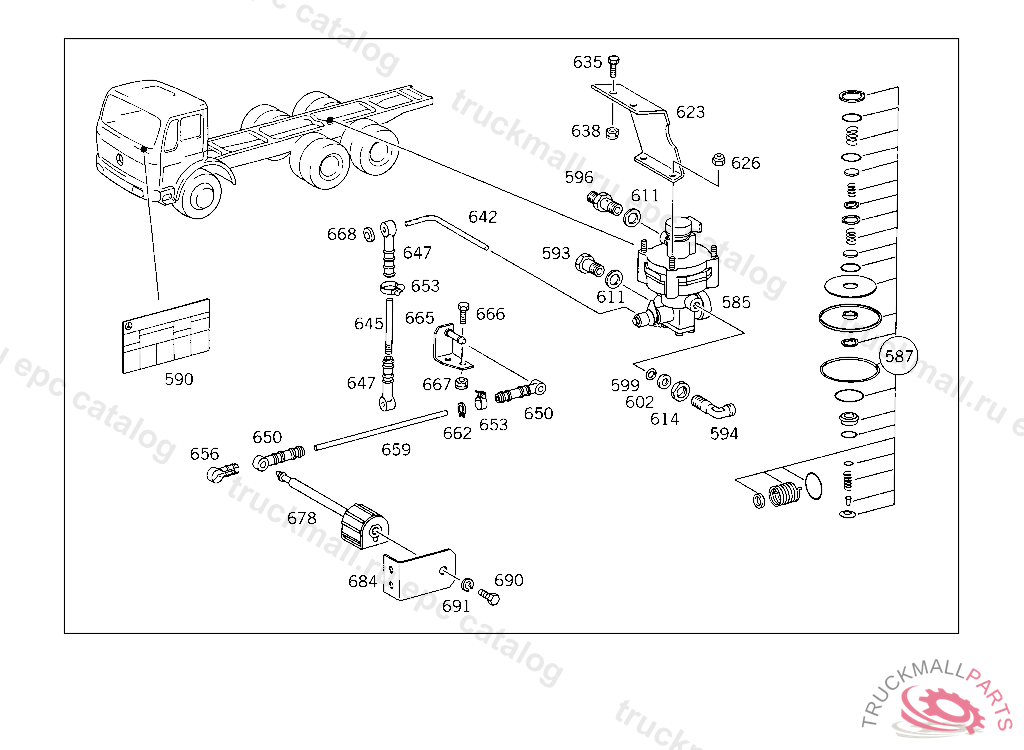

585
BRAKE PRESSURE REGULATORWABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
585
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE,5 234164
585
BRAKE PRESSURE REGULATOR LOAD-DEPENDING BRAKE KNORR,5 234164
587
REPAIR KIT BRAKE POWER REGULATOR
587
REPAIR KIT BRAKE POWER REGULATOR WABCO
590
GUIDE SIGN LOAD-DEPENDING BRAKE
594
ELBOW FITTING RELAY VALVE,CONNECTIONS: "21,22"
596
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
599
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
602
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
611
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
614
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
623
BRACKET BRAKE POWER REGULATOR,5 197194
626
NUT , Replaced By: N913004008001
626
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
626
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
635
SCREW , Replaced By: N304017008021
635
SCREW PIPE CLAMP
638
NUT , Replaced By: N913004008001
638
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
638
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
642
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
645
PULL ROD , Replaced By: N900331008420
645
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
650
CONNECTOR PULL ROD TO LEVER
653
CLAMP , Replaced By: N000000000665
653
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
656
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
659
ROD BRAKE POWER REGULATOR CONTROL
662
LOCK RING PULL ROD TO LINK
665
BRACKET , NOT USED
666
SCREW , Replaced By: N304017008040
666
SCREW BRACKET TO SIDE MEMBER
666
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
666
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
667
NUT , Replaced By: N913004008001
667
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
667
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
668
WASHER , Replaced By: N000125008443
668
WASHER EXHAUST MUFFLER TO STRAP
678
METAL SPRING BELLOWS REAR AXLE I
684
BRACKET METAL SPRING BELLOWS,REAR AXLE I
690
SCREW METAL SPRING BELLOWS TO BRACKET,4 957941
690
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
691
LOCK WASHER FITTING TO BRACKET
999
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
999
SEAL RING AT FITTING,5 181111 10/50 623.135, 5 191654 10/50 623.048,145,1905 208196 20/60 623.048,135,145,1905 239606 623.012,013,023,068,0735 297633 623.195
999
SEAL RING , Replaced By: N007603012121
999
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
999
UNION NUT LINE CONNECTION
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
SCREW ENGINE REAR SUPPORT M 20X1.5X50
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
YOKETO 008 420 95 18,008 420 97 18,BOSCH
999
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
999
WASHER , Replaced By: N009021005205
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
999
CLAMPING SLEEVE , IN CASE OF STEEL AXLE
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
999
BULKHEAD FITTING THROUGH SIDE MEMBER
999
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
999
CLAMPING SLEEVE BEARING BRACKET TO REAR AXLE
999
CLAMPING SLEEVEKNORR
999
WASHER STRAP TO SUPPORT
999
SCREW BRACKET TO REAR AXLE M 20X1.5X45
999
SCREW , Replaced By: N308676020015
999
SCREW BRACKET TO REAR AXLE M 20X1.5X55
999
SCREW , Replaced By: N304017008027
999
NUT COMPRESSED AIR LINE THRU FRAME,5 395034
999
WASHER BRACKET TO FRAME
999
WASHER , Replaced By: N000125017016
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
COTTER PIN STRAP TO SUPPORT
999
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
999
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
BRACKET METAL SPRING BELLOWS,REAR AXLE I
999
BRACKET METAL SPRING BELLOWS
999
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
999
LEVER BRAKE POWER REGULATOR
999
STRAP AIR RESERVOIR III,5 088362
999
STRAP AIR RESERVOIR TO BRACKET
999
BRACKET , Replaced By: A6154200186
999
BRACKET RIGHT COMPRESSED AIR LINES
999
BRACKET METAL SPRING BELLOWS
999
BEARING BRACKET WHEEL CYLINDER, IN CASE OF STEEL AXLE
999
BRACKET BRAKE POWER REGULATOR
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
999
SEAL RINGTO 000 429 27 95, WABCO
999
SEAL RINGTO 000 429 25 95,BOSCH
999
SEAL RING , Replaced By: A0009870746
999
SEAL RING , Replaced By: A0049972248
999
SEAL RING , Replaced By: A0289972348
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO
999
REPAIR KITTO 002 430 98 81,99 81,KNORR
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,000 2
999
VALVE (RELAY VALVE) KNORR
999
VALVE (CHECK VALVE) SCHAEFER
999
VALVE (CHECK VALVE) WABCO
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
999
ELBOW FITTING ,5 433281
999
ELBOW FITTING ,5 181111 10/50 616.121,122,131,1325 208196 20/60 616.121,122,131,1325 297633 616.024,026,027,028,065
999
ELBOW FITTING ,5 181111 10/50 616.121,122,131,1325 208196 20/60 616.121,122,131,1325 297633 616.024,026,027,028,065
999
VALVE , Replaced By: A0034295344
999
REPAIR KIT. BRAKE CYLINDER DIAPHRAGM PART TO 007 420 42 18, KNORR
999
REPAIR KIT SPRING LOAD ACCUMULATOR PART KNORR,K 262627
999
SEAL RINGTO 000 429 25 95,BOSCH
999
ELBOW FITTING AIR RESERVOIR,CONNECTION: "13", PLUG CONNECTION
999
BANJO UNION
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
T-FITTING LEFT AND RIGHT BRAKE HOSES
999
SPRINGBOSCH
999
REPAIR KIT COVERING TO 001 431 36 12
999
PROTECTIVE CAPKNORR
999
PROTECTIVE CAPTO BOSCH
999
PROTECTIVE CAPTO WABCO
999
REPAIR KIT TRISTOP CYLINDER TO 008 420 90 18, BOSCH
999
VALVE (RELAY VALVE) GRAU
999
PLUG
999
HANDLEKNORR
999
SCREW. UNION SCREW LINE CONNECTION
999
LOCK ELECTRIC CABLE THRU CAB FLOOR
999
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
BANJO UNION , Replaced By: A0019908288
999
CONNECTOR REPAIR SIZE
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
SEALING CORDTO 000 429 27 95, WABCO
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
PISTONTO 001 431 83 05,WABCO
999
VALVEWABCO
999
DIAPHRAGMBOSCH,K 262627
999
FILLER RINGTO 001 431 83 05,WABCO
999
METAL SPRING BELLOWS BEARING BRACKET TO REAR AXLE,K 006315
999
BREATHER PIPETO 001 431 83 05,WABCO
999
REPAIR KIT SEAL RING BOSCH,209
999
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE WABCO
999
REPAIR KIT VALVE BOSCH
999
REPAIR KIT BRAKE POWER REGULATOR BOSCH
999
REPAIR KIT DIAPHRAGM PART BOSCH,209
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
REPAIR KITTO 000 429 26 95,KNORR
999
REPAIR KIT BRAKE POWER REGULATOR TO 002 431 05 12,KNORR
999
ADAPTER FITTING LINE CONNECTION TO ENGINE
999
AIR CLEANERGRAU
999
DIAPHRAGMTO 000 429 25 95,BOSCH
999
FILTER ELEMENTTO 000 429 25 95,BOSCH
999
CUPTO 008 420 97 18, 008 420 90 18, BOSCH
