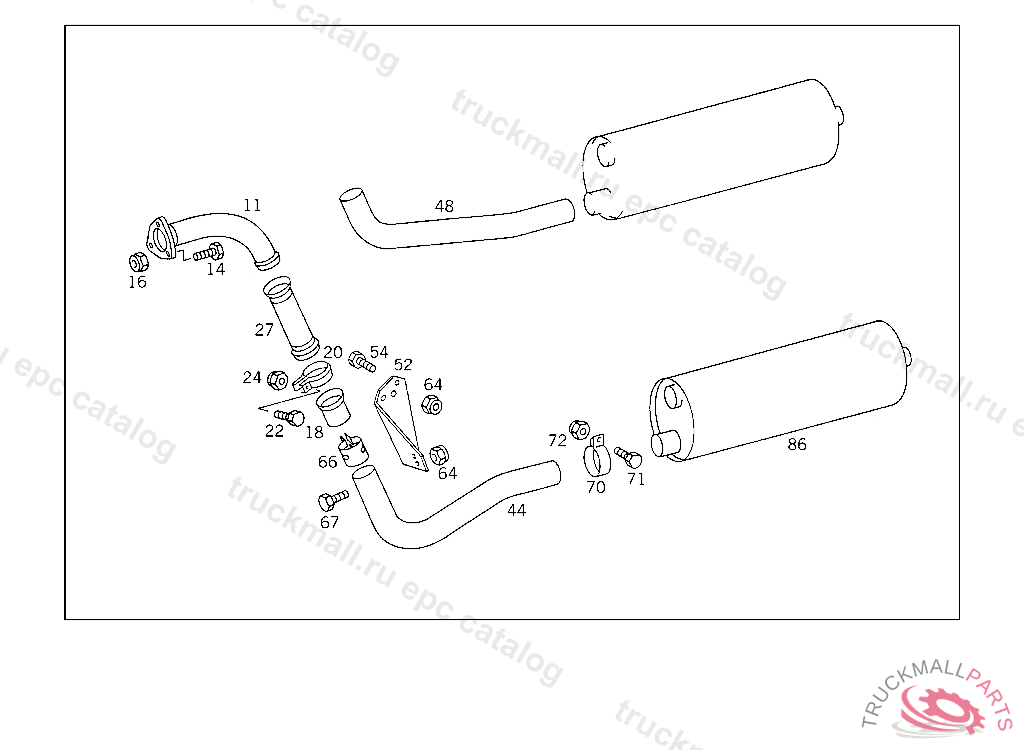

Поз.
Артикул
Описание
11
CONNECTOR RIGHT
11
CONNECTOR LEFT
14
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
14
SCREW CONNECTOR TO EXHAUST MANIFOLD
16
NUT CONNECTOR TO EXHAUST MANIFOLD
18
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
20
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
22
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
22
SCREW , Replaced By: N304017008028
24
NUT , Replaced By: N913004008001
24
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
27
FLEXIBLE METAL TUBE CONNECTOR
44
EXHAUST PIPE FRONT,REAR LEFT PART,5 193595
48
EXHAUST PIPE FRONT,REAR RIGHT PART,5 193595
52
BRACKET RIGHT EXHAUST PIPE
52
BRACKET LEFT EXHAUST PIPE
54
SCREW REAR EXHAUST PIPE TO MUFFLER
64
NUT STRAP TO BRACKET
64
NUT , Replaced By: N910113010000
66
CLAMP STRUT TO EXHAUST PIPE
66
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
67
SCREW BRACKET TO SIDE MEMBER
67
SCREW , Replaced By: N304017010002
70
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
71
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
71
SCREW , Replaced By: N304017008027
72
NUT , Replaced By: N913004008001
72
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
86
EXHAUST MUFFLER LEFT AND RIGHT,4 913283
999
BRACKET FRONT EXHAUST PIPE,LEFT
