Mercedes A3805460437 - Кабель

2628 A,3328 B/K,3528 K, 3535/AK 624.232

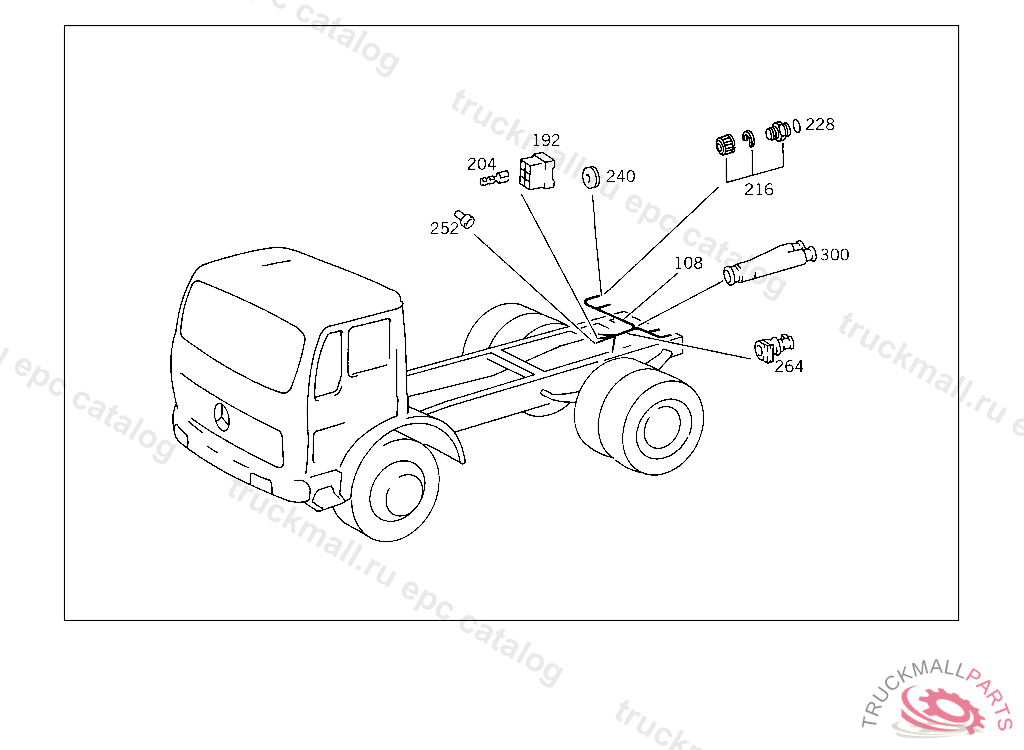

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 TAIL LAMP CABLE ON VEHICLES LESS GUIDE CROSS LAMP

Поз.
Артикул
Описание
108
A6215402007
CABLE HARNESS FROM REAR JUNCTION BOX TO RIGHT TAIL LIGHT
108
A6215401407
CABLE HARNESS FROM REAR JUNCTION BOX TO RIGHT TAIL LIGHT
108
A6245400007
CABLE HARNESS FROM REAR JUNCTION BOX TO RIGHT TAIL LIGHT
108
A3805400036
ELECTRIC CABLE FROM REAR JUNCTION BOX TO RIGHT TAIL LIGHT
192
A0075450528
PIN BUSHING HOUSING 6-POLE
204
A0075458226
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
204
A0005453826
PIN BUSHING , Replaced By: A0075458226
216
A0005461050
BUSHING VALVE BRANCH-OFF
228
A0019875046
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
240
A0009973081
GROMMET
252
A0015466641
CABLE CONNECTOR6-10 MM2
264
A3805462037
GROMMET
264
A3805460037
GROMMET CABLE CONNECTOR
264
A3875460437
GROMMET JUNCTION BOX BRANCH-OFF
300
A3805461637
GROMMET12/8.5/8.5
300
A3805460437
GROMMET12/12/8.5
999
A0005467741
CABLE CONNECTOR1.5-6.6 MM2
999
A6019970881
GROMMET , Replaced By: A0009973081
999
A6215401307
CABLE HARNESS FROM CONNECTION POINT TO RIGHT TAIL LAMP
