Mercedes
›
TRUCK
›
2636,2645 AF, 3036,3336,3536,4436,5436,6036 /A K
›
624.237
›

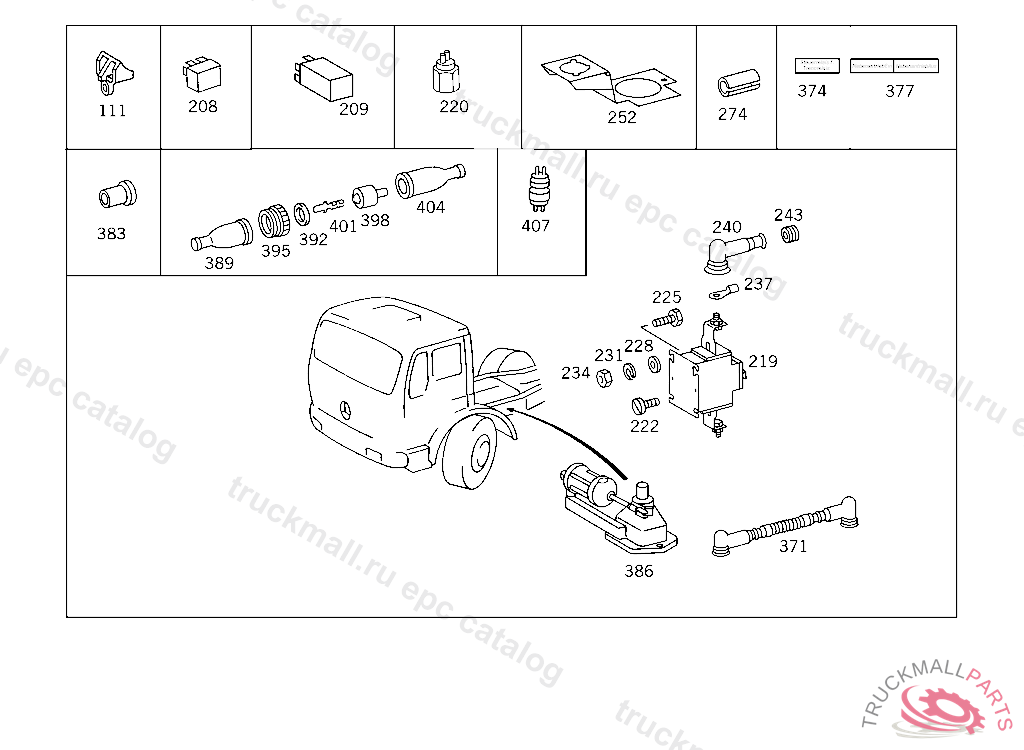

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
›
001 P.T.O. ELECTRICAL EQUIPMENT IL.5
Mercedes N000084005402 - Болт
2636,2645 AF, 3036,3336,3536,4436,5436,6036 /A K 624.237
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 P.T.O. ELECTRICAL EQUIPMENT IL.5
Поз.
Артикул
Описание
111
A0005462243
BRACKET CABLE HARNESS MOUNTING
208
A0005459205
RELAYA32/K6
209
A0008214247
RELAY TIME-LAG A51
219
A6995451034
SWITCH (OVERLOAD PROTECTOR)
220
A0005455414
SWITCH SUPPLY PRESSURE,5 966147
220
A0035457514
SWITCH AXLE LOAD LIMITATION
222
N000084005402
SCREW
225
A0009909704
SCREW , Replaced By: A0009909604
225
A0009909604
SCREW RELAY TO BRACKET
228
N009021005205
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
231
N912006005002
LOCK WASHER STEP SWITCH
234
A0009907650
NUT CONTROL UNIT TO APPARATUS PANEL
237
N046234010001
CABLE SHOE BATTERY CABLE
240
A6205460035
BOOT NEG. CABLE
243
A6995440996
GROMMET , Replaced By: N046320021001
243
N046320021001
SCREW CONNECTION OVERLOAD PROTECTOR TO BRACKET
252
A6255204541
BRACKET MAINTENANCE INDICATOR
274
A6995440096
GROMMET REAR
371
A6995404839
ELECTRIC CABLE
374
A6995452400
MARKING STRIP
377
A6995452500
MARKING STRIP
383
A6995455128
PROTECTIVE CAP PLUG SOCKET
383
A6995455028
PROTECTIVE CAP PLUG SOCKET
383
A6995454928
PROTECTIVE CAP PLUG SOCKET
386
A0005455408
SWITCH (BATTERY MASTER SWITCH),4 4754384 695240
389
A0029970781
GROMMET
392
A0019906440
WASHER
395
A0009904954
NUT
398
A0055454528
PIN BUSHING HOUSING 4-POLE
401
A0025450628
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
404
A0009970381
GROMMET3.0 MM
407
A0065457328
PLUG
999
A0005400624
DIODE CASE AUXILIARY HEATER
999
A6995450603
CAP (BLIND PLUG SOCKET)
