Mercedes
›
TRUCK
›
2636,2645 AF, 3036,3336,3536,4436,5436,6036 /A K
›
624.237
›
46 STEERING
›

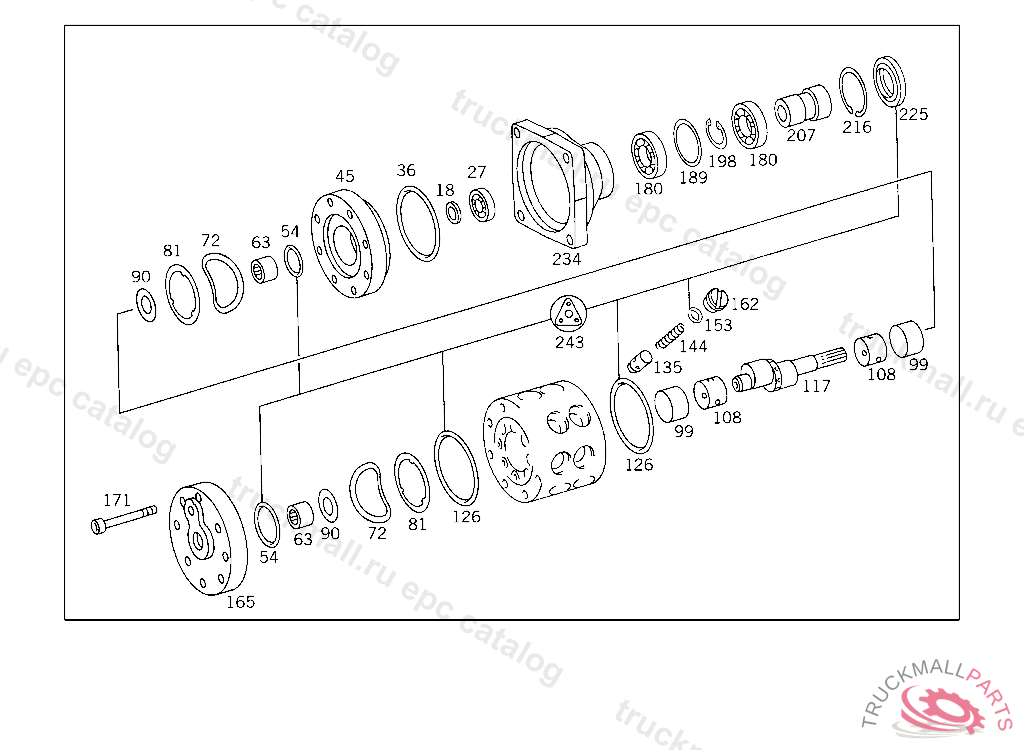

001 INSTALLATION OF STEERING HYDRAULIC SYSTEM IL.1
Mercedes N000472062000 - SICHERUNGSRING
2636,2645 AF, 3036,3336,3536,4436,5436,6036 /A K 624.237
46 STEERING - 001 INSTALLATION OF STEERING HYDRAULIC SYSTEM IL.1
Поз.
Артикул
Описание
18
N000471020001
LOCK RING
27
N000625900200
GROOVED BALL BEARING
36
A0239979748
SEAL RING P.T.O.
36
A0109977348
SEAL RING , Replaced By: A0239979748
45
A0004665405
COVER
54
A0119978948
SEAL RING
63
A0049819510
NEEDLE BEARING
72
A0004661875
WASHER
81
A0004660093
SPRING
90
A0004661852
SPACER WASHER
99
A0004661150
BUSHINGTO 001 466 16 01
99
A0004660650
BUSHING , Replaced By: A0004661150
99
A0004660950
BUSHING
108
A0004660750
BUSHING
117
A0004662520
DRIVE SHAFT
126
A0119979048
SEAL RING
135
A0004662583
PISTON
144
A0059934001
SPRING
153
A0069978648
SEAL RING
162
A0004660871
SCREW
165
A0004669505
COVER
171
N000912010164
SCREWTO 001 466 16 01
180
N000625506007
GROOVED BALL BEARING
189
A0004662475
WASHER
198
N000471035000
LOCK RING. RETAINING RING OIL PUMP TO TRANSMISSION CASE
207
A0004660858
CONNECTOR
216
A0039945241
LOCK STEERING KNUCKLE,TOP AND BOTTOM
216
N000472062000
LOCK RING
225
A0149972547
SEAL RING
234
A0004661145
FLANGE
243
A0004600861
GASKET KIT POWER STEERING PUMP AT TRANSMISSION TO 001 466 16 01
243
A0004603361
GASKET KIT POWER STEERING PUMP AT TRANSMISSION
999
A0004604680
GASKET KIT (EMERGENCY STEERING PUMP)
