Mercedes N000965006040 - Болт

2636,2645 AF, 3036,3336,3536,4436,5436,6036 /A K 624.237

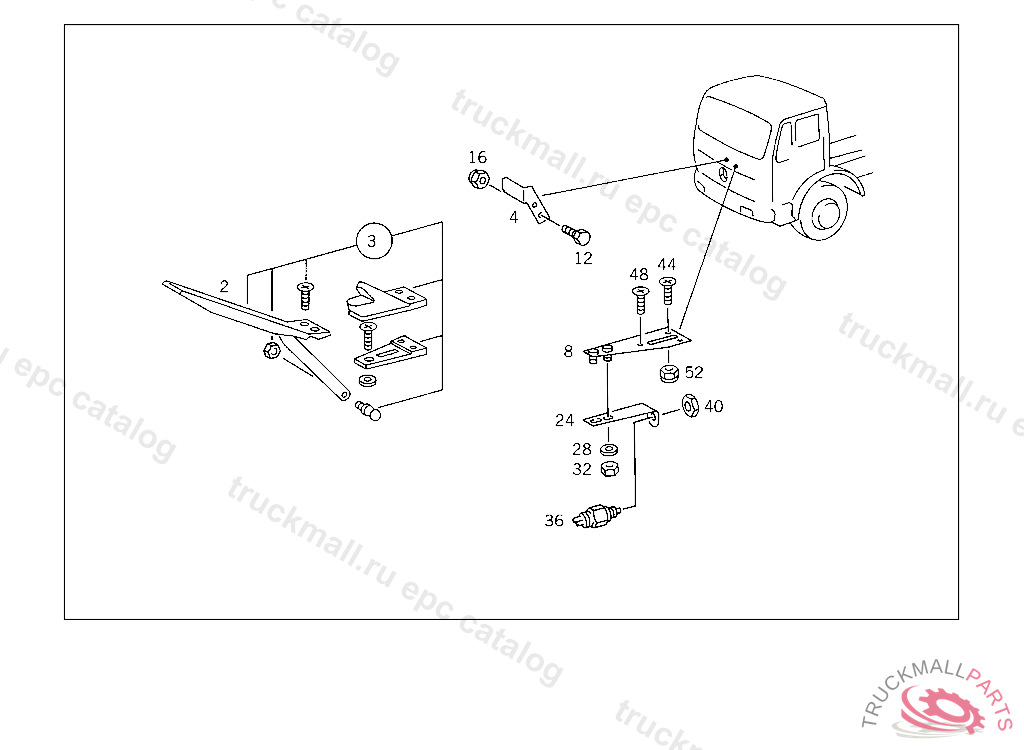

30 CONTROL - 001 CONTROL IL. 1

Поз.
Артикул
Описание
2
A6153000004
ACCELERATOR PEDAL , Replaced By: A6243000104
2
A6243000104
ACCELERATOR PEDAL , Replaced By: A6243000304
3
A6243000304
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
4
A6243010144
ANGLE ACCELERATOR PEDAL
8
A6243000040
BRACKET IDLING SWITCH
12
N000933006102
SCREW COVER PLATE TO BRACKET
16
N913004006003
NUT , Replaced By: N910113006001
16
N910113006001
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
24
A6243010444
ANGLE IDLING SWITCH
28
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
28
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
32
N000934006000
NUT , Replaced By: N304032006004
32
N304032006004
NUT SPRING-LOADED PUSH ROD
36
A0015459414
SWITCH CONTROL SHAFT
40
N000439014203
NUT , Replaced By: N308675014001
40
N308675014001
NUT JOINT TO BRACKET
44
N000965006077
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
48
N000965006040
SCREW PEDAL TO CAB FLOOR
52
N913004006003
NUT , Replaced By: N910113006001
52
N910113006001
NUT COMPRESSED AIR LINE TO LEFT SIDE MEMBER
999
A6153000104
PAD ACCELERATOR PEDAL
999
A6553010093
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
N007991005007
SCREW ACCELERATOR PEDAL
