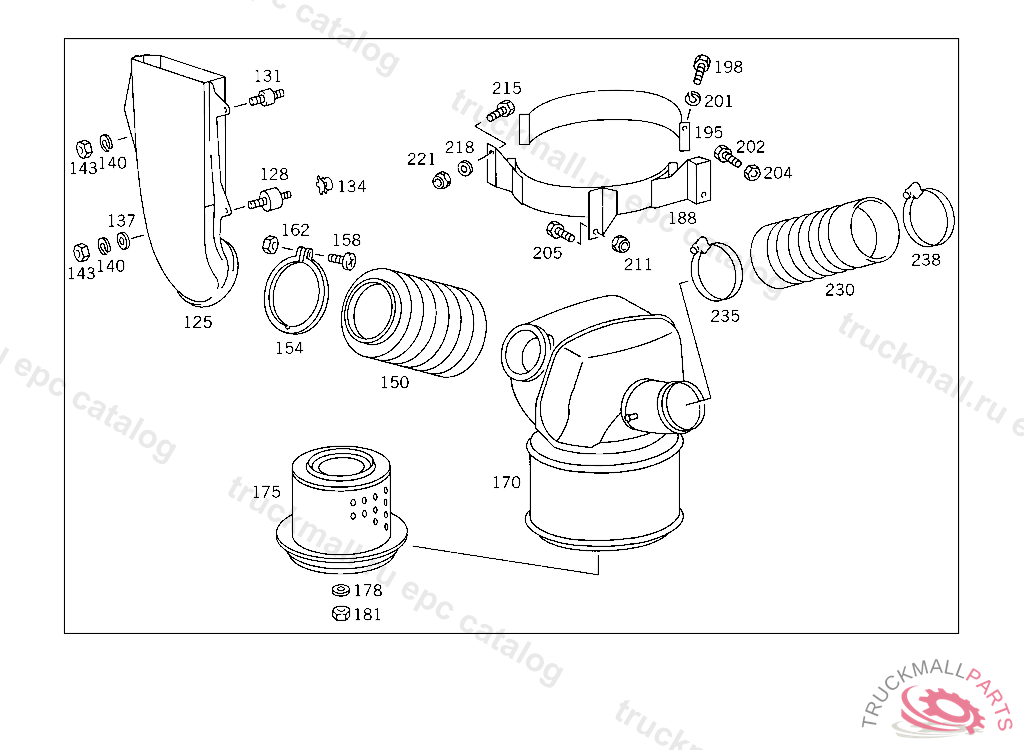

Поз.
Артикул
Описание
125
AIR INTAKE PIPE RIGHT, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
125
AIR INTAKE PIPE LEFT, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
128
BUFFER AIR INTAKE PIPE TO CAB, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
131
BUFFER AIR INTAKE PIPE TO CAB, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
134
NUT RETAINER AIR INTAKE PIPE TO CAB, UP TO IDENT NO.4 872645, FROM IDENT NO. SEE GROUP 83
137
WASHER , Replaced By: N000125008443
137
WASHER EXHAUST MUFFLER TO STRAP
140
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
143
NUT
150
BOOT AIR CLEANER TO CAB
154
CLAMP BOOT TO INTAKE PIPE
158
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER,5 946572
162
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
170
AIR CLEANER
170
AIR CLEANER , Replaced By: A0110942602
170
AIR CLEANER
170
AIR CLEANER
170
AIR CLEANER , Replaced By: A0140948802
170
AIR CLEANERMANN & HUMMEL,4 785295
175
FILTER ELEMENT
175
FILTER ELEMENTT0 010 094 15 02
178
WASHER FELT
181
NUT
188
SUPPORT ,K 000843, Replaced By: A6505200333, +002N000961016009, +002N913004016004
188
SUPPORT AIR CLEANER,K 000844
188
SUPPORT , Replaced By: A6565200033
188
SUPPORT AIR CLEANER
188
SUPPORT ,K 000843, Replaced By: A6505200433, +002N000961016009, +002N913004016004
188
SUPPORT AIR CLEANER
188
SUPPORT , Replaced By: A6565200133
188
SUPPORT AIR CLEANER,4 785295
195
STRAP AIR CLEANER TO SUPPORT
195
STRAP AIR CLEANER
198
SCREW , Replaced By: N304017008034
198
SCREW BRACKET TO CROSS CONNECTION STRUT
201
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
202
SCREW , Replaced By: N308676014020
202
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
202
SCREW AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT,K 000844
204
NUT , Replaced By: N910113014001
204
NUT BRACKET TO SIDE MEMBER
204
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
204
NUT COMBINATION CYLINDER TO BEARING BRACKET
205
SCREW , Replaced By: N308676012026
205
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
211
NUT SUPPORT TO SIDE MEMBER
215
SCREW END PIECE TO EXHAUST PIPE M 10X25
218
WASHER , Replaced By: N000125010532
218
WASHER RADIATOR TO RUBBER MOUNTING
221
NUT , Replaced By: N910113010000
221
NUT STRAP TO BRACKET
230
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
230
HOSE , Replaced By: A6205280782
230
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
235
CLAMP , Replaced By: A0059971490
235
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
235
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
235
CLAMP , Replaced By: N000000000678
235
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
235
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
238
CLAMP , Replaced By: N000000000678
238
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
238
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
