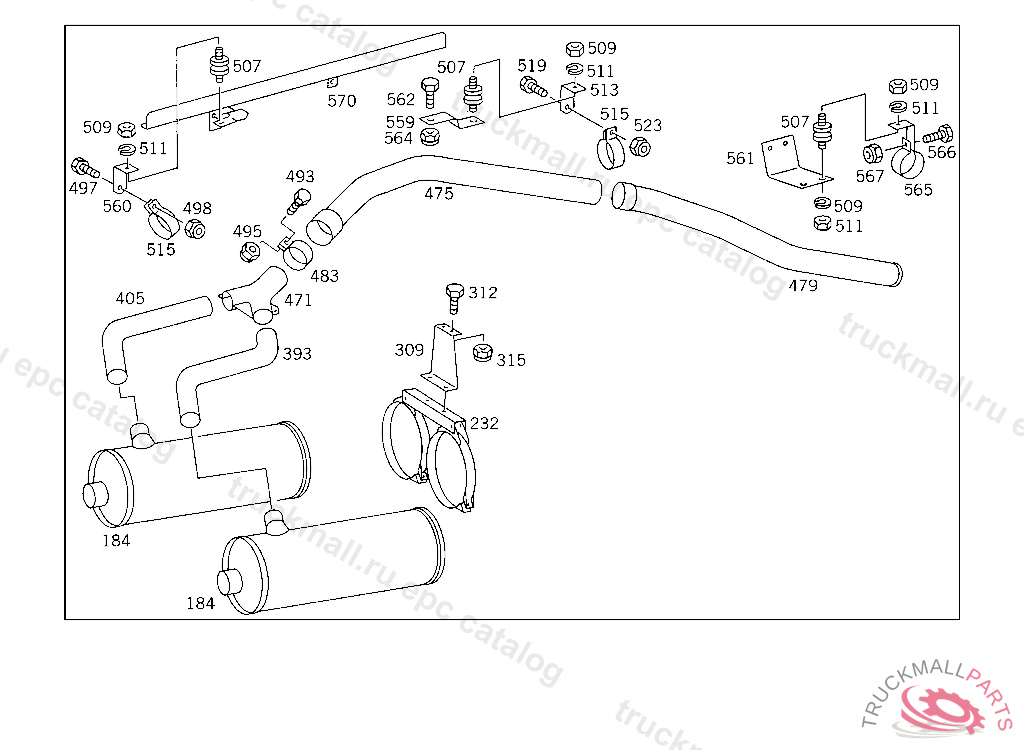

Поз.
Артикул
Описание
184
EXHAUST MUFFLER
232
STRAP EXHAUST MUFFLER TO BRACKET
232
SUPPORT , Replaced By: A6204900441
309
SUPPORT EXHAUST MUFFLER TO FRAME
312
SCREW BRACKET TO SIDE MEMBER
312
SCREW , Replaced By: N304017010002
315
NUT , Replaced By: N910113010000
315
NUT STRAP TO BRACKET
393
REAR EXHAUST PIPE FROM LEFT EXHAUST MUFFLER TO CONNECTION FITTING
405
REAR EXHAUST PIPE FROM RIGHT EXHAUST MUFFLER TO CONNEC TION FITTING
471
FITTING CONNECTOR
475
REAR EXHAUST PIPE TAIL PIPE,FRONT
479
END PIECE , TO BE ADAPTED DURING ASSEMBLY
483
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
483
CLAMP , Replaced By: N071555100501
493
SCREW , Replaced By: N304017008027
493
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
495
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
495
NUT , Replaced By: N913004008001
497
SCREW END PIECE TO EXHAUST PIPE M 10X25
498
NUT STRAP TO BRACKET
498
NUT , Replaced By: N910113010000
507
RUBBER BUFFER BRACKET TO SUPPORT
509
NUT BRACKET TO SUPPORT AND TO END PIECE
511
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
513
BRACKET EXHAUST PIPE
515
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
515
CLAMP , Replaced By: N071555094502
519
SCREW , Replaced By: N304017010002
519
SCREW BRACKET TO SIDE MEMBER
523
NUT STRAP TO BRACKET
523
NUT , Replaced By: N910113010000
559
BRACKET TAIL PIPE,FRONT
560
BRACKET COVERING
560
BRACKET , Replaced By: A6205240140
561
BRACKET TAIL PIPE TO SIDE MEMBER
562
SCREW CONSOLE TO SIDE MEMBER
562
SCREW , Replaced By: N308676012012
562
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
564
NUT SUPPORT TO SIDE MEMBER
565
BRACKET TAIL PIPE TO BRACKET
566
SCREW END PIECE TO EXHAUST PIPE M 10X25
567
NUT STRAP TO BRACKET
567
NUT , Replaced By: N910113010000
570
PROTECTIVE PLATE ELECTRIC CABLES
999
WASHER , Replaced By: N007349013003
999
CLAMPING PIECE EXHAUST MANIFOLD TO CYLINDER HEAD
999
WASHER , Replaced By: A3879900040
999
INTERMEDIATE PIECE RIGHT FRONT
999
BRACKET EXHAUST MUFFLER,RIGHT REAR
999
BRACKET EXHAUST MUFFLER,RIGHT FRONT
999
CONNECTOR LEFT FRONT
999
CONNECTOR RIGHT FRONT
999
BRACKET EXHAUST MUFFLER,LEFT FRONT
999
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
