Поз.
Артикул
Описание
5

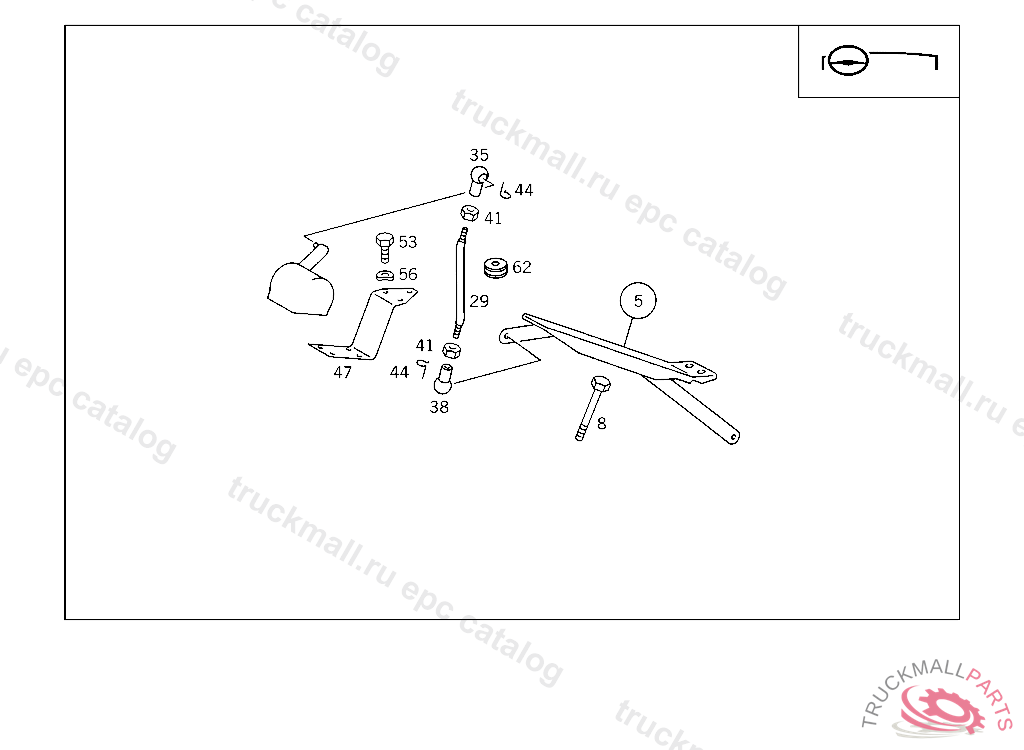

ACCELERATOR PEDAL PARTS KIT
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
5
ACCELERATOR PEDAL , Replaced By: A6583000004
8
SCREW , Replaced By: N304017008028
8
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
8
SCREW STRAP TO BRACKET
29
ROD FROM ACCELERATOR PEDAL TO SENDER UNIT,K 022896
35
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
38
BALL SOCKET PULL ROD TO LEVER
41
NUT BALL PIVOT TO LEVER
44
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
47
BRACKET SENDER UNIT
53
SCREW , Replaced By: N304017006016
53
SCREW PUMP TO BRACKET
56
SPRING WASHER LICENSE PLATE TO BRACKET
62
GROMMET FOR PASSAGE OF LINE
999
NUT AT FILTER BRACKET
999
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
999
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
999
ROD LOAD SENSOR CONTROL
999
STOP ACCELERATOR PEDAL
999
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
999
STOP , Replaced By: A3813010041
999
SHIM ACCELERATOR PEDAL
999
BOOT ACCELERATOR PEDAL
999
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
999
ROD LOAD SENSOR CONTROL
999
LEVER INTERMEDIATE BEARING
999
LEVER INTERMEDIATE BEARING
999
ACCELERATOR PEDAL , Replaced By: A6583000004
999
LEVER (INTERMEDIATE LEVER)
999
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
999
ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER
999
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
999
BRACKET WIRE CABLE TO AIR BAFFLE BRACKET
999
KNOB IDLING ADJUSTMENT
999
ROD , Replaced By: A6523001315
999
BEARING TUBE CONTROL SHAFT
999
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
999
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
999
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
999
WIRE CABLE MANUAL CONTROL
999
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
LEVER , Replaced By: N071805010204, +002N071805010403, +002N304032006008, +001N900331006615
999
LEVER (INTERMEDIATE LEVER)
999
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
999
LEVER (INTERMEDIATE LEVER)
999
SCREW ACCELERATOR PEDAL TO CAB M 6X25
999
SCREW ACCELERATOR PEDAL TO FLOOR PLATE M 6X20
999
CLAMPING SLEEVE BEARING TUBE
999
SCREW PILLAR TO BRACKET AND TO FRONT PANEL
999
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
