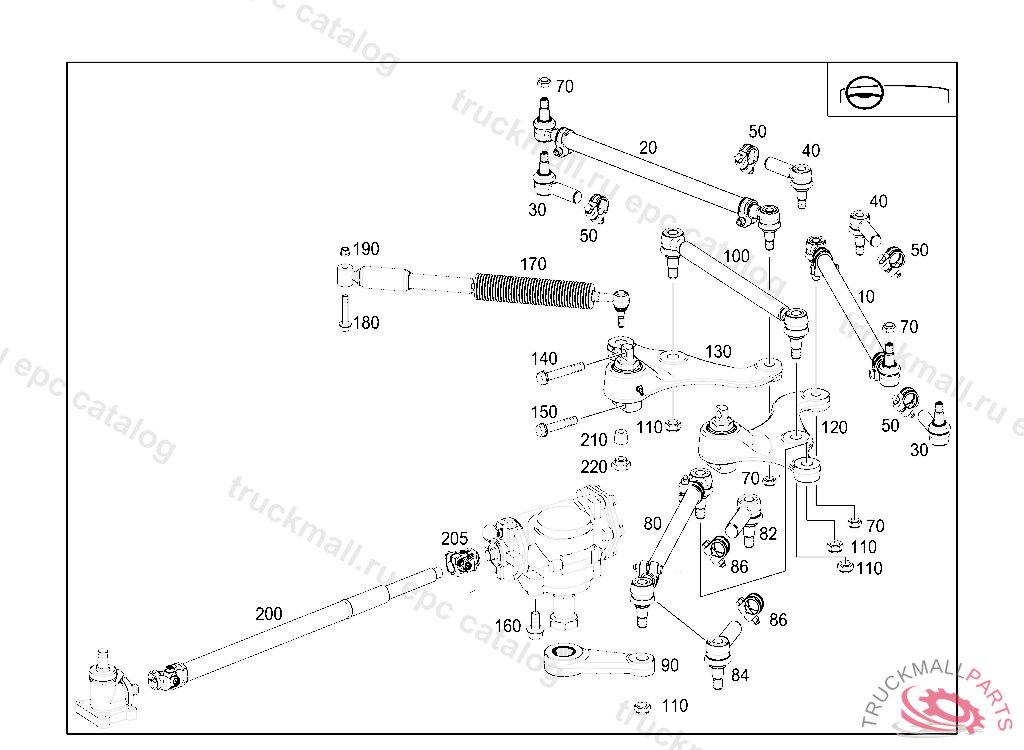

Поз.
Артикул
Описание
10
TIE ROD LEFT
20
TIE ROD RIGHT
30
DRAG LINK END L.H. THREAD
40
DRAG LINK END R.H. THREAD
50
CLAMP
70
NUT STEERING WHEEL TO STEERING COLUMN
80
DRAG LINK
82
DRAG LINK END L.H. THREAD TO A 662 463 12 15
84
DRAG LINK END R.H. THREAD
86
CLAMP
90
PITMAN ARM
100
DRAG LINK CENTRAL
110
NUT DRAG LINK END M 24X1.5
120
INTERMEDIATE LEVER LEFT
130
INTERMEDIATE LEVER RIGHT
130
INTERMEDIATE LEVER (STEERING SHOCK ABSORBER)
140
HEXAGON HEAD BOLT STEERING BRACKET TO FRAME M18X1.5X120,V 207570
140
HEXAGON HEAD BOLT BEARING BRACKET TO FRAME M18X1.5X120
150
HEXAGON HEAD BOLT SHOCK ABSORBER TO TOP BRACKET M16X1.5X100
160
HEXAGON HEAD BOLT STEERING M20X1.5X35, Replaced By: N000000005397
160
HEXAGON HEAD BOLT STEERING M20X1,5X35MM
170
SHOCK ABSORBER
180
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
180
HEXAGON HEAD BOLT STEERING SHOCK ABSORBER TO BRACKET, Replaced By: N910105014009
190
NUT SUPPORT TO FRAME
190
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
200
STEERG. WORM SECTOR SHAFT
205
DRIVE FLANGE
210
BUSH WITH INNER CHAMFER
220
CLAMPING RING
