Главная
›
Mercedes
›
BUS
›
O 530 NG3 UES. E 2
›
628.020
›
83 HEATING AND VENTILATION
›

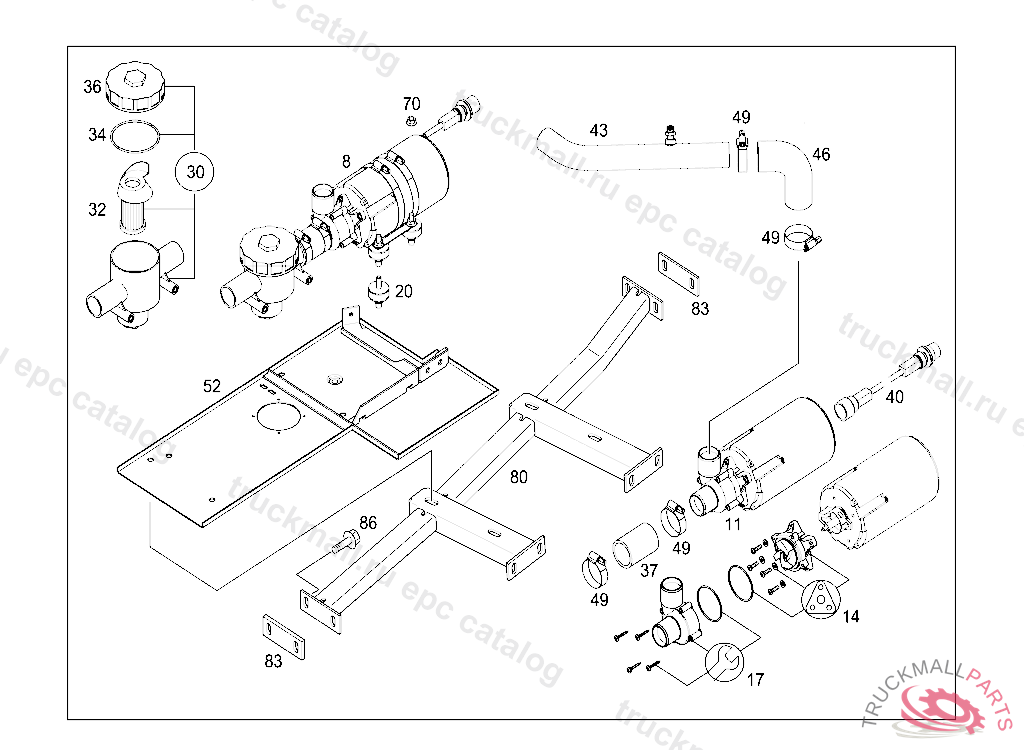

360 RECIRCULATING PUMP
Mercedes A6288219001 - LU ZB LEITUNGSSATZ A
O 530 NG3 UES. E 2 628.020
83 HEATING AND VENTILATION - 360 RECIRCULATING PUMP
Поз.
Артикул
Описание
8
A6288350064
PUMP CIRCULATION PUMP U 4851, UP TO IDENT NO. 101686
8
A0028351864
PUMP COMPLETE U 4851, Replaced By: A6288350064
11
A0028352964
PUMP CIRCULATION PUMP 2,U4856
14
A0018356798
GASKET KIT REPAIR KIT
17
A0008352039
REPAIR KIT PUMP COVER
20
A0008330194
BUFFER , Replaced By: A3225040212
20
A3225040212
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
30
A0008322072
WATERFILTER
32
A0018356947
FILTER
34
A0299976448
SEAL RINGTO A 000 832 20 72, Replaced By: A0018358398
34
A0018358398
SEAL
36
A0008302652
COVERINGTO A 000 832 20 72
37
A0008325923
HOSE110MM
37
A0008322694
HOSE38X4,5X65MM
40
A6288219001
ELECTRIC CABLE
43
A0078304515
PIPE LINE
46
A0018320094
HOSE FROM HEATING WATER PIPE TO HEATER
49
N000000000671
CLAMP
52
A0008352411
PLATE
70
N913023008003
NUT HORN TO BRACKET M8
80
A6288300165
FRAME
83
A6288350411
PLATE3MM
83
A6288350511
PLATE1MM
86
N910105008041
SCREW , Replaced By: N910143008000
86
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
