Mercedes N000000006657 - Штифт 20 X 28

O 530 NG3 UES. E 2 628.020

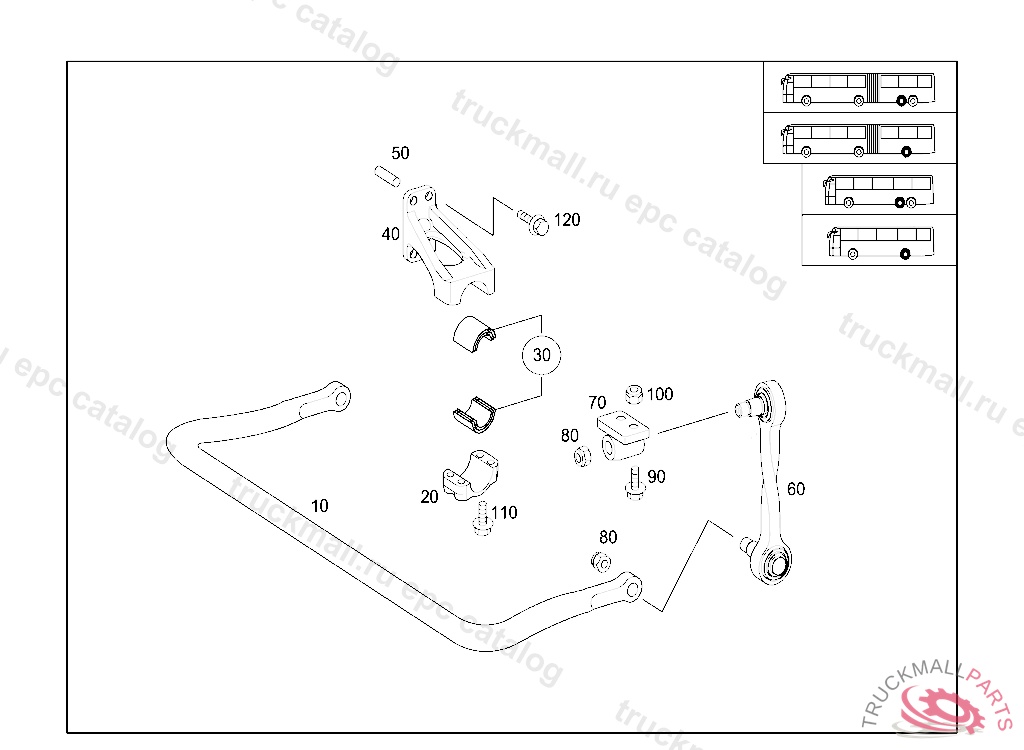

32 SPRINGS AND SUSPENSION - 560 PNEUMATIC SUSPENSION & STABILIZATION ON REAR AXLE IL. 1

Поз.
Артикул
Описание
10
A6283260265
TORSION BAR
20
A6283260060
BEARING HOUSING. HOUSING
30
A6283220050
BUSHING
40
A6283260563
BEARING BRACKET
50
N000007020111
CYLINDRICAL PINM6X28, Replaced By: N000000006657
50
N000000006657
CYLINDER PINM6X28
60
A6283201389
ROD REAR AXLE,RIGHT
60
A6283201289
ROD REAR AXLE,LEFT
70
A6283200043
BRACKET TORSION BAR TO BEARING BRACKET
80
A9709900051
NUT STEERING WHEEL TO STEERING COLUMN
90
N910105014008
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
100
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
100
N000000005662
NUT SUPPORT TO FRAME
110
N910105014019
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
110
N000000005721
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
120
N910105016003
SCREW. HEXAGON HEAD BOLT SHACKLE TO TORSION BAR AND TO CONSOLE M16X1.5X35
