Mercedes N000988010016 - ШАЙБА

O 530 NG3 UES. E 2 628.020

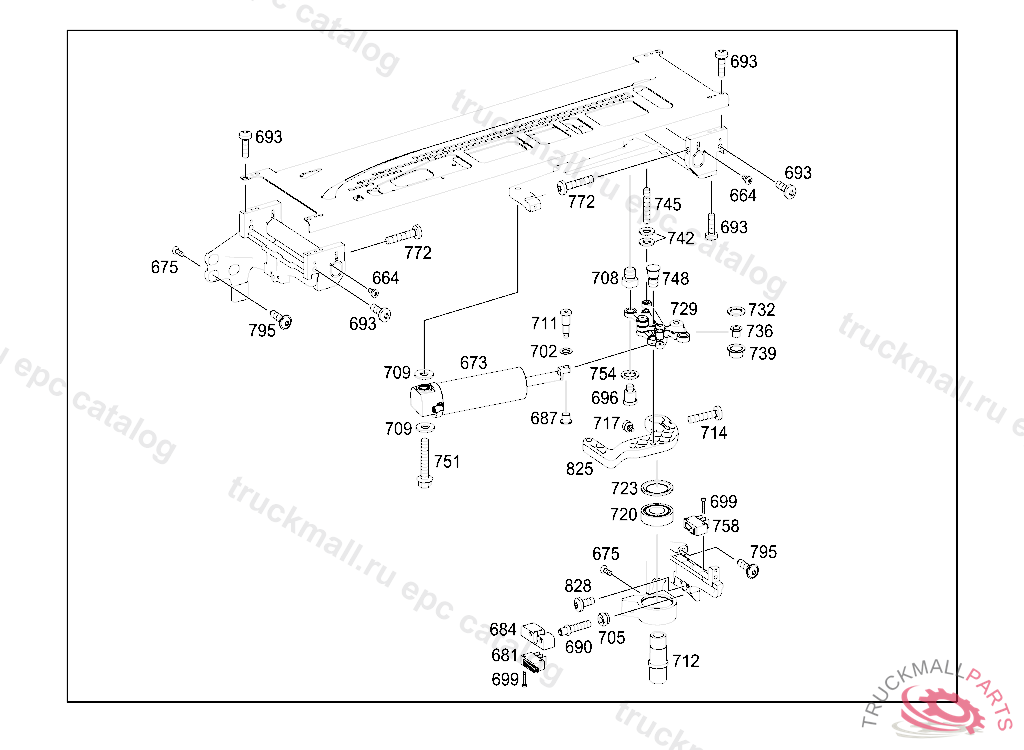

76 DOOR CONTROL - 010 ELECTRIC DOOR OPERATION PLUG-IN SLIDING DOOR IL. 4

Поз.
Артикул
Описание
664
N000000001883
HEXALOBULAR BOLT GAS CARTRIDGE TO ROOF FRAME, LEFT M5X10
673
A6287600277
CYLINDER GUIDE
675
A0029901120
SCREWM5 X 16 MM
681
A6289820122
MICROSWITCH WITH FLAG
684
A6287631814
BRACKET
687
A6289920110
COLLARED BUSHING
690
A6289911215
HINGE BOLT
693
N000000001428
HEXALOBULAR BOLT AIR CLEANER TO BRACKET
696
A6289911015
HINGE BOLT
699
N000000003259
HEXALOBULAR BOLTM3X16
702
N000988010016
FITTED WASHER AS REQUIRED 1.0 MM
705
N910118008000
NUT POWER CYLINDER TO SPRING SUPPORT
708
A6289900416
STUD BOLT
709
A2119900040
DISK
711
A6289910315
HINGE BOLT
712
A6287631469
CONNECTING PIPE SHAFT
714
N000000003123
HEXALOBULAR BOLT
717
A0009871739
RUBBER BUFFERTO A6277640038
720
A0089816725
BALL BEARING
723
A6287220708
COVERING
729
A6287602208
LOCK
732
A6289902082
SLIDING DISK
736
A6289920110
COLLARED BUSHING
739
A6289920010
COLLARED BUSHING
742
A6289901482
SLIDING DISK
745
A6289910115
HINGE BOLT
748
A6289910215
HINGE BOLT
751
N910105012011
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO CONSOLE M 12X1.5X60
754
A6289902082
SLIDING DISK
758
A6289820022
MICROSWITCH WITH ROLLER
772
N000000002192
HEXALOBULAR BOLTM8X45
795
A6289900029
SCREW
825
A6287661524
SINGLE-ACTING LEVER
828
N000000001437
HEXALOBULAR BOLTM8X20
999
N000000003755
WASHER
