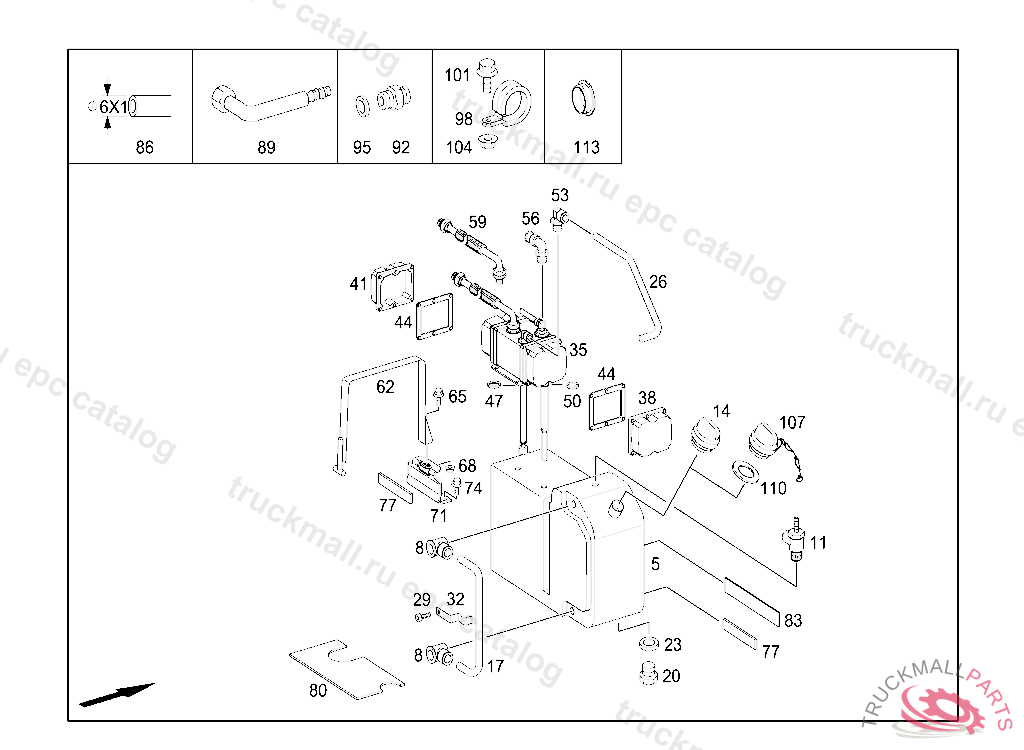

Поз.
Артикул
Описание
5
OIL TANK ENGINE OIL AUTOMATIC REPLENISHMENT " GROENEVELD "
8
ELBOW FITTING
11
ELBOW FITTING
14
CAP OIL REFILLING
17
PLASTIC PIPE. HOSE FLUID LEVEL INDICATOR 170 MM, ORDER BY THE METER
20
SCREW PLUG
23
SEAL RING SOLENOID VALVE A 18X24
26
HOSE , Replaced By: A0089979082
29
SCREW. CAP BOLTM4X8
32
BRACKET
35
CONTROL UNIT AT OIL TANK
38
COVER BLACK
41
COVER TRANSPARENT
44
FULL FACE GASKET
47
SEAL RING22,2X3,5 MM
50
SEAL RING17X3 MM
53
BANJO UNION
56
ELBOW FITTING DIA., 10MM
59
CABLE HARNESS
62
RETAINING STRAP
65
SCREW SHIFT LEVER TO BRACKET M8X30
68
NUT HORN TO BRACKET M8
71
BRACKET
74
SCREW BRACKET TO CAB REAR PANEL M 8X20
77
ELASTOMER BEARING120X20X5MM
80
ELASTOMER BEARING302X167X5MM
83
ELASTOMER BEARING240X39X5MM
86
PLASTIC PIPE RISING PIPE 4X6 MM
89
OIL LINE
92
FITTING COOLING WATER INLET FOR AIR COMPRESSOR
95
SEAL RING VALVE TO VALVE,K 025179
98
CLAMP10/15
98
CLAMP38/20
98
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
98
CLAMP LINE MOUNTING
98
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
98
CLAMP LINE MOUNTING 15-18 MM,V 207570
101
SCREW BRACKET AND CLAMP M6X20
104
NUT BRACKET TO FIRE WALL
107
CAP OIL FILLING
110
GASKET , Replaced By: A1020180080
113
EXPANSION PLUG LOADING FLOOR,FRONT D55 MM
