Mercedes N007985004136 - SCHRAUBE DIN 7985-A

230 E 124.004 200-300 9/89-10/92, 200D-300D 9/89-7/93

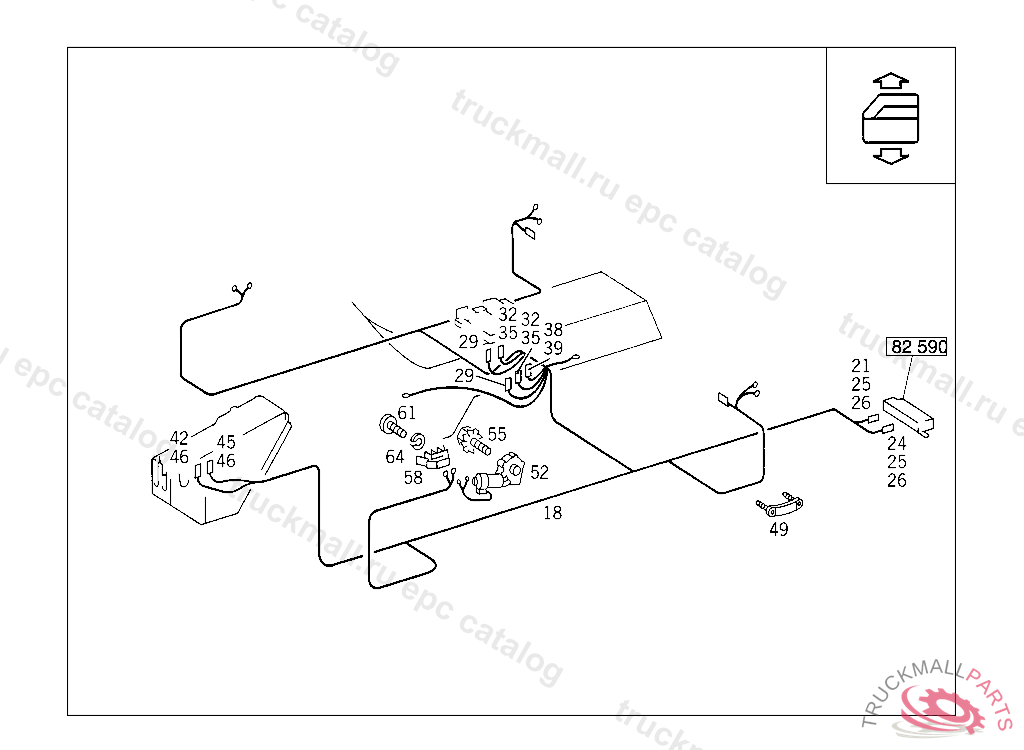

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 FOGLAMP SPECIAL WIRING (TYPE 123,124,126,201 SEE STANDARD MICROFICHE)
  • Поз.
    Артикул
    Описание
  • 18
    CABLE HARNESS FROM SWITCH CLUSTER TO FRONT AND REAR DOOR WINDOW REGULATOR MOTORS
  • 18
    CABLE HARNESS FROM SWITCH CLUSTER TO FRONT DOOR WINDOW REGULATOR MOTORS
  • 18
    CABLE HARNESS FROM SWITCH CLUSTER TO FRONT DOOR WINDOW REGULATOR MOTORS
  • 18
    CABLE HARNESS FROM SWITCH CLUSTER TO FRONT AND REAR DOOR WINDOW REGULATOR MOTORS
  • 21
    PLUG CONTROL UNIT OF COMFORT CONTROL
  • 24
    PLUG CONTROL UNIT OF COMFORT CONTROL
  • 25
    ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
  • 26
    ROUND PIN BUSHING4.0 MM
  • 29
    PIN BUSHING HOUSING ELECTRIC WINDOW REGULATOR SWITCH VORN
  • 32
    PIN BUSHING HOUSING ELECTRIC WINDOW REGULATOR SWITCH HINTEN
  • 35
    ROUND PIN BUSHING2.5 MM2
  • 38
    PIN BUSHING HOUSING SAFETY SWITCH
  • 39
    ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
  • 42
    PIN BUSHING HOUSING FUSE BOX H
  • 45
    PIN BUSHING HOUSING FUSE BOX "G"
  • 46
    ROUND PIN BUSHING4 MM2
  • 49
    CLIP MAIN CABLE HARNESS TO FRONT FLOOR
  • 52
    ELECTRIC MOTOR ELECTRIC WINDOW REGULATOR,RIGHT
  • 52
    ELECTRIC MOTOR ELECTRIC WINDOW REGULATOR,LEFT
  • 55
    SCREW ELECTRIC WINDOW REGULATOR MOTOR
  • 58
    SOCKET-TERMINAL STRIP BIPOLAR
  • 61
    SCREW ELECTRIC CABLE TO FUSE BOX
  • 64
    LOCK WASHER T-FITTING TO BRACKET
  • 999
    PIN BUSHING HOUSING WINDOW REGULATOR SWITCH TO REAR DOOR
