Mercedes N000125008443 - ШАЙБА

S 415 NF 2-TUERER 628.787

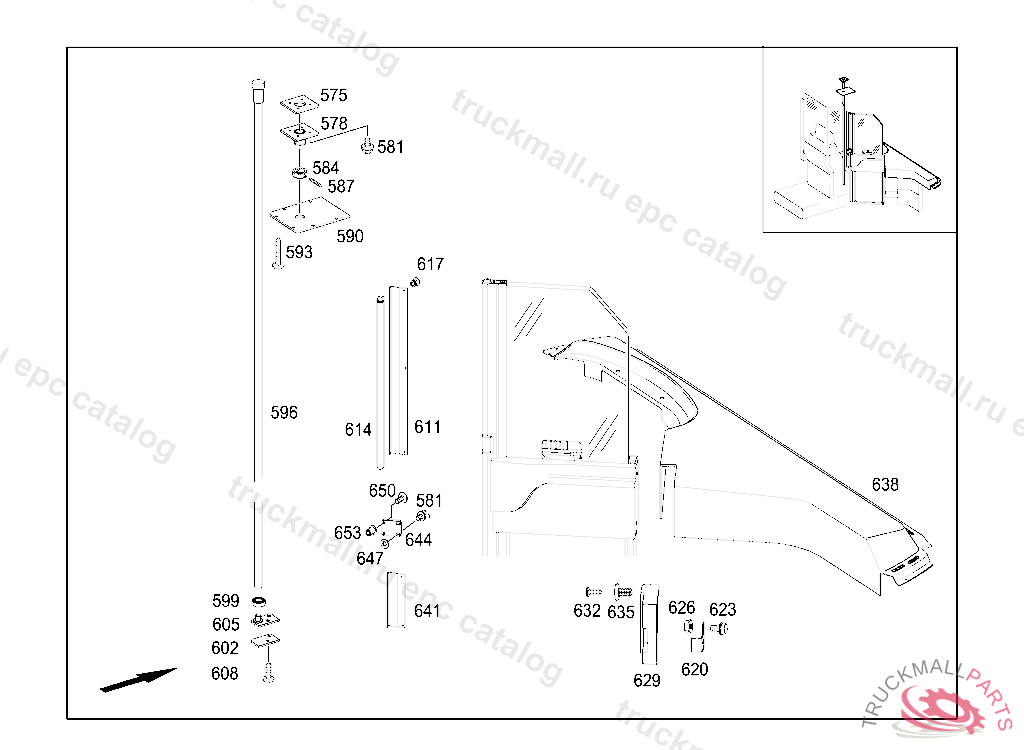

71 PARTITION PANELS - 120 DRIVER'S PARTITION PANEL IL. 6

Поз.
Артикул
Описание
575
A6288153911
PLATE
578
A6288100311
PLATE
581
N910105008013
SCREW PIPE ELBOW TO BRACKET M8X12
584
A6288151770
GRIP RAIL
587
N000914006109
THREADED PIN PLANETARY CARRIER
590
A6286950050
HEADLINER
593
N007983002231
SHEET METAL SCREW PANELLING TO CAB
596
A6288106850
GRIP RAIL
599
N000720032004
TAPERED ROLLER BEARING
602
A6288154411
PLATE
605
A6288100211
PLATE
608
N000965008002
SCREW BRACKET TO SHIM
611
A6287150312
ANGLE
614
A0029873852
RUBBER SEAL1410 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
617
N007337004014
RIVET
620
A6286820786
BRACKET
623
N910105008041
SCREW , Replaced By: N910143008000
626
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
629
A6286890007
COVERING
632
N007983002240
SHEET METAL SCREW LOUDSPEAKER COVERING TO REAR ARMREST
635
A0009881225
SLEEVE, CYLINDRICAL
638
A6286806906
PANELLING
641
A6287150212
ANGLE
644
A6287151514
BRACKET
647
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
650
N000000001875
HEXALOBULAR BOLT BRACKET TO SUPPORT M8X20
653
N913024008100
RIVET NUT. RIVETED NUT FEED LINE TO TRANSMISSION
999
A0005800499
SET OF TOOLS
999
A0008402102
TRUNK
999
A0009935907
SPRING
999
A6287110728
COVERING
