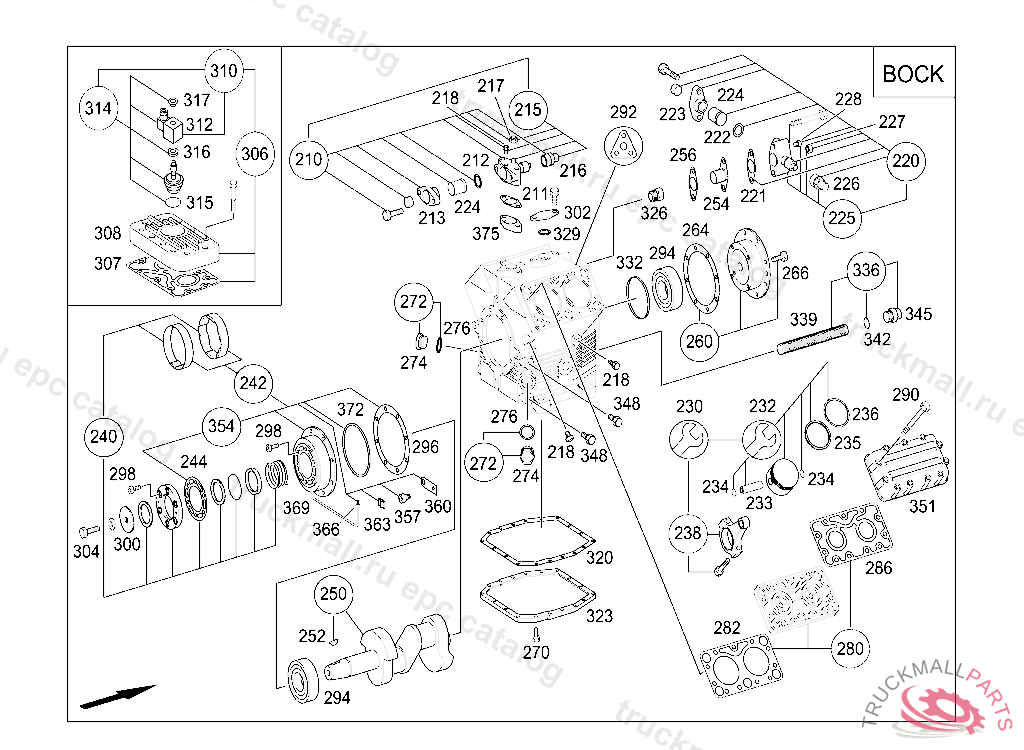

Поз.
Артикул
Описание
210
VALVE PARTS KIT
211
GASKET"KONVEKTA", UP TO IDENT NO. IN CASE OF KONVEKTA 096427, IN CASE OF WEBASTO 096251 EXCEPT FOR 096457,096458
212
GASKET34X42 MM
213
FLANGE16MM
215
VALVE
216
NUTM22X1,5
217
NUT7/16"
218
SCREW SRREW PLUG 1/8"
220
VALVE PARTS KIT
220
VALVE PARTS KIT
221
GASKET"KONVEKTA", UP TO IDENT NO. IN CASE OF KONVEKTA 096427, IN CASE OF WEBASTO 096251 EXCEPT FOR 096457,096458
222
GASKET34X42 MM
223
FLANGE16MM
224
PIPE SOCKET
225
VALVE
226
NUTM22X1,5
227
NUT7/16"
228
SCREW SRREW PLUG 1/8"
230
CONNECTING ROD REPAIR KIT FKX 40/655K
230
CONNECTING ROD REPAIR KIT FKX 40/560K
232
PISTON DIA., 60 MM FKX 40/560K
232
PISTON DIA., 65 MM FKX 40/655K
233
PISTON PIN15X10X50MM
234
LOCKFKX 40/655K
235
OIL SCRAPER RINGFKX 40/560K
235
PISTON RINGFKX 40/655K
236
PISTON RINGFKX 40/655K
236
TAPER-FACED RINGFKX 40/560K
238
CONNECTING ROD
240
BEARING CAP REPAIR KIT
242
SEAL RING
242
SEAL RING , Replaced By: A0001320360
244
GASKET
250
CRANKSHAFT
252
SPRING
254
STRAINER ON SUCTION SIDE
256
GASKET"KONVEKTA", UP TO IDENT NO. IN CASE OF KONVEKTA 096427, IN CASE OF WEBASTO 096251 EXCEPT FOR 096457,096458
260
OIL PUMP (PARTS KIT),OIL PUMP
264
GASKET
266
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
270
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
272
SIGHT GLASS
272
SIGHT GLASS22MM, TO A 629 830 94 60
274
SIGHT GLASS ELEMENT 22MM
274
SIGHT GLASS ELEMENT 18MM
276
SEAL RING
276
SEAL28.3X1.8MM
280
VALVE
282
SEAL
286
GASKET
290
HEXAGON HEAD BOLTM10X70
292
GASKET KIT
294
CYLINDR. ROLLER BEARING
296
GASKET FRONT
298
SCREW
300
WASHER CRANKSHAFT 50X12,5X8MM
302
FLANGE9MM, TO A 629 830 94 60
302
FLANGE15MM
304
HEXAGON HEAD BOLT BRACKET TO SIDE MEMBER M12X1.5X40
306
REGULATOR
307
GASKET
308
COVER
310
MAGNET
312
MAGNET COIL
314
VALVE INSERT
315
SEAL RING48X2,5MM
316
WASHER30X16X2,0MM
317
NUTM15X1
320
WEATHERSTRIP
323
PLATE
326
VALVE
329
SEAL RING
332
TOLERANCE RING
336
STRAINER
339
STRAINER
342
SEAL27X22X2MM
345
SCREW SRREW PLUG M22X1,5
348
FASTENER SRREW PLUG 1/4"
351
COVER
354
MOUNTING
357
SCREW
360
HOSE BRACKET
363
CLAMP
366
PLUG
369
PLATE
372
SEAL RING101.19X3.53MM
375
INTERMEDIATE PIECE
375
INTERMEDIATE PIECE15MM
375
INTERMEDIATE PIECE25MM
375
INTERMEDIATE PIECE WITH SCREW FITTING 34MM
999
GUIDE SIGNR134A
999
GUIDE SIGNDEA SE 55
