Mercedes A6288140911 - GEWINDEPLATTE

S 415 NF 2-TUERER 628.787

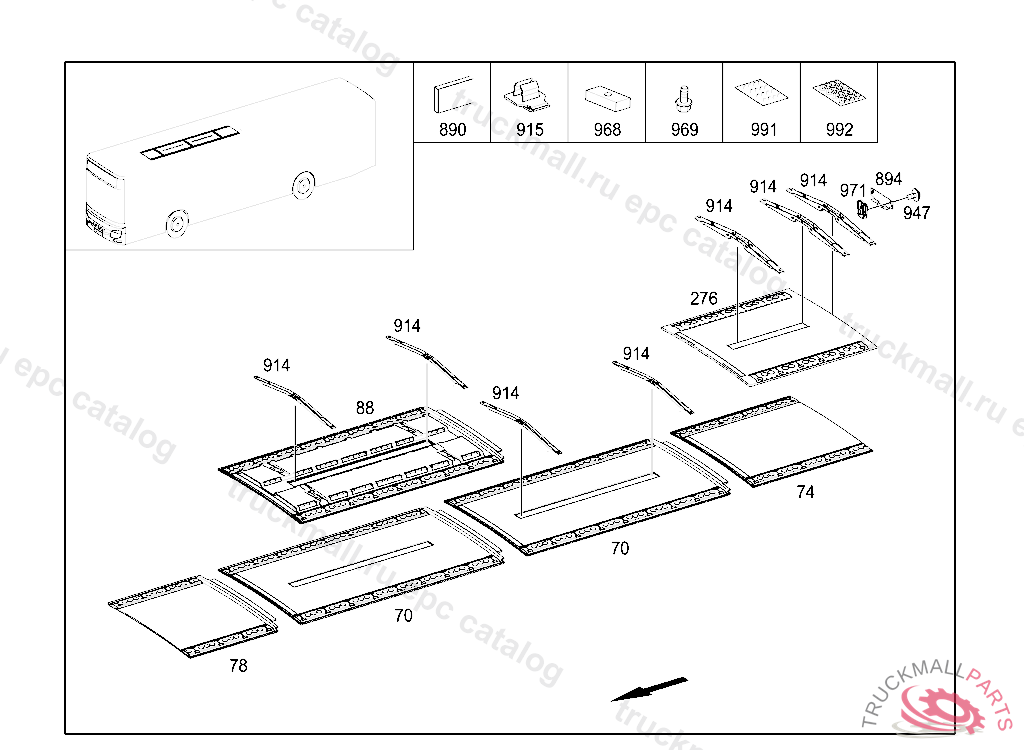

69 COVERING AND LINING - 090 ROOF INTERIOR PANELLING IL. 4

Поз.
Артикул
Описание
70
A6286903957
PANELLING , NR.7E85I.......I.......I.......I II
74
A6286904157
PANELLING , NR.7E85I.......I.......I.......I II
78
A6286904357
PANELLING , NR.7E85I.......I.......I.......I II
88
A6286900372
PANELLING
276
A6286909173
HEADLINER
890
A0029874825
PLASTIC SECTION VOLTAGE TRANSFORMER 290 MM, ORDER BY THE METER
894
A3046951014
BRACKET
914
A6286908714
BRACKET
914
A6286903514
BRACKET , UP TO PRODUCTION BREAKPOINT 14.01.10
915
A3116954614
BRACKET
947
N914007006064
COMBINATION BOLT , Replaced By: N304017006016
968
A6288140911
PLATE THREADED
969
N910105006002
HEXAGON HEAD BOLT
971
A0049941645
LOCK NUT. SPRING NUT MOUNTING PARTS
991
A0019832313
SOFT STRAP25 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
992
A0019832413
HOOK STRAP25 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
