Mercedes A6345520150 -

O 500 RSD / 2736/8X2/30 634.081

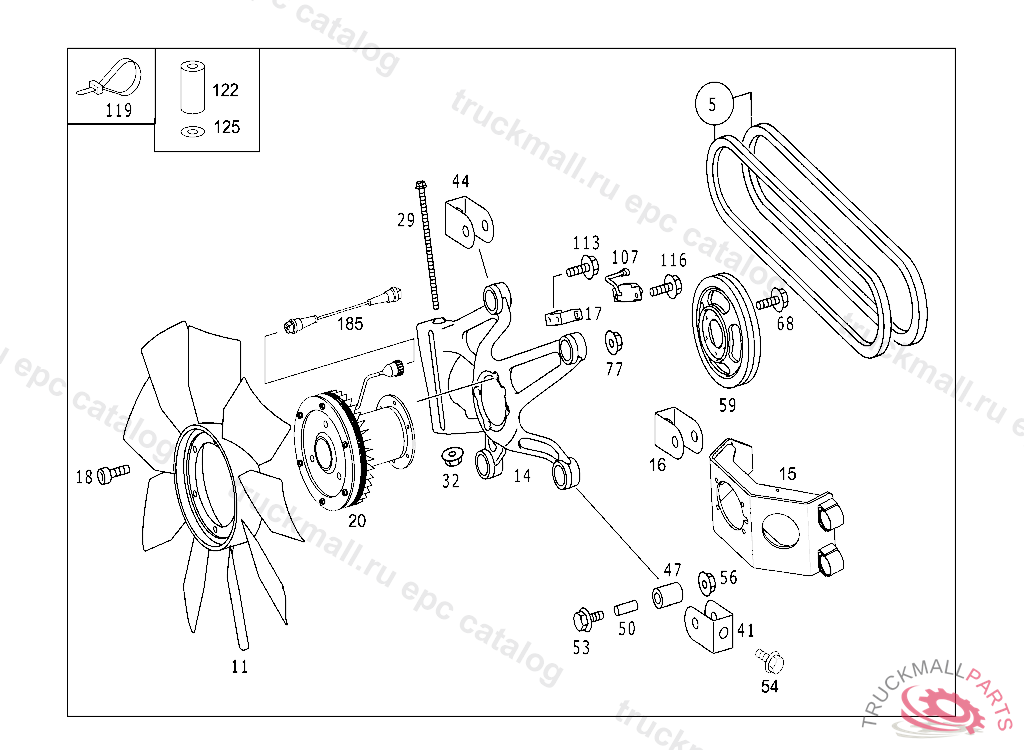

50 RADIATOR - 540 FAN DRIVE IL. 1

Поз.
Артикул
Описание
5
A6349970092
V-BELT PULLEY TO ENGINE 1385 MM
5
A3829970592
V-BELT SET2 PIECES 14 X 1400 MM
11
A4752050706
FAN
15
A6345002427
16
A6345000046
17
A3825000246
CLAMP
20
A3842000027
VISCOUS CLUTCH ELECTROMAGNETIC
29
A6349900001
SCREWM12X1.5X275 MM
41
A3825000046
CLAMP
47
A3028880224
MOUNTING
50
A3028880026
SLEEVE
53
N910105012017
HEXAGON HEAD BOLT. SCREW THROTTLE HOUSING TO FRONT EXHAUST PIPE M 12X70
54
N910105012007
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBERM 12X1.5X30
59
A6345060010
PULLEY
68
N910105008041
SCREW , Replaced By: N910143008000
77
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
107
A3825427417
SENDER UNIT ELECTRIC BELT MONITORING INDICATOR,C 082498
116
N910105008016
SCREW SHIFT LEVER TO BRACKET M8X30
119
A3459977590
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
122
A6345520150
BUSHING AIR CONDITIONER
125
N009021013101
WASHER , Replaced By: A3829907140
185
A6345403207
CABLE HARNESS POWER SAVER FAN1200MM
