Mercedes N916017016000 - SCHELLE 16-25

O 500 RSD / 2736/8X2/30 634.081

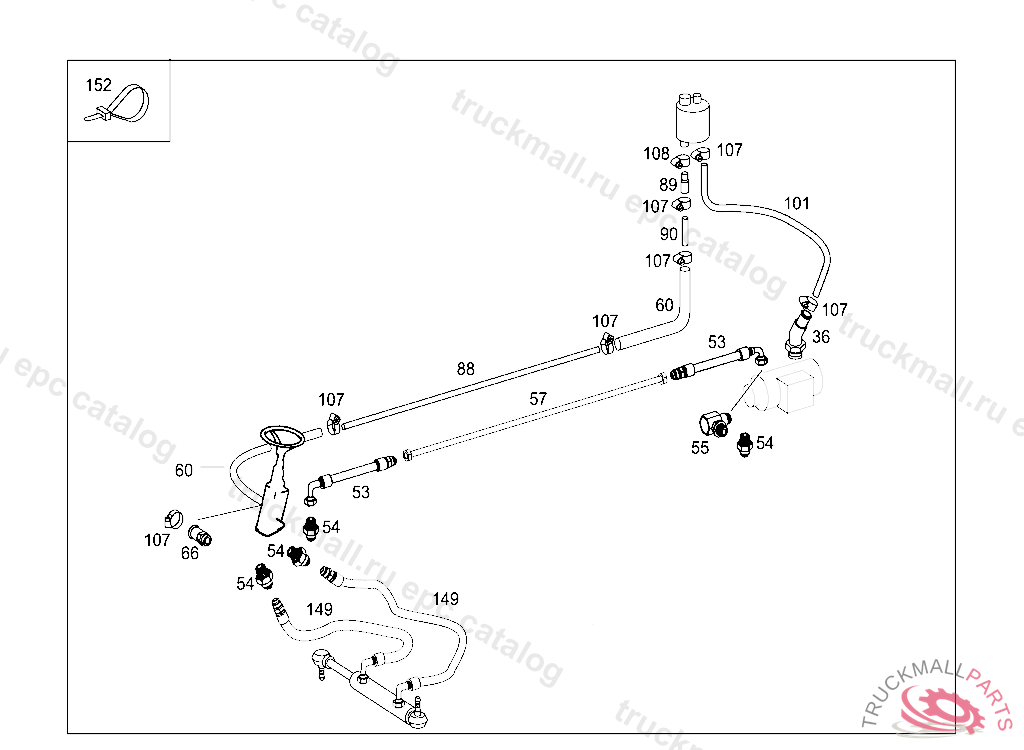

46 STEERING - 090 OIL TANK AND HYDRAULIC LINES IL. 3

Поз.
Артикул
Описание
36
A0059903870
ELBOW FITTING
53
A6349970852
54
A6349970576
THREADED PIPE CONNECTION DELIVERY LINE TO PUMP M16X1,5 / 3/4"
55
A6349970276
SEAL CONE LINE TO STEERING
57
A6344601543
LINE FROM HIGH PRESSURE HOSE TO HIGH PRESSURE HOSE
60
A6349970552
HOSE FROM PIPE LINE TO PIPE LINE,D 291813 TO BE ADAPTED DURING ASSEMBLY
66
A3829970376
FITTING. SEAL CONE LINE TO OIL PUMP
88
A6344660109
LINE LOW PRESSURE 22X1,5X6000
89
A3824667281
HOSE POWER STEERING
90
A3824660957
LINE FROM HOSE TO HOSE,D 291813
101
A6959977682
107
N916017020000
CLAMP , Replaced By: N000000000667
108
N916017016000
CLAMP HOSE TO FITTING AND TO OIL TANK
149
A6349971052
152
A3459977790
LOOM TIE LINE TO BRACKET 508 MM
152
A3459977590
CABLE TIE. LOOM TIE CABLE TO ALTERNATOR
