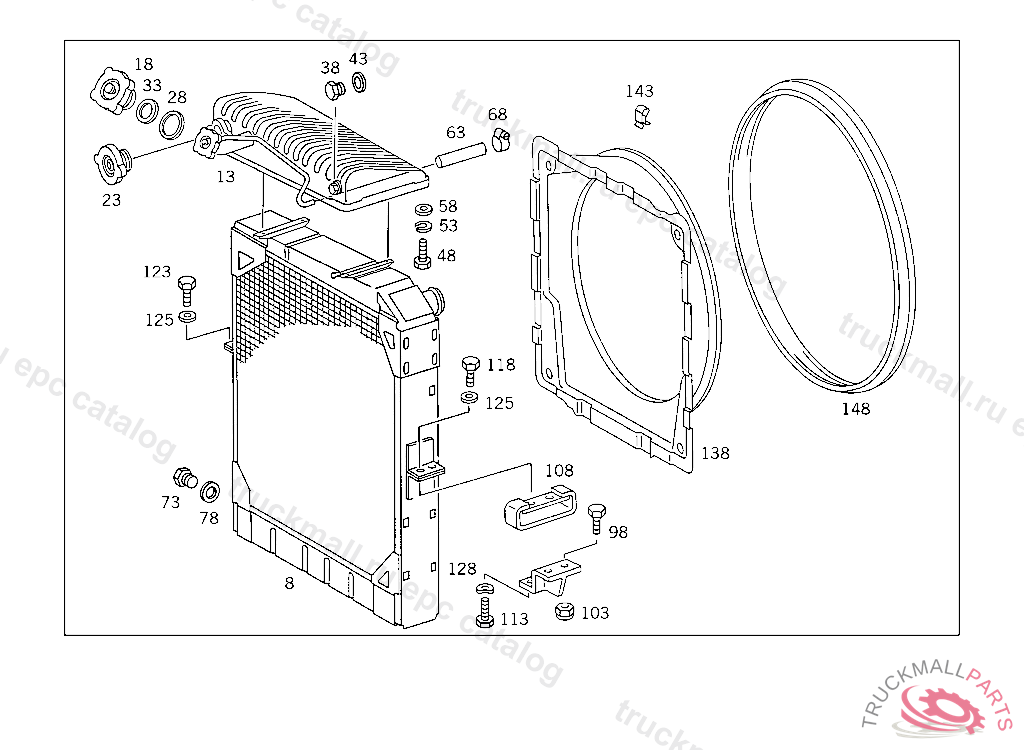

Поз.
Артикул
Описание
8
RADIATOR WATER BEHR
13
TANK EXPANSION TANK
18
RADIATOR CAP FILLER NECK
18
RADIATOR CAP FILLER NECK
23
RADIATOR CAP CENTRAL
23
RADIATOR CAP CENTRAL
28
GASKET O.D., 52 MM
33
GASKET O.D., 37 MM
38
SCREW PLUG WATER DRAIN
38
SCREW PLUG , Replaced By: N007604014101
43
SEAL RING FUEL LINE TO FEED PUMP
48
SCREW , Replaced By: N304017008016
48
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
53
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
58
WASHER EXHAUST MUFFLER TO STRAP
58
WASHER , Replaced By: N000125008443
63
HOSE OVERFLOW, EXPANSION TANK
68
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
68
CLAMP , Replaced By: N916017011001
73
SCREW PLUG WATER DRAIN
73
SCREW PLUG , Replaced By: N007604014101
78
SEAL RING FUEL LINE TO FEED PUMP
98
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
103
NUT SUPPORT TO SIDE MEMBER
108
RUBBER MOUNTING RADIATOR
113
SCREW , Replaced By: N304017010028
113
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
118
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
123
SCREW END PIECE TO EXHAUST PIPE M 10X25
125
WASHER , Replaced By: N000125010532
125
WASHER RADIATOR TO RUBBER MOUNTING
128
SPRING WASHER STEERING COLUMN BRACKET TO CAB
138
FAN SHROUD RADIATOR
143
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
148
BOOT FAN SHROUD TO FAN RING
999
HOSE , Replaced By: A0020945482
