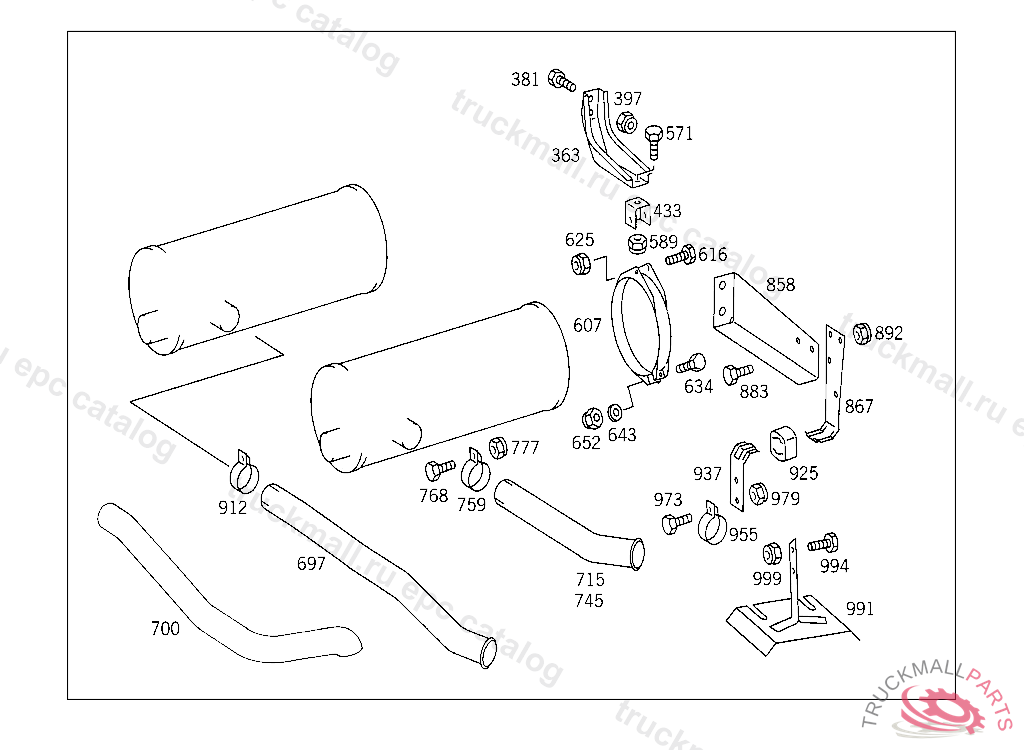

Поз.
Артикул
Описание
363
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER
363
CONSOLE EXHAUST MUFFLER,FRONT
363
CONSOLE REAR EXHAUST MUFFLER 276 MM
363
CONSOLE REAR EXHAUST MUFFLER 200 MM
381
SCREW , Replaced By: N308676014020
381
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
397
NUT , Replaced By: N910113014001
397
NUT BRACKET TO SIDE MEMBER
433
BRACKET EXHAUST MUFFLER
433
BRACKET AT SUPPORT
571
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
571
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
571
SCREW END PIECE TO EXHAUST PIPE M 10X25
589
NUT , Replaced By: N910113010000
589
NUT STRAP TO BRACKET
607
STRAP EXHAUST MUFFLER TO BRACKET
607
STRAP , Replaced By: A6204900441
616
SCREW STRAP TO BRACKET
616
SCREW STRAP TO BRACKET
616
SCREW , Replaced By: N304017010030
616
SCREW , Replaced By: N304017010053
616
SCREW PIPE ELBOW TO BRACKET M 10X50
616
SCREW PIPE ELBOW TO BRACKET M 10X50
625
NUT , Replaced By: N910113010000
625
NUT STRAP TO BRACKET
634
SCREW EXHAUST MUFFLER TO STRAP
643
WASHER , Replaced By: N000125008443
643
WASHER EXHAUST MUFFLER TO STRAP
652
NUT , Replaced By: N913004008001
652
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
697
REAR EXHAUST PIPE REAR,K 002403
697
REAR EXHAUST PIPE REAR,K 002403
697
REAR EXHAUST PIPE REAR
697
REAR EXHAUST PIPE REAR
697
REAR EXHAUST PIPE REAR
700
REAR EXHAUST PIPE REAR,K 002404
715
REAR EXHAUST PIPE REAR
715
REAR EXHAUST PIPE
715
REAR EXHAUST PIPE REAR
715
REAR EXHAUST PIPE REAR
715
REAR EXHAUST PIPE REAR
715
REAR EXHAUST PIPE REAR
745
REAR EXHAUST PIPE REAR
745
REAR EXHAUST PIPE REAR
759
CLAMP , Replaced By: N071555120502
759
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
759
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
759
CLAMP , Replaced By: N071555100501
759
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
759
CLAMP , Replaced By: N071555090502
759
CLAMP EXHAUST PIPE TO BRACKET
768
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
768
SCREW , Replaced By: N304017008027
768
SCREW BRACKET TO SIDE MEMBER
768
SCREW , Replaced By: N304017010002
777
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
777
NUT , Replaced By: N913004008001
777
NUT STRAP TO BRACKET
777
NUT , Replaced By: N910113010000
858
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER,5 557346
858
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER,5 557346
858
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
867
BRACKET TAIL PIPE ON THE RIGHT
867
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
867
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
867
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
867
BRACKET TAIL PIPE ON THE RIGHT
867
BRACKET TAIL PIPE ON THE RIGHT
883
SCREW BRACKET TO CROSS CONNECTION STRUT
883
SCREW , Replaced By: N304017008034
892
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
892
NUT , Replaced By: N913004008001
912
CLAMP EXHAUST PIPE TO BRACKET
925
DAMPING PAD PARTICLE FILTER
925
DAMPING PAD PARTICLE FILTER
937
BRACKET EXHAUST MUFFLER SUSPENSION
955
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
955
CLAMP , Replaced By: N071555090502
973
SCREW REAR EXHAUST PIPE TO MUFFLER
973
SCREW BRACKET TO SIDE MEMBER
973
SCREW BRACKET TO SIDE MEMBER
973
SCREW REAR EXHAUST PIPE TO MUFFLER
973
SCREW BRACKET TO SIDE MEMBER
973
SCREW REAR EXHAUST PIPE TO BRACKET M 10X80
973
SCREW BRACKET TO SIDE MEMBER
973
SCREW , Replaced By: N304017010002
979
NUT STRAP TO BRACKET
979
NUT STRAP TO BRACKET
979
NUT , Replaced By: N910113010000
991
PROTECTIVE PLATE REAR EXHAUST PIPE
994
SCREW PIPE CLAMP
994
SCREW , Replaced By: N304017008021
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3814923841
999
BRACKET EXHAUST MUFFLER TO CROSS MEMBER
999
BRACKET
999
CROSS MEMBERNO.4, 415 5 014669 416 5 000516 417 4 972024
999
CROSS MEMBERNO.3, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET REAR EXHAUST MUFFLER
999
BRACKET HEAT SHIELD
999
BRACKET LEFT
999
BRACKET
999
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
999
BRACKET , Replaced By: A6484910041
999
BRACKET LEFT
999
BRACKET LEFT,5 594963
999
BRACKET , Replaced By: A6554922841
999
BRACKET EXHAUST PIPE
999
BRACKET REAR EXHAUST MUFFLER
999
BRACKET , Replaced By: A6554922941
999
BRACKET , Replaced By: A3814921041
999
REAR EXHAUST PIPE REAR,5 557346
999
BRACKET
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE REAR RIGHT,K 094547
