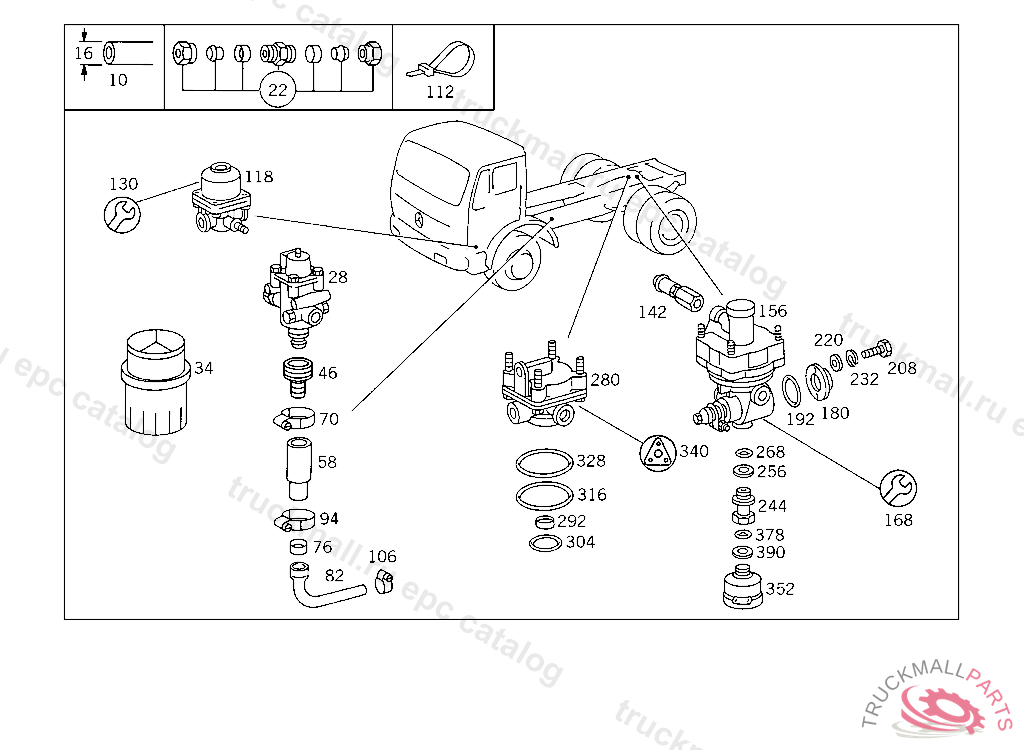

Поз.
Артикул
Описание
10
HOSE , Replaced By: A0009872927
10
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
10
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
22
FITTING (PARTS KIT),LINE RUPTURE
28
PRESSURE REGULATORBOSCH,241, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
28
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034313606
34
MUFFLER VALVE BLEEDING
34
MUFFLER VALVE BLEEDING
34
MUFFLER DEHYDRATOR
34
MUFFLER DEHYDRATOR
46
FITTING PRESSURE REGULATOR,CONNECTION: "30"
58
MUFFLER PRESSURE REGULATOR BREATHING
58
MUFFLER PRESSURE REGULATOR BREATHING
70
CLAMP25-40X13 MM
70
CLAMP25-40X13 MM
70
CLAMP25-40X13 MM
70
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
76
SLEEVE
82
BREATHER PIPE COMPRESSED AIR LINE TO EXHAUST MUFFLER
94
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
94
CLAMP , Replaced By: N000000000667
106
CLAMP PRESSURE REGULATOR
112
LOOM TIE LINE MOUNTING 280 MM
118
VALVE (PRESSURE RATIO VALVE) FRONT AXLE BRAKE PRESSURE, TO BE ADAPTED DURING ASSEMBLY5 297632
130
REPAIR KITTO 002 430 20 81,5 297632
142
TEST CONNECTION
142
TEST CONNECTION
142
TEST CONNECTION
142
TEST CONNECTION
142
TEST CONNECTION
142
TEST CONNECTION
142
TEST CONNECTION
142
TEST CONNECTION
142
TEST CONNECTION
142
TEST CONNECTION
142
TEST CONNECTION
142
TEST CONNECTION
156
BRAKE PRESSURE REGULATOR AUTOMATIC
168
REPAIR KIT BRAKE POWER REGULATOR
168
REPAIR KIT BRAKE POWER REGULATOR WABCO
180
ADAPTER FITTING BRAKE POWER REGULATOR
192
SEALING CORD BRAKE POWER REGULATOR
208
SCREW COVER PLATE TO BRACKET
220
WASHER COMPRESSED AIR LINE TO BRACKET
220
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
232
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
244
CONNECTOR BRAKE POWER REGULATOR
256
THRUST RING CHECK VALVE TO AIR RESERVOIR
256
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
268
O-RING CHECK VALVE TO AIR RESERVOIR
280
VALVE FRONT AXLES I AND II "WABCO"
292
VALVE SEATWABCO
304
SEAL RING42.52X2.62 MM,WABCO
304
SEAL RING , Replaced By: A0179979048
316
SEAL RING82.22X2.62 MM,WABCO
328
SEAL RING74.20X5.70 MM,WABCO
340
REPAIR KIT RELAY VALVE WABCO
352
MUFFLER VALVE BLEEDING
352
MUFFLER BRAKE PRESSURE REGULATOR BREATHING,5 419692
352
MUFFLER VALVE BLEEDING
352
MUFFLER VALVE BLEEDING
352
MUFFLER , Replaced By: A0004302470
352
MUFFLER BRAKE PRESSURE REGULATOR BREATHING,5 419692
352
MUFFLER BRAKE PRESSURE REGULATOR BREATHING,5 419692
352
MUFFLER BRAKE PRESSURE REGULATOR BREATHING,5 419692
352
MUFFLER BRAKE PRESSURE REGULATOR BREATHING,5 419692
352
MUFFLER BRAKE PRESSURE REGULATOR BREATHING,5 419692
352
MUFFLER TRAILER CONTROL VALVE
352
MUFFLER BRAKE PRESSURE REGULATOR BREATHING,5 419692
352
MUFFLER TRAILER CONTROL VALVE
352
MUFFLER , Replaced By: A0004302370
378
O-RING CHECK VALVE TO AIR RESERVOIR
378
O-RING CHECK VALVE TO AIR RESERVOIR
378
O-RING CHECK VALVE TO AIR RESERVOIR
378
O-RING CHECK VALVE TO AIR RESERVOIR
390
THRUST RING CHECK VALVE TO AIR RESERVOIR
390
THRUST RING CHECK VALVE TO AIR RESERVOIR
390
THRUST RING CHECK VALVE TO AIR RESERVOIR
390
THRUST RING CHECK VALVE TO AIR RESERVOIR
390
THRUST RING CHECK VALVE TO AIR RESERVOIR
390
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
CONNECTOR 75 DEGREES
999
TEST CONNECTION
