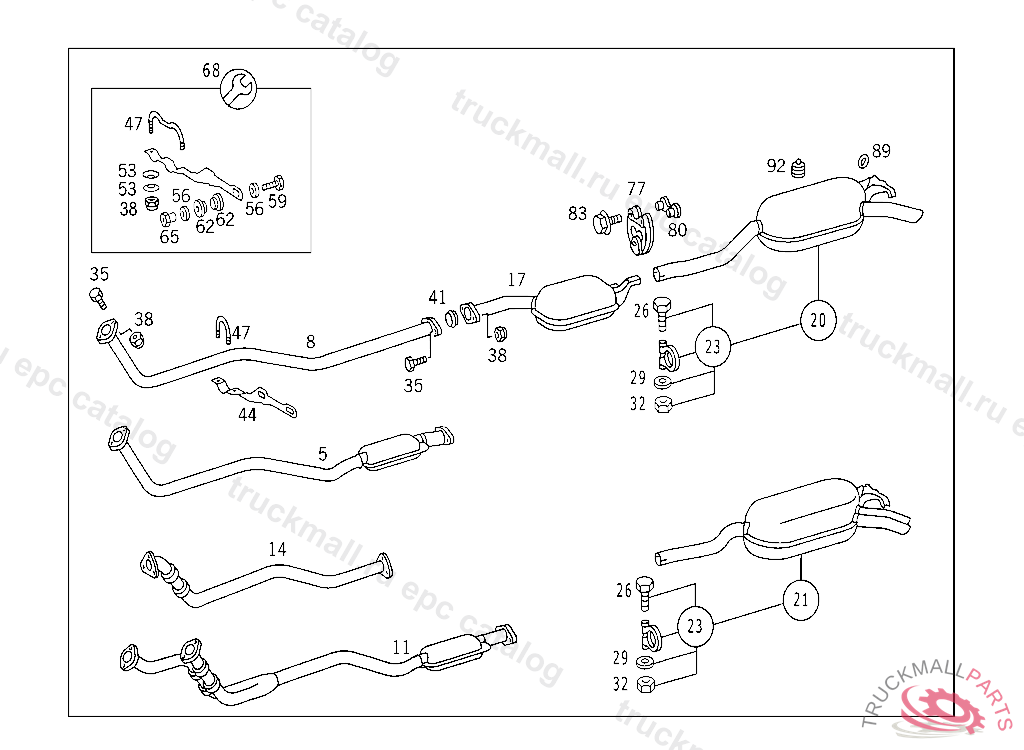

Поз.
Артикул
Описание
5
EXHAUST PIPE FRONT
5
EXHAUST PIPE FRONT
17
MUFFLER CENTRAL
17
EXHAUST MUFFLER WITH PIPE , Replaced By: A1244902621
17
EXHAUST PIPE , Replaced By: A1244911700
20
EXHAUST MUFFLER WITH PIPE , Replaced By: A1244910700
20
MUFFLER REAR
23
CLAMP , Replaced By: A0004900741
23
CLAMP
26
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
29
WASHER BRACKET TO CROSS MEMBER
32
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
35
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
35
SCREW VALVE TO BRACKET M 8X55
38
NUT POWER CYLINDER TO BRACKET
41
SEAL RING , Replaced By: A2024920381
41
SEAL RING
44
BRACKET FRONT EXHAUST PIPE TO TRANSMISSION
44
BRACKET
47
CLAMPING BRACKET EXHAUST PIPE TO BRACKET
53
DISC SPRING FRONT EXHAUST PIPE TO BRACKET, FROM IDENT NO. 941506 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINEP 000001P 050586
56
WASHER HIGH PRESSURE HOSE TO BRACKET
59
SCREW PIPE CLAMP
62
RUBBER RING BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
65
NUT BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
68
REPAIR KIT FRONT EXHAUST PIPE SUSPENSION
77
SUSPENSION RING MAIN MUFFLER SUSPENSION
80
CLAMPING PIECE MAIN MUFFLER SUSPENSION
83
COMBINATION BOLT BRACKET TO EXHAUST MUFFLER
89
DAMPING PAD EXHAUST PIPE SUSPENSION
92
RUBBER BUFFER IN FRONT OF,AND BEHIND,POSTERIOR MUFFLER
