49 EXHAUST SYSTEM
001 EXHAUST SYSTEM IL.1

Mercedes N304017010043 - БОЛТ М10

1420 LS 651.522

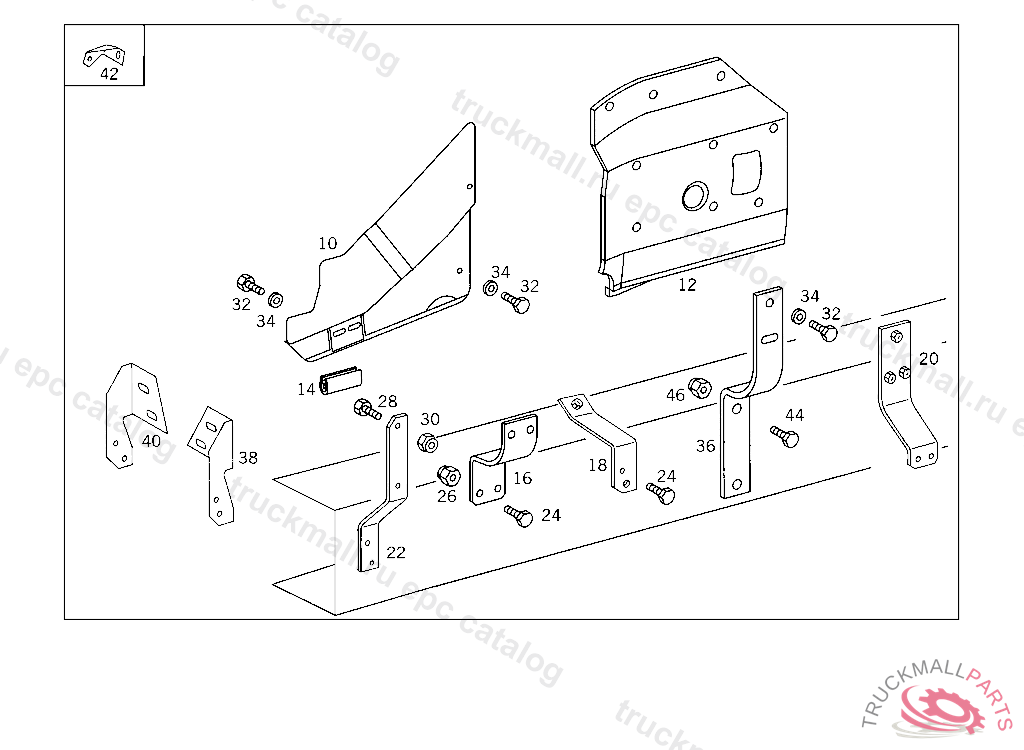

49 EXHAUST SYSTEM - 001 EXHAUST SYSTEM IL.1

Поз.
Артикул
Описание
10
A6525200123
ANTINOISE CAPSULE LEFT FRONT
10
A6515200023
ANTINOISE CAPSULE RIGHT FRONT
10
A6525202424
ANTINOISE CAPSULE RIGHT FRONT
10
A6525200323
ANTINOISE CAPSULE LEFT FRONT
10
A6525200223
ANTINOISE CAPSULE RIGHT FRONT
10
A6525202524
ANTINOISE CAPSULE RIGHT FRONT
10
A6525200423
ANTINOISE CAPSULE RIGHT FRONT
12
A6525200723
ANTINOISE CAPSULE RIGHT CENTRAL
12
A6525209523
ANTINOISE CAPSULE RIGHT CENTRAL
12
A6525200923
ANTINOISE CAPSULE RIGHT CENTRAL
12
A6525203523
ANTINOISE CAPSULE LEFT CENTRAL
12
A6525203623
ANTINOISE CAPSULE RIGHT CENTRAL
12
A6505200023
ANTINOISE CAPSULE LEFT CENTRAL
12
A6525200623
ANTINOISE CAPSULE LEFT CENTRAL
12
A6525200823
ANTINOISE CAPSULE LEFT CENTRAL
12
A6525209423
ANTINOISE CAPSULE LEFT CENTRAL
14
A0019877625
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
16
A6525200741
BRACKET ANTINOISE CAPSULE
18
A6515200041
BRACKET ANTINOISE CAPSULE
20
A6525207041
BRACKET ANTINOISE CAPSULE
22
A6525244040
BRACKET ANTINOISE CAPSULE,K 438353
24
N910142008001
SCREW BRACKET TO BRACKET
24
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
24
N000933008153
SCREW , Replaced By: N304017008034
24
A0019903804
SCREW , Replaced By: N910142008001
26
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
26
A0009906350
NUT BRACKET TO BRACKET
26
N913004008004
NUT , Replaced By: N913004008001
28
N000933010112
SCREW , Replaced By: N304017010043
28
N304017010043
SCREW BRACKET TO CONSOLE
30
N910113010000
NUT STRAP TO BRACKET
30
N913004010008
NUT , Replaced By: N910113010000
32
N000933008147
SCREW , Replaced By: N304017008021
32
N000933008212
SCREW , Replaced By: N304017008016
32
N304017008021
SCREW PIPE CLAMP
32
N304017008016
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
34
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
34
N009021008213
WASHER BRACKET TO LEFT SIDE MEMBER
34
N000125008418
WASHER , Replaced By: N000125008443
34
N009021008205
WASHER , Replaced By: N009021008213
36
A6525243040
BRACKET RIGHT FRONT ANTINOISE CAPSULE
36
A6505240240
BRACKET ANTINOISE CAPSULE TO BRACKET
36
A6555281740
BRACKET ANTINOISE CAPSULE TO BRACKET
36
A6525242940
BRACKET LEFT FRONT ANTINOISE CAPSULE
36
A6525241440
BRACKET ANTINOISE CAPSULE
38
A6525211840
BRACKET LEFT
38
A6525211140
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.K 109856, Replaced By: A6525211840
40
A6525211240
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.K 109856, Replaced By: A6525211940
40
A6525211940
BRACKET RIGHT
42
A6525243240
BRACKET RIGHT
42
A6525243140
BRACKET LEFT
44
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
44
N000961012151
SCREW CONSOLE TO SIDE MEMBER
44
N000961012052
SCREW , Replaced By: N308676012012
44
N000933008153
SCREW , Replaced By: N304017008034
44
N308676012012
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
46
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
46
N913004008004
NUT , Replaced By: N913004008001
46
N910113012002
NUT SUPPORT TO SIDE MEMBER
999
A6525244840
BRACKET RIGHT ANTINOISE CAPSULE
999
A6525244940
BRACKET ANTINOISE CAPSULE,LEFT
999
A6525245040
BRACKET ANTINOISE CAPSULE, TO BE ADAPTED DURING ASSEMBLY
