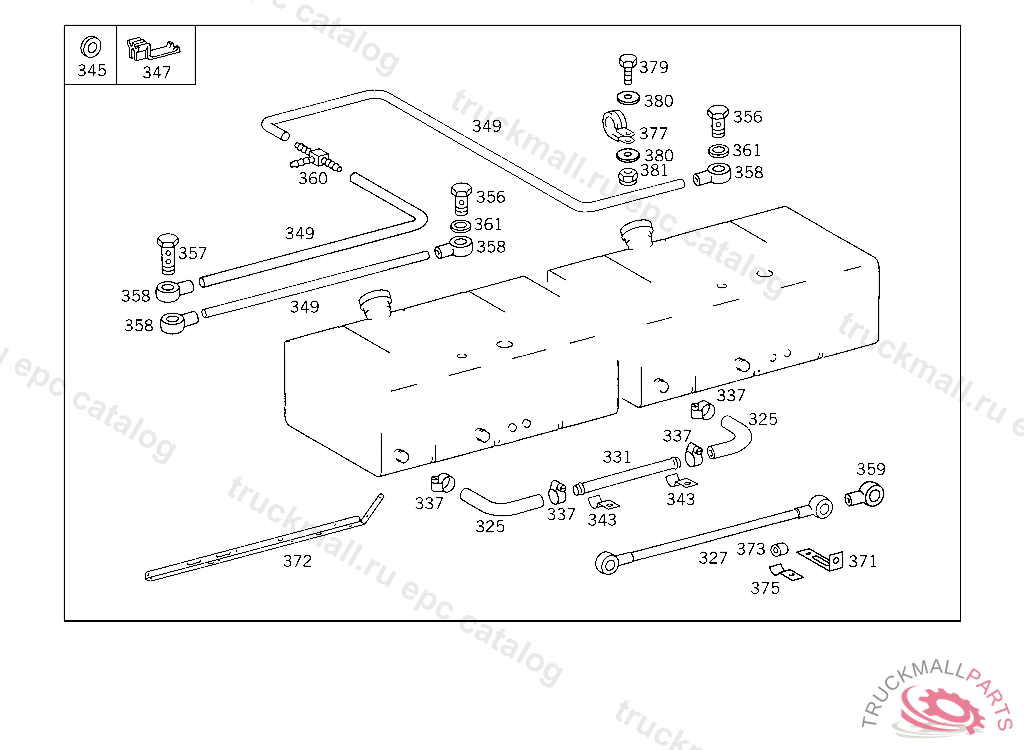

Поз.
Артикул
Описание
325
HOSE FROM FUEL TANK TO FUEL TANK
325
HOSE CONNECTION OF FUEL TANKS
325
HOSE FROM FUEL TANK TO FUEL TANK
327
LINE GAS LINE 10X1,5, LENGTH AVAILABLE 3000 MM REPAIR WORK SUBJECT TO SAFETY CHECK
327
LINE , Replaced By: A0002610283
327
LINE FUEL COMPENSATING
327
OIL PIPE. LINE RETURN LINE TO TRANSMISSION
331
ELBOW FITTING FROM FUEL TANK TO FUEL TANK
331
LINE FROM FUEL TANK TO FUEL TANK
331
LINE FROM FUEL TANK TO FUEL TANK
331
LINE FROM FUEL TANK TO FUEL TANK
331
LINE FROM FUEL TANK TO FUEL TANK
331
LINE FROM FUEL TANK TO FUEL TANK 38X1,5 MM
331
LINE FROM FUEL TANK TO FUEL TANK
331
BANJO UNION. LINE (SUCTION LINE),FROM OIL TANK TO PUMP
331
DISTRIBUTOR FROM FUEL TANK TO FUEL TANK
331
LINE FROM FUEL TANK TO FUEL TANK 38X1,5 MM
331
LINE FROM FUEL TANK TO FUEL TANK
337
CLAMP , Replaced By: N000000000667
337
CLAMP , Replaced By: N000000000671
337
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
337
CLAMP , Replaced By: N000000000670
337
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
343
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
343
CLAMP FUEL LINE TO BRACKET
345
WASHER BRACKET TO LEFT SIDE MEMBER
347
BRACKET TO MOUNT FUEL LINES,K 114273
349
LINE FUEL COMPENSATING
349
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
356
HOLLOW SCREW FUEL LINE TO FEED PUMP
356
HOLLOW SCREW , Replaced By: N915036010108
356
HOLLOW SCREW SUCTION LINE TO OIL PUMP
356
HOLLOW SCREW HEATING CONNECTION
357
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
358
BANJO UNION HEATING CONNECTION,K 169122
359
BANJO UNION FUEL LINE TO FUEL TANK
359
BANJO UNION FUEL LINE TO FUEL TANK
360
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
361
SEAL RING FUEL LINE TO FEED PUMP
361
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
361
SEAL RING
371
BRACKET LINE MOUNTING
372
PROTECTIVE PLATE TO MOUNT FUEL LINES
373
RUBBER PAD FUEL LINE TO BRACKET
375
CLAMP FUEL LINE TO BRACKET
375
CLAMP , Replaced By: A1109950401
377
CLAMP , Replaced By: N000000001045
377
CLAMP FROM FUEL TANK TO FUEL TANK
377
CLAMP , Replaced By: N916016010211
377
CLAMP CABLE HARNESS MOUNTING
379
SCREW PIPE CLAMP
379
SCREW PUMP TO BRACKET
379
SCREW , Replaced By: N304017006016
379
SCREW , Replaced By: N304017008021
380
WASHER , Replaced By: N009021006208
380
WASHER , Replaced By: N009021008213
380
WASHER COMPRESSED AIR LINE TO BRACKET
380
WASHER BRACKET TO LEFT SIDE MEMBER
381
NUT PUMP TO BRACKET
381
NUT , Replaced By: N913004008001
381
NUT , Replaced By: N913004006001
381
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
BRACKET FUEL LINE TO CONSOLE
