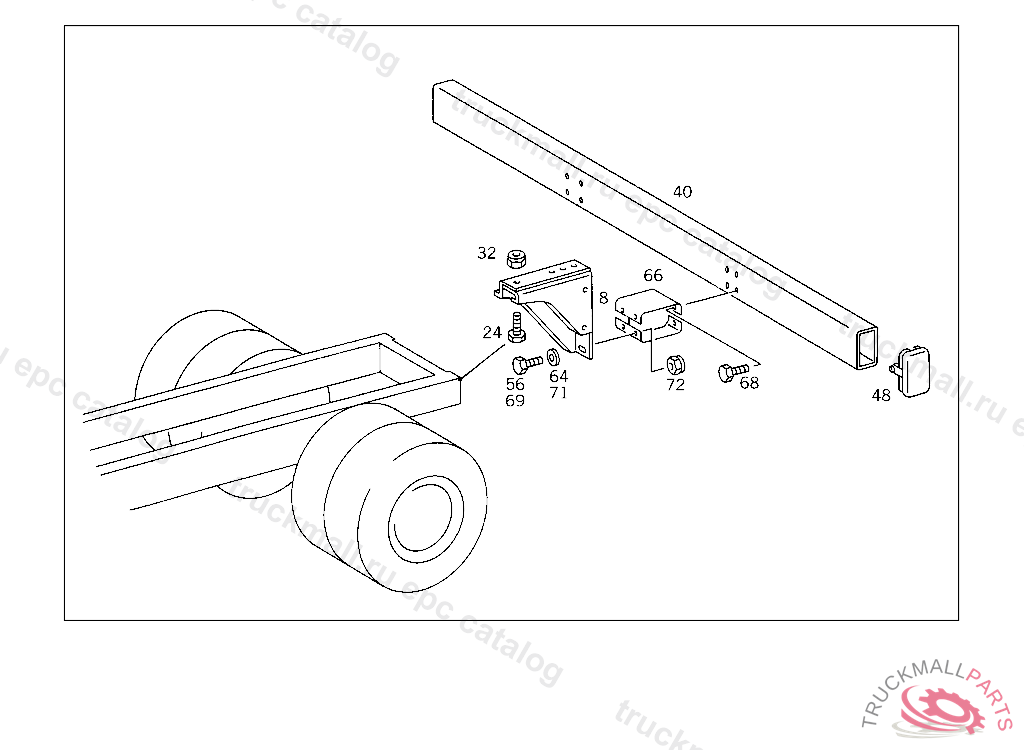

Поз.
Артикул
Описание
8
BRACKET RIGHT
8
BRACKET LEFT
8
BRACKET LEFT
8
BRACKET LEFT
8
BRACKET RIGHT
8
BRACKET RIGHT
24
SCREW SUPPORT TO SIDE MEMBER M 14X1.5X42
24
SCREW APPARATUS SUPPORT TO FRAME
24
SCREW , Replaced By: N308676014008
24
SCREW , Replaced By: A9429901304
24
SCREW MOUNTING TO CONSOLE M 14X35
24
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X48
32
NUT , Replaced By: N910113014000
32
NUT STEERING SUPPORT TO FRAME
40
CROSS MEMBER UNDERRUN PROTECTION
40
CROSS MEMBER , Replaced By: A6525250248, +002A6555250038
40
CROSS MEMBER , Replaced By: A6525250248
48
CAP OVAL TO 652 525 02 48
48
CAP RECTANGULAR TO 615 525 03 48
56
SCREW END PIECE TO EXHAUST PIPE M 10X25
64
WASHER STRUT TO CROSS MEMBER
64
WASHER , Replaced By: N007349010007
66
STAY
66
STAY
66
STAY
68
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
69
SCREW REAR EXHAUST PIPE TO MUFFLER
69
SCREW BRACKET TO SIDE MEMBER
69
SCREW , Replaced By: N304017010002
71
WASHER , Replaced By: N007349010007
71
WASHER STRUT TO CROSS MEMBER
72
NUT STRAP TO BRACKET
72
NUT , Replaced By: N910113010000
999
EXPANSION RIVET UNDERRUN PROTECTION CROSS MEMBER
