Поз.
Артикул
Описание

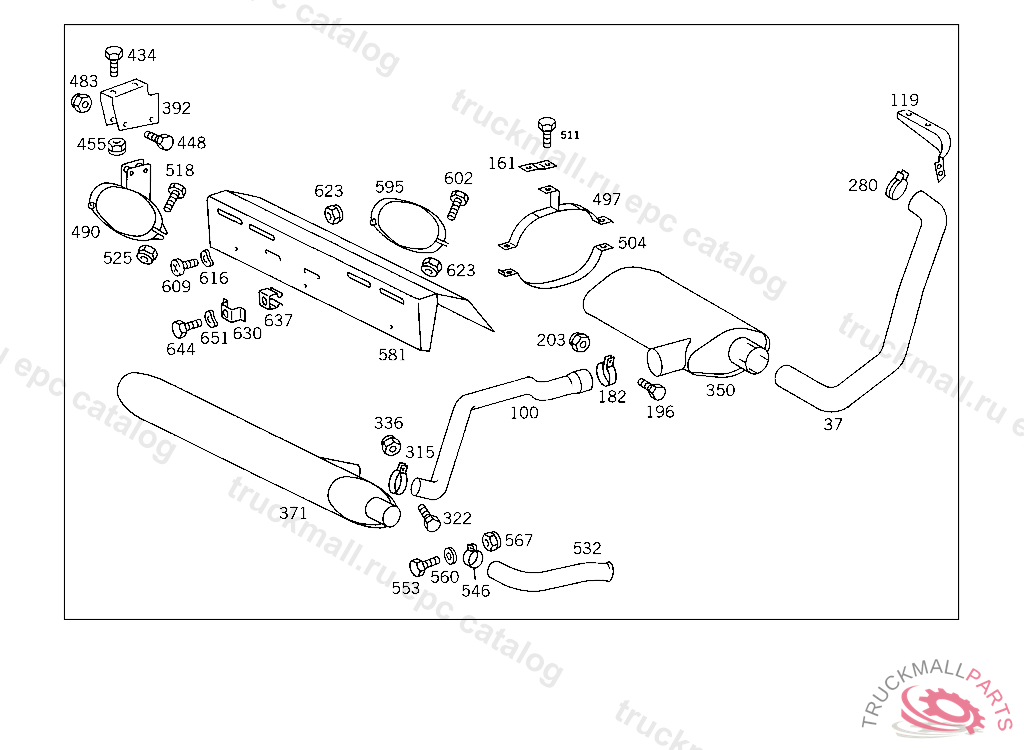

37
EXHAUST PIPE FRONT,5 563962
37
EXHAUST PIPE FRONT,5 597838
37
EXHAUST PIPE FRONT
37
EXHAUST PIPE FRONT,5 597837
37
EXHAUST PIPE FRONT
37
EXHAUST PIPE FRONT,5 563963
100
CONNECTOR FRONT,5 597838
100
CONNECTOR FRONT
119
BRACKET AT CROSS MEMBER
119
BRACKET LEFT
161
BRACKET AT CROSS MEMBER,5 597838
182
CLAMP INTERMEDIATE PIECE
182
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
182
CLAMP , Replaced By: N071555100501
196
SCREW , Replaced By: N304017010002
196
SCREW END PIECE TO EXHAUST PIPE M 10X25
196
SCREW BRACKET TO SIDE MEMBER
203
NUT STRAP TO BRACKET
203
NUT , Replaced By: N910113010000
280
CLAMP EXHAUST PIPE TO BRACKET
315
CLAMP INTERMEDIATE PIECE
315
CLAMP INTERMEDIATE PIECE
315
CLAMP EXHAUST PIPE TO MUFFLER
315
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
315
CLAMP EXHAUST PIPE TO MUFFLER
322
SCREW , Replaced By: N304017008021
322
SCREW , Replaced By: N304014008021
322
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
322
SCREW END PIECE TO EXHAUST PIPE M 10X25
322
SCREW PIPE CLAMP
322
SCREW STRAP TO BRACKET
336
NUT STRAP TO BRACKET
336
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
336
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
336
NUT , Replaced By: N910113010000
336
NUT , Replaced By: N913004008001
350
EXHAUST MUFFLER PRE-MUFFLER
350
EXHAUST MUFFLER PRE-MUFFLER
371
EXHAUST MUFFLER IN FRONT OF FRONT AXLE
371
EXHAUST MUFFLER IN FRONT OF FRONT AXLE
392
BRACKET EXHAUST MUFFLER
434
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
434
SCREW , Replaced By: N304017008027
448
SCREW , Replaced By: N304017010051
448
SCREW
455
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
455
NUT , Replaced By: N913004008001
483
NUT , Replaced By: N910113010000
483
NUT STRAP TO BRACKET
490
STRAP EXHAUST MUFFLER
490
BRACKET (STRAP) EXHAUST MUFFLER
497
STRAP EXHAUST MUFFLER
497
STRAP , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6534900042
497
STRAP EXHAUST MUFFLER
504
STRAP STRAP TO SUPPORT
511
SCREW PIPE CLAMP
511
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
511
SCREW , Replaced By: N304017008021
518
SCREW , Replaced By: N304017010002
518
SCREW BRACKET TO SIDE MEMBER
518
SCREW END PIECE TO EXHAUST PIPE M 10X25
525
NUT STRAP TO BRACKET
525
NUT , Replaced By: N910113010000
532
END PIECE , Replaced By: A6534920114
532
END PIECE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 928917, Replaced By: A6534920114
532
END PIECE TAIL PIPE,K 082900
532
REAR EXHAUST PIPE TAIL PIPE
532
REAR EXHAUST PIPE TAIL PIPE
532
REAR EXHAUST PIPE TAIL PIPE
546
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
546
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
546
CLAMP , Replaced By: N071555100501
546
CLAMP , Replaced By: N071555090502
546
CLAMP EXHAUST PIPE TO MUFFLER
553
SCREW , Replaced By: N304017010002
553
SCREW , Replaced By: N304014008021
553
SCREW BRACKET TO SIDE MEMBER
553
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
560
WASHER EXHAUST MUFFLER TO STRAP
560
WASHER , Replaced By: N000125008443
567
NUT , Replaced By: N910113010000
567
NUT , Replaced By: N913004008001
567
NUT STRAP TO BRACKET
567
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
567
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
581
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER AND LICENSES PLATE
581
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER AND LICENSES PLATE
581
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER AND LICENSES PLATE
581
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER AND LICENSES PLATE
595
CLAMP PROTECTIVE PLATE TO EXHAUST MUFFLER
595
CLAMP PROTECTIVE PLATE TO EXHAUST MUFFLER
595
CLAMP PROTECTIVE PLATE TO EXHAUST MUFFLER
602
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
609
SCREW PROTECTIVE PLATE TO BRACKET
609
BOLT. SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
609
SCREW BRACKET TO CROSS CONNECTION STRUT
609
SCREW , Replaced By: A0029904212
609
SCREW , Replaced By: N304017008034
616
SPRING WASHER , Replaced By: N000137008212
616
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
623
NUT STRAP TO BRACKET
623
NUT , Replaced By: N910113010000
630
BRACKET LICENSE PLATE
637
NUT RETAINER LICENSE PLATE TO BRACKET
637
NUT RETAINER , Replaced By: A0009902291
637
NUT RETAINER , Replaced By: A0019906791
644
SCREW , Replaced By: N304017006020
644
SCREW LICENSE PLATE TO BRACKET
651
SPRING WASHER LICENSE PLATE TO BRACKET
999
PROTECTIVE PLATE LEFT EXHAUST PIPE, REPAIR SOLUTION FOR PENDANT OIL FILTER5 521312
999
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
EXHAUST PIPE
999
CONNECTOR FRONT
999
CONNECTOR FRONT,K 087975
999
BRACKET AT SIDE MEMBER
999
BRACKET FRONT EXHAUST PIPE
999
INTERMEDIATE PIECE FRONT,K 087976
999
EXHAUST PIPE FRONT,K 087976
999
EXHAUST PIPE FRONT,K 087975
999
STRAP EXHAUST MUFFLER
999
CLAMP UPPER EXHAUST PIPE TO BRACKET
999
PROTECTIVE PLATE FUEL TANK
