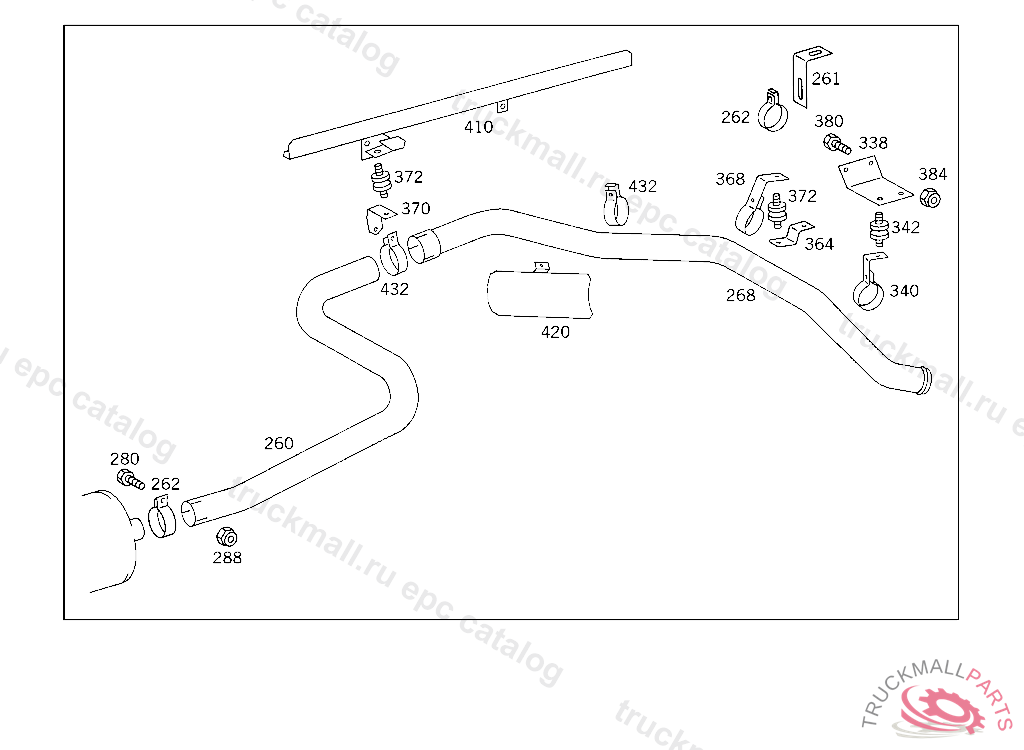

Поз.
Артикул
Описание
260
REAR EXHAUST PIPE REAR EXHAUST PIPE FRONT PART
260
FRONT EXHAUST PIPE REAR EXHAUST PIPE FRONT PART TO REAR PART
260
FRONT EXHAUST PIPE FROM CONNECTOR TO EXHAUST MUFFLER
260
EXHAUST PIPE REAR EXHAUST PIPE FRONT PART
261
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
261
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
262
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
262
CLAMP EXHAUST PIPE
262
SCREW BRACKET TO SIDE MEMBER
262
SCREW , Replaced By: N304017010002
262
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
262
CLAMP , Replaced By: N071555090502
268
END PIECE (TAIL PIPE)
280
SCREW BRACKET TO SIDE MEMBER
280
SCREW , Replaced By: N304017010002
288
NUT STRAP TO BRACKET
288
NUT , Replaced By: N910113010000
338
BRACKET TAIL PIPE TO SIDE MEMBER
340
BRACKET TAIL PIPE TO BRACKET
342
RUBBER BUFFER BRACKET TO SUPPORT
364
BRACKET TAIL PIPE TO CROSS MEMBER, SIMPLE PART-PLEASE HAVE SHOP MADE
368
BRACKET , Replaced By: A6164920141
368
BRACKET EXHAUST PIPE
368
BRACKET TAIL PIPE
370
BRACKET EXHAUST PIPE
372
RUBBER BUFFER BRACKET TO SUPPORT
380
SCREW , Replaced By: N308676012012
380
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
384
NUT SUPPORT TO SIDE MEMBER
410
PROTECTIVE PLATE FRAME,REAR
420
PROTECTIVE PLATE FUEL TANK
420
PROTECTIVE PLATE FUEL TANK
420
PROTECTIVE PLATE FUEL TANK
420
PROTECTIVE PLATE FUEL TANK
432
CLAMP , Replaced By: N071555100501
432
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
432
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
432
CLAMP EXHAUST PIPE
432
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
432
CLAMP , Replaced By: N071555090502
432
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
BRACKET
999
BRACKET TAIL PIPE TO SIDE MEMBER
