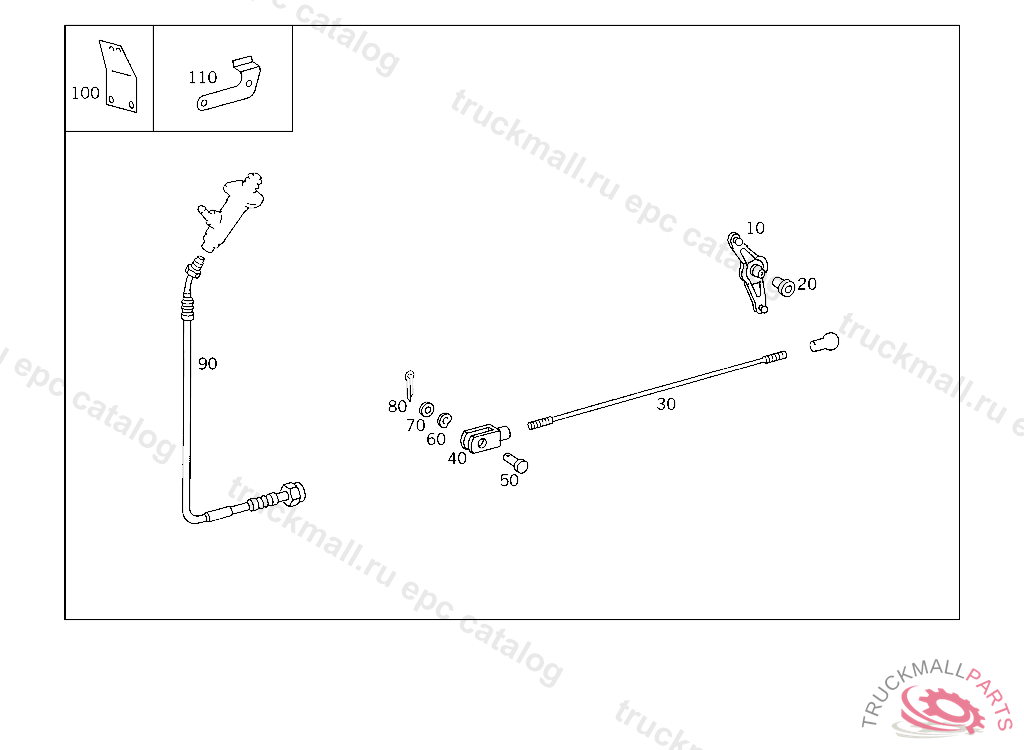

Поз.
Артикул
Описание
10
LEVER (INTERMEDIATE LEVER)
20
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
30
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
30
ROD , Replaced By: N900331008421
40
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
50
PIN ROD TO LEVER
60
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
60
SPRING WASHER , Replaced By: N000137008212
70
WASHER EXHAUST MUFFLER TO STRAP
70
WASHER , Replaced By: N000125008443
80
COTTER PIN PULL ROD
90
LINE FROM MASTER CYLINDER TO PARTITION FITTING 1680 MM,K 130132
100
BRACKET WIRE CABLE TO STEERING OIL TANK BRACKET
110
BRACKET CLUTCH LINE TO SUPPORT
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
999
SCREW PUMP TO BRACKET
999
SECURING CLIP. CIRCLIP
999
SCREW , Replaced By: N304017006016
999
ROD FROM INTERMEDIATE LEVER TO ENGINE CONTROL SHAFT,K 093739
999
ROD FROM INTERMEDIATE LEVER TO ENGINE
999
BRACKET WIRE CABLE TO AIR BAFFLE BRACKET
999
LEVER (INTERMEDIATE LEVER),5 943507
999
LEVER INTERMEDIATE BEARING
999
BALL SOCKET ROD TO BALL PIVOT
