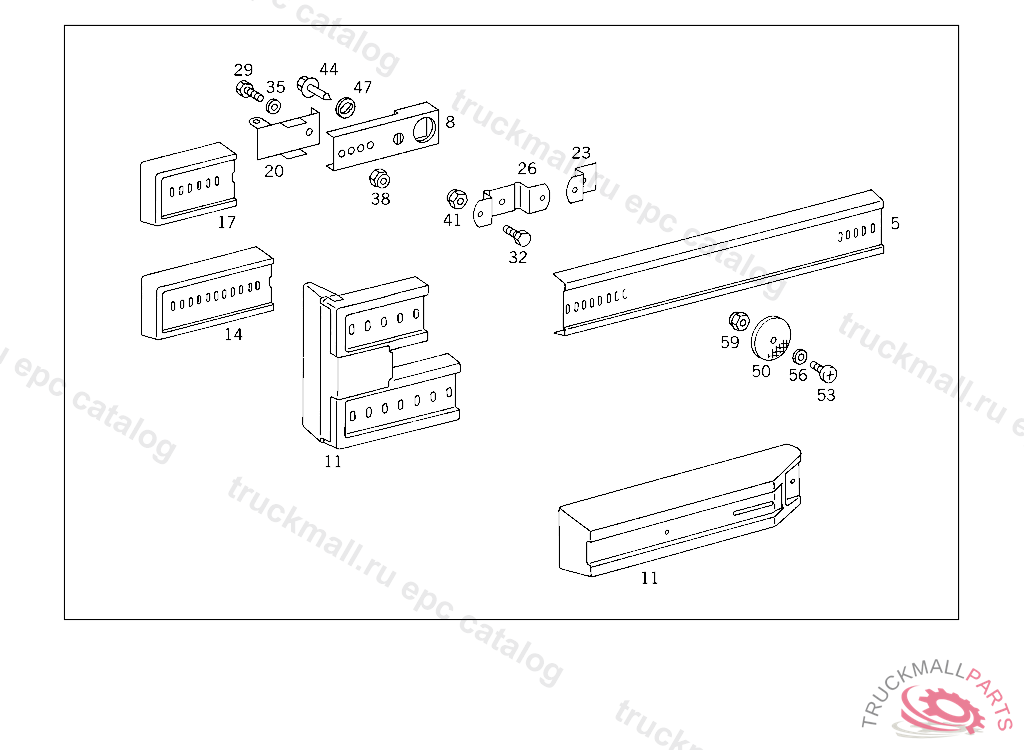

Поз.
Артикул
Описание
5
PROTECTIVE RAIL UNDERRUN PROTECTION,LEFT 4590 MM, TO BE ADAPTED DURING ASSEMBLY
8
RAIL UNDERRUN PROTECTION TO SUPPORT
8
RAIL UNDERRUN PROTECTION TO SUPPORT
8
RAIL UNDERRUN PROTECTION TO SUPPORT
8
RAIL UNDERRUN PROTECTION TO SUPPORT
11
BUMPERETTE UNDERRUN PROTECTION TO SUPPORT
11
BUMPERETTE UNDERRUN PROTECTION TO SUPPORT
14
CAP LEFT AND RIGHT,FRONT AND REAR
17
CAP LEFT AND RIGHT,FRONT AND REAR
17
CAP LEFT AND RIGHT,FRONT AND REAR
20
BRACKET , Replaced By: A6525251540
20
BRACKET UNDERRUN PROTECTION TO SUPPORT
23
BRACKET UNDERRUN PROTECTION
26
BRACKET UNDERRUN PROTECTION
29
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
29
SCREW , Replaced By: N304017008016
29
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
29
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
32
SCREW END PIECE TO EXHAUST PIPE M 10X25
35
WASHER , Replaced By: N000125008443
35
WASHER EXHAUST MUFFLER TO STRAP
35
WASHER EXHAUST MUFFLER TO STRAP
35
WASHER EXHAUST MUFFLER TO STRAP
38
NUT , Replaced By: N913004008001
38
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
38
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
38
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
41
NUT , Replaced By: N910113010000
41
NUT STRAP TO BRACKET
41
NUT BRACKET TO BRACKET
44
LOCKING PIN RAIL TO BODY,K 105999
44
LOCKING PIN RAIL TO BODY,K 105999
44
LOCKING PIN RAIL TO BODY
44
LOCKING PIN RAIL TO BODY,K 106000
44
LOCKING PIN RAIL TO BODY,K 105999
44
LOCKING PIN RAIL TO BODY,K 105999
44
LOCKING PIN RAIL TO BODY,K 105999
44
LOCKING PIN RAIL TO BODY,K 106000
44
LOCKING PIN RAIL TO BODY,K 106000
44
LOCKING PIN RAIL TO BODY,K 105999
44
LOCKING PIN RAIL TO BODY
47
SNAP RING RAIL TO BODY
50
REFLECTOR AMBER
50
REFLECTOR FENDER
53
SCREW HOOK TO BRACKET
56
WASHER , Replaced By: N009021005205
56
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
59
NUT TWO-WAY VALVE TO BRACKET
999
CAP UNDERRUN PROTECTION
999
FASTENER
999
FASTENER ,K 105999
