Поз.
Артикул
Описание

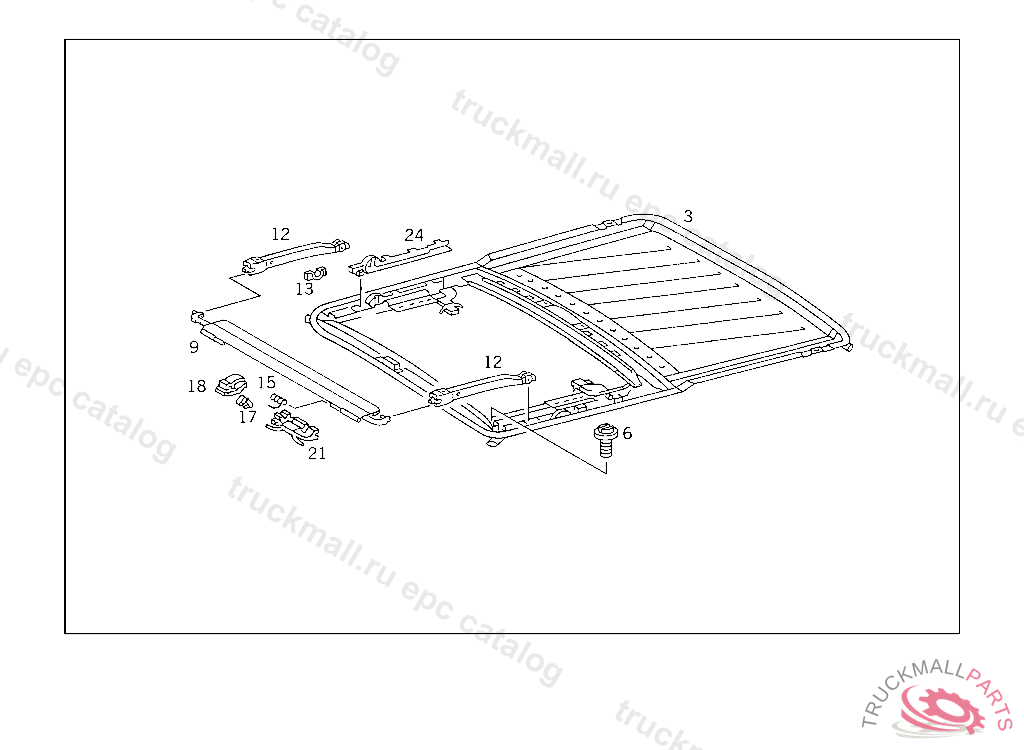

3
FRAME WITH DRAFT DEFLECTOR, DURING ASSEMBLY, BEND THE REAR BOW BRACKETS (4 PIECES) UPWARD
3
FRAME , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. F 024073, Replaced By: A1247802229
6
SCREW BOTTOM FRAME
9
DRAFT DEFLECTOR
9
DRAFT DEFLECTOR ,A 843088, Replaced By: A2017800344, +001A1247820535, +001A1247820635, +002A1247820046
12
LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. B 041042, Replaced By: A1247800138
12
LEVER , Replaced By: A2017800138
12
LEVER RIGHT
12
LEVER RIGHT,A108734
12
LEVER LEFT
12
LEVER LEFT,A108734
13
MOUNTING LATERAL
15
SPRING LEFT
15
SPRING RIGHT
15
SPRING , Replaced By: A1247820635, +001A1247820046
15
SPRING , Replaced By: A1247820535, +001A1247820046
17
STAY
18
MOUNTING CENTRAL
21
MOUNTING FRONT LEFT
21
MOUNTING , Replaced By: A1247840221
21
MOUNTING , Replaced By: A1247840121
21
MOUNTING FRONT RIGHT
24
GUIDE ON FRAME,RIGHT
24
GUIDE ON FRAME,LEFT
