Поз.
Артикул
Описание

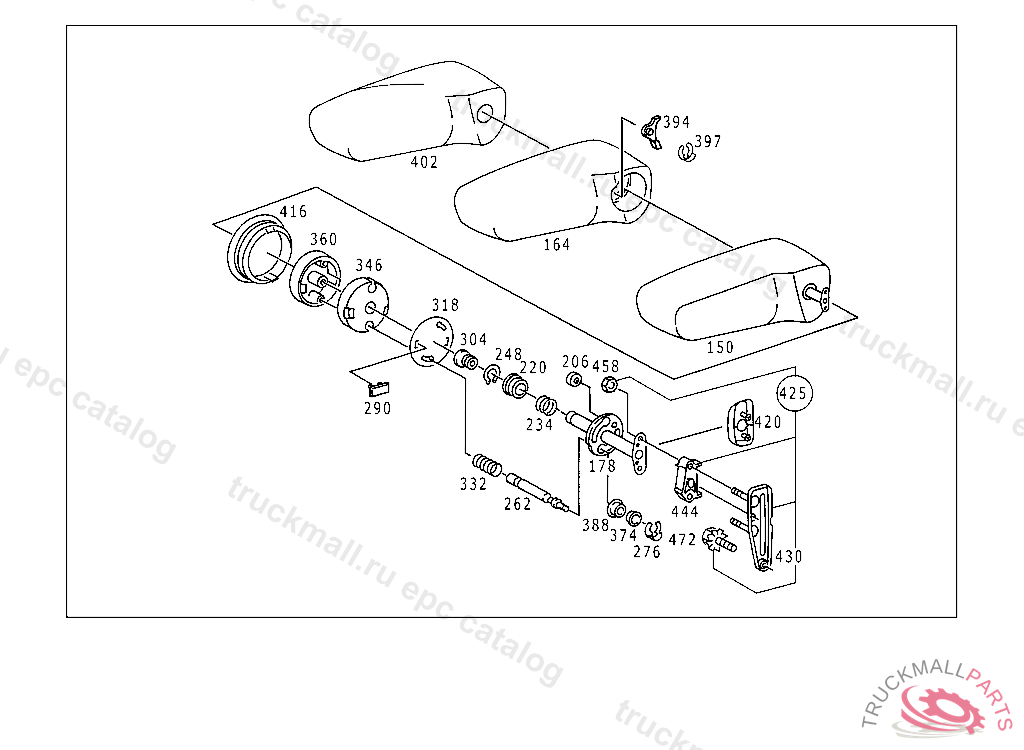

150
FOLDING ARMREST , NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BII
164
FOLDING ARMREST ,A 608857,F 055236
164
FOLDING ARMREST
178
SUPPORT ,F 055237
178
SUPPORT ,A 608857,F 055236
206
ROLLER
220
BUSHING
220
BUSHING ,F 055237
234
SPRING ,F 055237
234
SPRING
248
LOCK RING BEARING BRACKET,4 972621
248
LOCK RING
262
PIN
276
LOCK HOSE FASTENING
290
RUBBER BUFFER USED WITH IMITATION LEATHER TRIM, 123 297292 EXCEPT FOR 306113-347407 133 002319 EXCEPT FOR 004116-012658
304
RUBBER BUFFER
318
PLATE
318
PLATE , A 233177 F 006123
332
SPRING USED WITH LEATHER AND VELOURS TRIM, 123 297292 133 002319
346
INSERT USED WITH IMITATION LEATHER TRIM, 123 297292 EXCEPT FOR 306113-347407 133 002319 EXCEPT FOR 004116-012658
360
CAP USED WITH IMITATION LEATHER TRIM, 123 297292 EXCEPT FOR 306113-347407 133 002319 EXCEPT FOR 004116-012658
374
BUSHING USED WITH LEATHER AND VELOURS TRIM, 123 297292 133 002319
388
BUSHING USED WITH LEATHER AND VELOURS TRIM, 123 297292 133 002319
394
LEVER , A 608858 F 055237
397
LOCK ROD TO CONTROL LEVER
402
COVER , NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BII
416
RUBBER RING
420
COVERING ,NO.9051I NO.5076I NO.8316I NO.8326I NO.8412I NO.6122I NO.3112I NO.7101I
425
MOUNTING MATERIAL RANGE OF DELIVERY OF MOUNTING MATERIAL FOR SUBSEQUENT INSTALLATION, ORDER ADDITIONALLY: FOR COLOR-CODED PARTS,SEE SA 56527,1X 124 973 00 89
430
PLATE ARMREST TO BACKREST
444
SPACER ARMREST TO BACKREST
458
NUT
458
NUT , Replaced By: N304032008006
472
SCREW SEAT MOUNTING,FRONT M8
