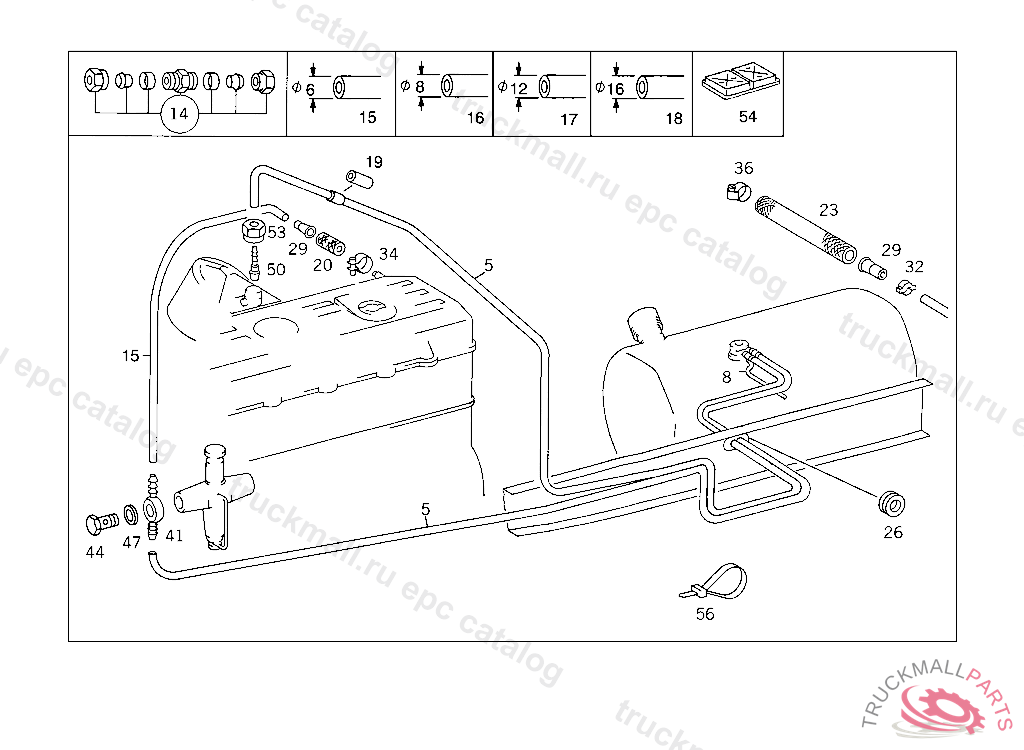

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
14
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
14
FITTING (PARTS KIT),LINE RUPTURE
15
PLASTIC PIPE RISING PIPE 4X6 MM
15
PLASTIC PIPE RISING PIPE 4X6 MM
15
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
16
PLASTIC PIPE AERATION, ORDER BY THE METER
17
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
18
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
19
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
20
HOSE LEAK LINE, ORDER BY THE METER
23
HOSE LEAK LINE
26
GROMMET FOR PASSAGE OF LINE
29
SLEEVE FEED
29
SLEEVE LEAK LINE
32
CLIP LEAK LINE
34
CLAMP LINE MOUNTING
36
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
36
CLAMP , Replaced By: N000000000665
41
BANJO UNION FEED
44
HOLLOW SCREW FUEL LINE TO FEED PUMP
44
HOLLOW SCREW , Replaced By: N915036010108
47
SEAL RING FUEL LINE TO FEED PUMP
50
FITTING RETURN
53
UNION NUT RETURN
54
PLATE CABLE HARNESS MOUNTING
56
LOOM TIE LINE MOUNTING
56
LOOM TIE LINE MOUNTING 280 MM
