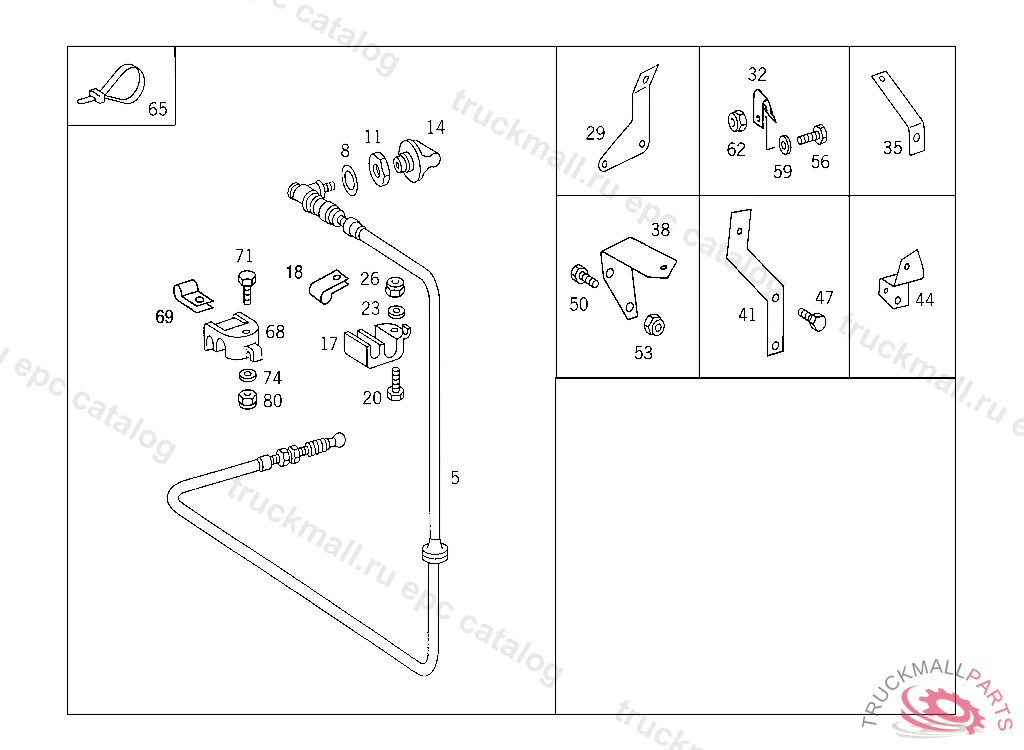

Поз.
Артикул
Описание
5
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
5
WIRE CABLE MANUAL CONTROL, REPAIR IMPOSSIBLE
8
FITTED WASHER WIRE CABLE TO INSTRUMENT PANEL
11
NUT WIRE CABLE TO INSTRUMENT PANEL
14
KNOB IDLING ADJUSTMENT
17
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
18
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
18
CLAMP ,K 147121, Replaced By: N000000000319
20
SCREW , Replaced By: N000000001149
20
SCREW , Replaced By: A0029903712
20
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
23
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
23
WASHER COMPRESSED AIR LINE TO BRACKET
26
NUT , Replaced By: N913004006001
26
NUT PUMP TO BRACKET
29
BRACKET WIRE CABLE TO STEERING OIL TANK BRACKET
32
BRACKET , Replaced By: A6523010240
32
BRACKET WIRE CABLE TO FRAME SIDE MEMBER
35
BRACKET WIRE CABLE TO STEERING OIL TANK BRACKET
35
BRACKET WIRE CABLE TO AIR BAFFLE BRACKET
38
BRACKET WIRE CABLE TO BRACKET
41
BRACKET WIRE CABLE TO STEERING OIL TANK BRACKET
44
BRACKET WIRE CABLE TO HYDRAULIC LINE BRACKET
47
SCREW CENTRAL LOCK TO CAB M 10X16
50
SCREW END PIECE TO EXHAUST PIPE M 10X25
53
NUT STRAP TO BRACKET
53
NUT , Replaced By: N910113010000
56
SCREW , Replaced By: N304017006016
56
SCREW LICENSE PLATE TO BRACKET
56
SCREW PUMP TO BRACKET
59
WASHER COMPRESSED AIR LINE TO BRACKET
62
NUT , Replaced By: N913004006001
62
NUT PUMP TO BRACKET
65
LOOM TIE LINE MOUNTING 280 MM
65
LOOM TIE LINE MOUNTING
68
CLAMPING PIECE IDLING ADJUSTMENT WIRE CABLE
69
CLAMP ,K 147121, Replaced By: N000000000319
69
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
71
SCREW , Replaced By: N000000001149
71
SCREW , Replaced By: A0029903712
71
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
74
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
74
WASHER COMPRESSED AIR LINE TO BRACKET
80
NUT , Replaced By: N913004006001
80
NUT PUMP TO BRACKET
