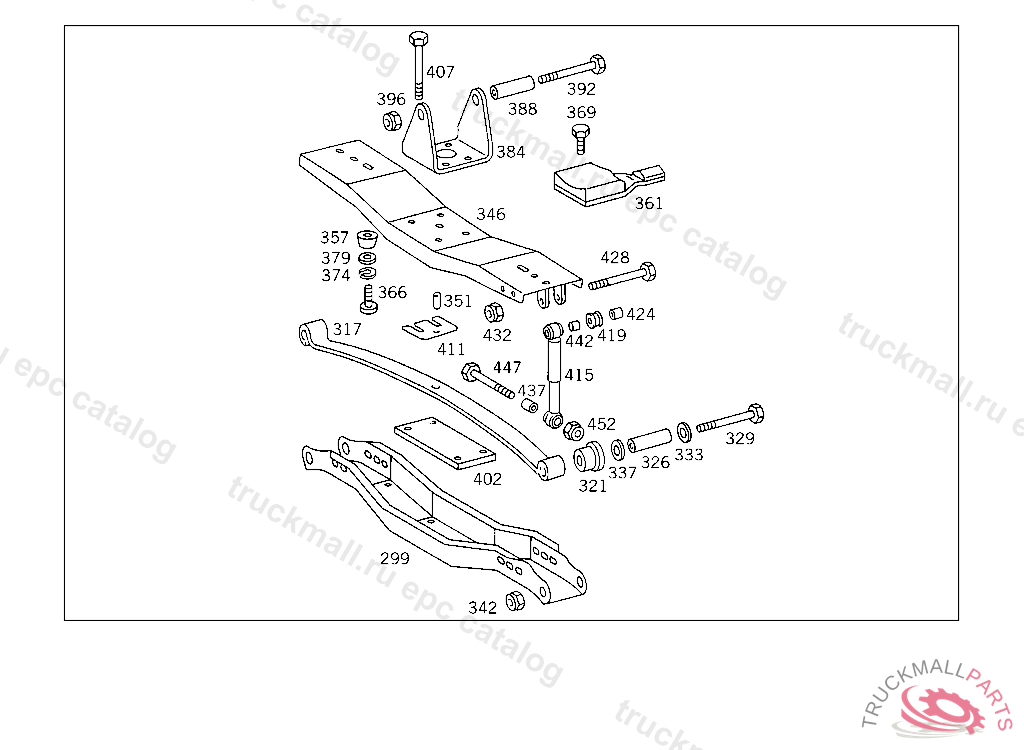

Поз.
Артикул
Описание
299
STRUT CAB MOUNTING,REAR (LEAF SPRING SUSPENSION)
299
STRUT , Replaced By: A6558910224, +002A6558910118
317
SPRING (LEAF SPRING),CAB SUSPENSION
317
SPRING CAB SUSPENSION,REAR
321
BUSHING LEAF SPRING
326
TUBE LEAF SPRING, TO BE ADAPTED DURING ASSEMBLY
329
SCREW LEAF SPRING TO STRUT
333
WASHER LEAF SPRING TO STRUT
337
WASHER LEAF SPRING TO STRUT, DISCONTINUED,PART IS NO LONGER REQUIRED
342
NUT SUPPORT TO SIDE MEMBER
346
RAIL CAB SUSPENSION,REAR
346
RAIL , Replaced By: A6558900322
351
CYLINDRICAL PIN
357
BUFFER RAIL STOP
361
MOUNTING CAB SUSPENSION,REAR
366
SCREW BUFFER AND MOUNTING TO RAIL M 8X20
369
SCREW PIPE CLAMP
369
SCREW , Replaced By: N304017008021
374
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
379
WASHER EXHAUST MUFFLER TO STRAP
379
WASHER , Replaced By: N000125008443
384
MOUNTING CAB LOCKING MECHANISM
388
SPACER TUBE BEARING BRACKET
392
SCREW SPACER TUBE TO MOUNTING
392
SCREW , Replaced By: N000960016251
396
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
396
NUT COMBINATION CYLINDER TO BEARING BRACKET
402
PLATE MOUNTING AND RAIL TO LEAF SPRING
407
SCREW MOUNTING AND RAIL TO LEAF SPRING
411
BASE MOUNTING AND RAIL TO LEAF SPRING
415
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
419
RUBBER MOUNTING
424
BUSHING
428
SCREW VIBRATION ABSORBER TO CONSOLE
428
SCREW , Replaced By: N000960018072
432
NUT , Replaced By: N910113018004
432
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
437
SPACER TUBE SHOCK ABSORBER TO RAIL
442
SPACER TUBE SHOCK ABSORBER TO RAIL
442
SPACER TUBE MOUNTING TO CONSOLE
447
SCREW VIBRATION ABSORBER TO CONNECTOR
452
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
452
NUT , Replaced By: N910113018004
999
RIVET BUSHING AND LEVER TO CAB
999
REPAIR KIT , Replaced By: A3879920003, +002A6208910017, +001A3638910023
999
BUSHING TILTING LEVER
999
PIN LEVER
