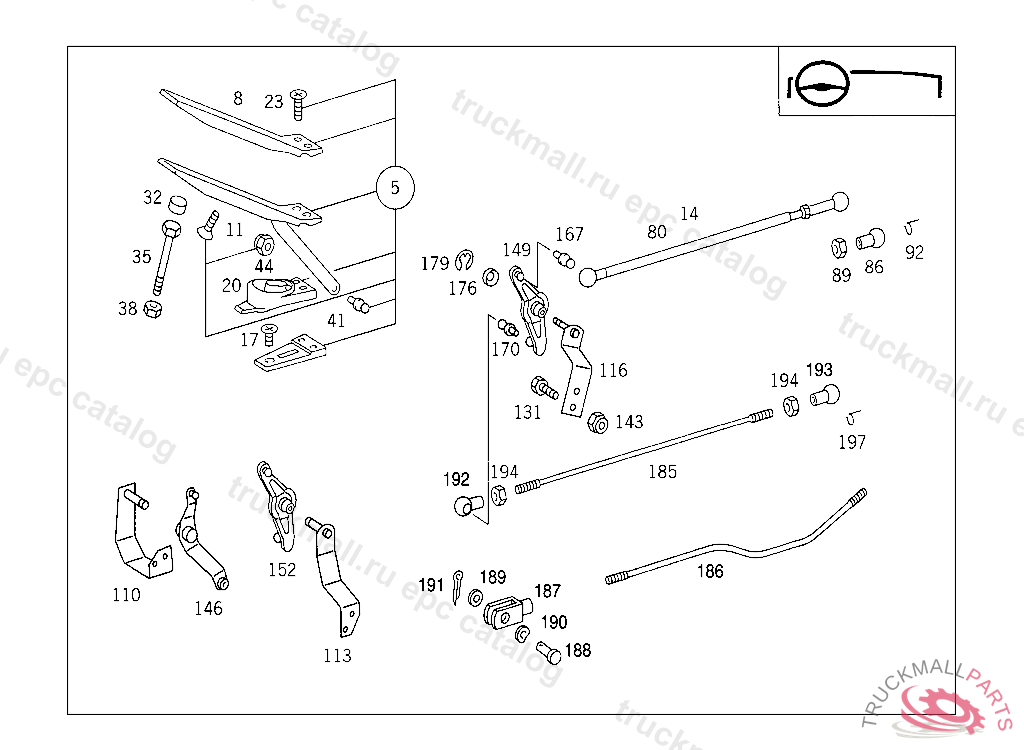

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
32
STOP ACCELERATOR PEDAL
35
SCREW VALVE TO BRACKET
35
SCREW VALVE TO BRACKET, Replaced By: N304014008002
38
NUT
41
BALL PIVOT LOAD SENSOR
44
NUT PUMP TO BRACKET
44
NUT , Replaced By: N913004006001
80
ROD LOAD SENSOR CONTROL
86
BALL SOCKET PULL ROD TO LEVER
89
NUT BALL PIVOT TO LEVER
92
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
113
BEARING BRACKET INTERMEDIATE BEARING
131
SCREW BRACKET TO CROSS CONNECTION STRUT
152
LEVER INTERMEDIATE BEARING
167
BALL STUD. BALL PIVOT TOP B10X4,5 MM
170
BALL PIVOT BOTTOM B13X5 MM
176
COVERING INTERMEDIATE BEARING
179
LOCK PLATE INTERMEDIATE BEARING
185
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
185
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
192
BALL SOCKET ROD TO BALL PIVOT
193
BALL SOCKET ROD TO BALL PIVOT
194
NUT
197
SECURING CLIP. CIRCLIP
