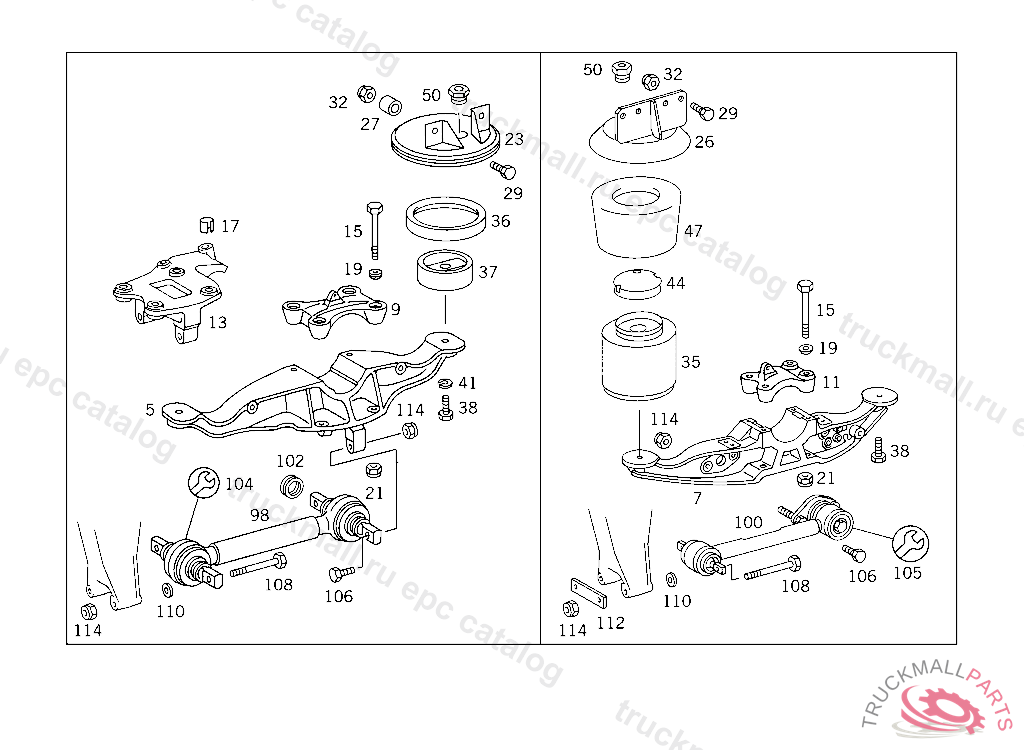

Поз.
Артикул
Описание
5
SUPPORT AIR SPRING BELLOWS,RIGHT,5 554755
5
SUPPORT , Replaced By: A6553280941, +001A6553280841
5
SUPPORT , Replaced By: A6553280841, +001A6553280941
5
SUPPORT ,5 009667, Replaced By: A6203280041
5
SUPPORT , Replaced By: A6553280141, +002A6553260064, +002A6553260581, +002N000960016277, +002N000960020032, +002N000960020040, +002N000961016081
5
SUPPORT AIR SPRING BELLOWS,LEFT,5 554755
9
PLATE AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
9
PLATE AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
15
SCREW AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE M 24X1.5X280
15
SCREW , Replaced By: A0079907501
17
CLAMPING SLEEVE AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE,5 554754
19
SPHERICAL WASHER AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
21
NUT AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
23
PLATE CENTRAL BEARING
23
PLATE FRAME
23
PLATE AIR SPRING BELLOWS
23
PLATE , Replaced By: A6553201835
23
PLATE , Replaced By: A6553201735
23
PLATE PLATE TO CENTRAL BEARING
27
SPACER TUBE BEARING BRACKET TO SIDE MEMBER
27
SPACER TUBE
29
SCREW PLATE TO CENTRAL BEARING
29
SCREW CONSOLE TO SIDE MEMBER
32
NUT SUPPORT TO SIDE MEMBER
32
NUT TORSION BAR TO BEARING BRACKET,5 904661
35
PISTON PNEUMATIC SUSPENSION,K 103333
36
SUPPORTING RING PISTON,TOP
36
SUPPORTING RING , Replaced By: A6523280009
37
SHIM PISTON TO AIR-SPRING-BELLOWS SUPPORT
38
SCREW CONSOLE TO FRAME
38
SCREW , Replaced By: N308676016020
44
RUBBER BUFFER (RUBBER STOP),EMERGENCY RUNNING,K 017385
47
AIR SPRING BELLOWS FRONT AXLE PNEUMATIC SUSPENSION
47
AIR SPRING BELLOWS FRONT AXLE PNEUMATIC SUSPENSION
50
SCREW. UNION SCREW LINE CONNECTION
50
SCREW. UNION SCREW , Replaced By: A0009973734
98
CONTROL ARM , Replaced By: A6553500306
98
CONTROL ARM BOTTOM
102
BOOT
104
REPAIR KIT WITH DOUBLE BALL STUD TO 652 350 03 06, 653 350 06 06
104
REPAIR KIT. JOINT WITH BALL PIVOT
106
SCREW , Replaced By: N308765020012
106
SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
106
SCREW UPPER CONTROL ARM M20X1,5X85
108
SCREW LINK TO CENTRAL BEARING
110
WASHER HYDRAULIC CYLINDER TO SWIVEL ARM
110
SPACER WASHER AS REQUIRED 2.00 MM
110
SPACER WASHER AS REQUIRED 0.50 MM
114
NUT , Replaced By: N913004020003
114
NUT CROSS MEMBER TO REINFORCEMENT
